Address Bus: The Unidirectional Highway of Your Computer
1. What is a Bus? The Computer's Communication System
Imagine a big city. For the city to work, cars, trucks, and people need roads to move from one place to another. Inside your computer, information travels on similar "roads" called buses. A bus is a collection of wires that connects different parts of the computer, like the CPU (the brain), the memory (where data is stored), and input/output devices (like your keyboard or printer). These wires carry electrical signals that represent bits (0s and 1s). In a typical system, there are three main types of buses: the data bus, the control bus, and the star of our article—the address bus.
2. Unidirectional vs. Bidirectional: The One-Way Street

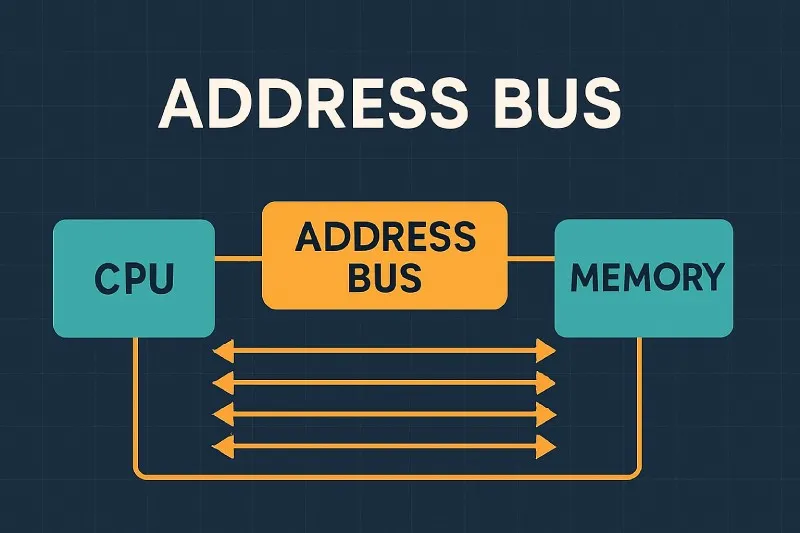

The most important feature of the address bus is that it is unidirectional. The word "uni" means one, and "directional" means direction. So, a unidirectional bus sends signals in only one direction: from the CPU to memory or from the CPU to I/O devices. Think of it as a one-way street leaving the CPU. The CPU uses this bus to shout out the location (address) it wants to talk to. It never receives information back on this bus. This is different from the data bus, which is bidirectional (a two-way street) and carries the actual data back and forth.
3. How the Address Bus Finds Its Way: Addressing Memory
Every byte of memory in your computer has a unique number, like a house address on a long street. These numbers start at 0 and go up to the maximum amount of memory. When the CPU needs to read a specific piece of data, it first places the address of that data onto the address bus. The memory controller hardware listens to the address bus, and when it sees its "address," it prepares to either send the data back to the CPU (on the data bus) or receive data from the CPU to store.
For example, if the CPU wants to read what is stored at memory location 42, it sends the binary equivalent of the number 42 (which is 101010) over the address bus. This signal travels to the memory, telling it, "I want the data from house number 42." The memory then fetches the data and places it on the data bus for the CPU to pick up.
4. Bus Width: How Much Memory Can We Address?
The address bus is not just one wire; it's a bundle of wires. The number of wires in the address bus is called its width. This width is crucial because it determines how many unique memory locations the CPU can address. Each wire can carry one bit (0 or 1). If an address bus has n wires, it can represent 2^n different addresses. This is because each wire combination creates a unique binary number.
Let's look at some real-world examples. The famous Intel 8080 processor had a 16-bit address bus. This means it could address 2^16 = 65,536 memory locations (which equals 64 Kilobytes). Later processors, like the 80386, had a 32-bit address bus, allowing them to address 2^32 = 4,294,967,296 locations (4 Gigabytes). Modern 64-bit processors can theoretically address a massive 2^64 bytes, which is 16 Exabytes—an almost unimaginable amount of memory!
| Address Bus Width (n) | Formula for Addressable Locations | Total Memory (Bytes) | Common Name |
|---|---|---|---|
| 8 | $2^8$ | 256 | - |
| 16 | $2^16$ | 65,536 | 64 KB |
| 20 | $2^20$ | 1,048,576 | 1 MB |
| 32 | $2^32$ | 4,294,967,296 | 4 GB |
| 64 | $2^64$ | ≈ 1.84 × 10^19 | 16 EB (Exabytes) |
5. Practical Example: Reading a Byte from Memory
Let's walk through a simple example step-by-step to see the address bus in action. Imagine a simple computer with a 4-bit address bus (so it can address 16 memory locations, from 0 to 15). The CPU needs to read the byte stored at address 1011 (which is the binary for the decimal number 11).
Step 1: CPU Request – The CPU places the address 1011 onto its address bus pins. This means it sends a high voltage (representing a '1') on the first and third wires (from the left), and a low voltage (representing a '0') on the second and fourth wires.
Step 2: Address Decoding – The signal travels to the memory chip. The memory chip has a circuit called an address decoder. This circuit looks at the pattern on the address bus. When it sees the pattern 1011, it "selects" the specific memory cell (or row) that corresponds to that address.
Step 3: Data Retrieval – Once the correct memory location is selected, the data stored there (let's say the number 0110) is released and placed onto the data bus. The address bus has done its job: it carried the address 1011 one-way from the CPU to the memory. Now the data bus takes over to carry the data back.
Step 4: I/O Devices – The same principle applies to I/O devices. If the CPU wants to send a command to a printer, it will place the printer's specific address on the address bus. The printer recognizes its own address, receives the command (via the data bus), and executes it. The address bus never brings information back from the printer.
6. Important Questions About the Address Bus
The address bus is designed to be unidirectional for simplicity and speed. The CPU is the only component that initiates a memory or I/O operation. Memory and devices are slaves to the CPU's commands; they never initiate a conversation or request data from another device by sending an address. Making the bus one-way reduces complexity, as no arbitration logic is needed to decide who gets to send an address at any given time. The CPU is the sole master of the address bus.
This situation can cause a system error. If the CPU places an address on the bus that no memory chip or I/O device recognizes, the hardware might not respond. In many systems, this leads to a "bus error" or a "segmentation fault." The operating system detects that no device acknowledged the address, and it typically stops the program that caused the error to prevent the computer from crashing.
Not necessarily. The term "32-bit processor" usually refers to the width of its data bus or its general-purpose registers. While they are often related, a processor can have an address bus width different from its data bus width. For example, early 8-bit processors like the Intel 8080 (with an 8-bit data bus) had a 16-bit address bus. They could handle 8 bits of data at a time but could find their way to 65,536 different memory locations. The address bus width specifically dictates the memory addressing capacity.
Conclusion: The Quiet Director of Data Flow
Footnote: Key Terms Explained
[1] Unidirectional: A type of signal flow that moves in only one direction. In computing, this means data or addresses travel from a source to a destination, but not back along the same path.
[2] I/O Devices: Input/Output devices are hardware components used to communicate with the computer. Examples include keyboards (input), monitors (output), and USB drives (both).
[3] CPU: Central Processing Unit. The "brain" of the computer that executes instructions.
[4] Bus Width: The number of parallel wires or lines in a bus, which determines how much data (data bus) or how many addresses (address bus) can be transmitted at once.
