Heat Conductors: The Invisible Highways of Thermal Energy
The Science of Heat Flow: What Makes a Good Conductor?

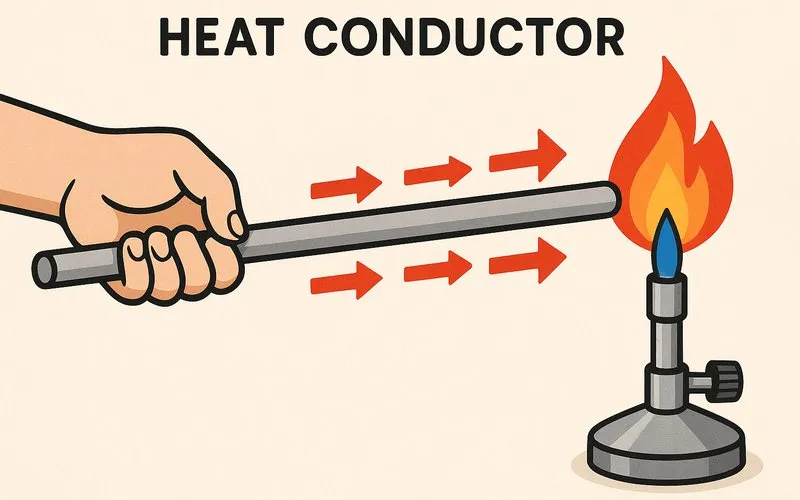

Heat is a form of energy related to the motion of particles. In any material, atoms and molecules are constantly vibrating. The higher the temperature, the more vigorous these vibrations become. Heat transfer by conduction occurs when this vibrational energy is passed from one particle to its neighbors. Imagine a line of people standing shoulder to shoulder. If the person at one end starts pushing, that push travels through the line as each person bumps into the next. This is similar to how heat travels through a solid conductor.
Scientists measure a material's ability to conduct heat using its thermal conductivity, represented by the symbol $ k $. A high $ k $ value means the material is a good conductor. The formula for the rate of heat conduction (Q/t) is:
$ \frac{Q}{t} = k \times A \times \frac{(T_{hot} - T_{cold})}{d} $
Where:
- $ Q/t $ is the heat flow rate (energy per second, in Joules/second or Watts).
- $ k $ is the thermal conductivity (W/m·K).
- $ A $ is the cross-sectional area (m²).
- $ (T_{hot} - T_{cold}) $ is the temperature difference (Kelvin or Celsius).
- $ d $ is the thickness of the material (m).
Good conductors, like metals, have two key features that facilitate this energy transfer:
- Free Electrons: Metals have a "sea" of electrons that are not bound to any particular atom. These free electrons can move rapidly throughout the metal lattice, carrying thermal energy with them over long distances. This is the primary reason for the high thermal conductivity of metals.
- Ordered Atomic Structure: The atoms in metals are arranged in a regular, crystalline lattice. This orderly structure allows vibrations (phonons) to travel efficiently from atom to atom.
In contrast, materials like wood or plastic lack free electrons and have a disordered structure, making them poor conductors, or good insulators.
A Spectrum of Conductivity: From Superconductors to Super Insulators
Not all conductors are created equal. Materials can be ranked by their thermal conductivity. This table shows how common materials compare.
| Material | Thermal Conductivity (k) in W/m·K | Classification & Common Use |
|---|---|---|
| Diamond | ~2200 | Excellent Conductor; used in high-performance electronics cooling. |
| Silver (Ag) | ~430 | Best metallic conductor; used in specialized electrical contacts. |
| Copper (Cu) | ~400 | Very Good Conductor; most common in cookware and electrical wiring. |
| Aluminum (Al) | ~235 | Good Conductor; lightweight, used in heat sinks and soda cans. |
| Iron (Fe) | ~80 | Moderate Conductor; used in cast iron skillets and engine blocks. |
| Water (H₂O) | ~0.6 | Poor Conductor (compared to metals); but used as a coolant in cars. |
| Wood (Oak) | ~0.17 | Thermal Insulator; used for pot handles and building materials. |
| Air | ~0.026 | Excellent Insulator; trapped in materials like foam or wool for insulation. |
Heat Conductors in Action: From Your Kitchen to Outer Space
The principles of thermal conduction are not just abstract science; they are at work all around us. Engineers and designers carefully select materials based on whether they need to encourage or prevent heat flow.
Example 1: The Art of Cooking
A metal pot is a perfect example. The stove burner heats the bottom of the pot. Because metal is an excellent conductor, this heat energy quickly spreads across the entire bottom and up the sides. This even distribution of heat is essential for cooking food uniformly. Conversely, the handle is made of plastic or wood, which are good insulators. This prevents the heat from the pot from traveling to your hand, allowing you to hold it safely.
Example 2: Keeping Electronics Cool
Inside your computer, smartphone, or gaming console, tiny components called processors do all the thinking. This work generates a lot of heat. If this heat isn't removed, the processor can be damaged. This is where a heat sink comes in. A heat sink is a piece of metal, usually aluminum or copper, with many fins. It is attached to the processor. The heat sink conducts the heat away from the processor efficiently. The large surface area of the fins then allows the heat to dissipate into the surrounding air, often with the help of a fan.
Example 3: Radiators and Engine Cooling
A car engine produces immense heat. To prevent it from overheating, a coolant fluid (water mixed with antifreeze) is circulated through the engine block. This coolant absorbs the heat. The hot coolant then flows through the radiator, which is made of metal tubes with fins. As air passes over the fins (helped by the car's movement and a fan), the heat is conducted from the coolant through the metal and into the air, cooling the coolant so it can cycle back and absorb more heat.
Common Mistakes and Important Questions
No, as the table above shows, there is a wide range. Silver is the best conductor among pure metals, followed by copper, gold, and then aluminum. Lead and mercury are relatively poor conductors for metals.
Generally, yes. This is because the same free electrons that carry electrical charge also carry thermal energy. This relationship is described by the Wiedemann-Franz law[1]. There are exceptions, like diamond, which is an excellent heat conductor but a poor electrical conductor (an insulator), because it transfers heat through lattice vibrations rather than electrons.
This is a classic misconception! Both the metal and the wood are at the same temperature (room temperature). However, metal is a much better conductor. When you touch it, it draws heat away from your hand much faster than wood does. This rapid loss of heat from your skin is interpreted by your nerves as "coldness." The wood, being an insulator, draws heat slowly, so your skin doesn't cool down as much, and it feels warmer to the touch.
Footnote
[1] Wiedemann-Franz law: A law of physics which states that the ratio of the thermal conductivity (k) to the electrical conductivity (σ) of a metal is proportional to the temperature (T). Mathematically, it is expressed as $ k/σ = LT $, where L is the Lorenz number.
