Filtration: Separating Solids from Liquids
The Basic Principles of Filtration

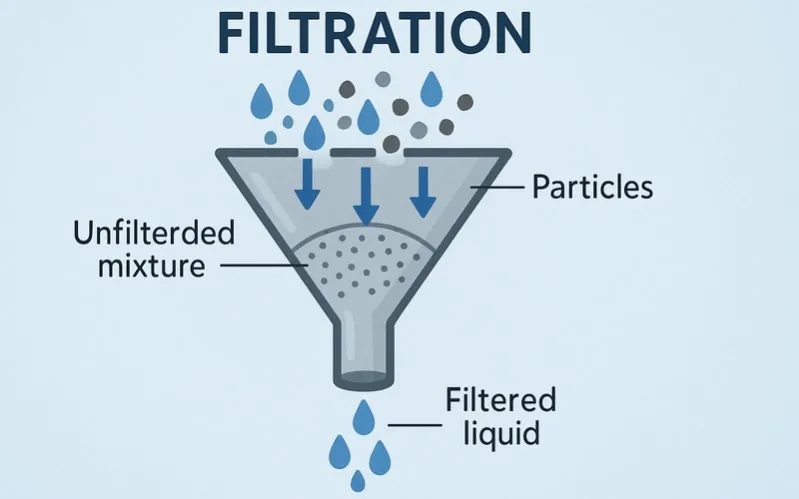

At its core, filtration relies on a simple principle: size exclusion. A filter acts as a barrier with holes (pores) of a specific size. The liquid, which is made of much smaller molecules, can flow through these pores. The solid particles, which are larger than the pores, are trapped. Imagine a colander used to drain pasta; the water flows through the holes, but the pasta stays behind. That is filtration in action.
The main components of a filtration setup are:
- Mixture: The combination of the solid and liquid to be separated.
- Filter Medium: The material that contains the pores. This can be filter paper, cloth, a sintered glass funnel, or even a layer of sand.
- Residue (or Retentate): The solid particles that are trapped on the filter medium.
- Filtrate: The clear liquid that passes through the filter medium.
The efficiency of filtration depends on several factors, including the pore size of the filter, the size and shape of the solid particles, and the properties of the liquid, such as its viscosity[1]. A simple mathematical way to think about the flow of liquid through a filter is described by Darcy's Law, which, in a simplified form, states that the flow rate is proportional to the pressure difference across the filter:
$ Q = \frac{k A \Delta P}{\mu L} $
Where:
$Q$ is the flow rate,
$k$ is the permeability of the filter,
$A$ is the surface area,
$\Delta P$ is the pressure difference,
$\mu$ is the liquid's viscosity,
$L$ is the thickness of the filter.
Common Types of Filtration Methods
Different situations call for different filtration techniques. The choice depends on the goal, the scale of the operation, and the nature of the mixture.
1. Gravity Filtration
This is the simplest and most common type, relying on gravity to pull the liquid through the filter. It's perfect for mixtures where the solid is not extremely fine and the liquid flows easily. A classic example is the setup used in a chemistry lab: a funnel placed in a flask or beaker, with a piece of filter paper folded inside it. The mixture is poured into the funnel, and gravity does the rest.
2. Vacuum Filtration (or Suction Filtration)
When a faster separation is needed, vacuum filtration is the method of choice. A vacuum pump or aspirator is used to create a pressure difference, sucking the liquid through the filter much more quickly than gravity alone. This is ideal for separating crystals from a solution after crystallization or for filtering fine precipitates[2]. The apparatus typically involves a Buchner funnel and a filter flask that can withstand the reduced pressure.
3. Hot Filtration
This technique is used when a solid might crystallize out of the solution as it cools during a standard gravity filtration. The solution and the entire filtration apparatus (funnel, filter paper) are kept hot. This prevents the desired dissolved substance from crystallizing prematurely and ensures only the insoluble impurities are removed. It's commonly used in recrystallization[3] procedures to purify organic compounds.
| Method | Driving Force | Best For | Common Example |
|---|---|---|---|
| Gravity Filtration | Gravity | Coarse solids, slow processes | Brewing coffee, filtering sand from water |
| Vacuum Filtration | Pressure Difference (Vacuum) | Fine solids, fast separation | Collecting crystals in a lab, water treatment plants |
| Hot Filtration | Gravity (with heat) | Preventing crystallization during filtration | Purifying a chemical compound |
Filtration in Action: From Kitchen to Industry
Filtration is not just a lab technique; it's a process we encounter daily. Let's explore some practical examples that span from simple household chores to complex industrial applications.
In the Home: Every time you brew coffee or tea, you are using filtration. The coffee grounds or tea leaves are the solid residue, and the delicious beverage is the filtrate. Water filters in pitchers or on faucets use activated carbon and other filter media to remove impurities like chlorine and sediment from tap water. Even the strainer you use to wash rice or drain vegetables is a form of filtration.
In Nature: The ground itself acts as a massive filter. As rainwater (surface water) percolates down through layers of soil, sand, and rock, impurities are filtered out. This natural filtration process is crucial for recharging aquifers[4], which are underground layers of water-bearing rock that supply wells and springs.
In Public Health: Municipal water treatment plants rely heavily on filtration. After initial settling and coagulation steps, water is passed through massive filters, often containing layers of sand, gravel, and anthracite coal. This removes microscopic particles, parasites, and bacteria, making the water safe to drink. Similarly, the filtration of air in hospitals, airplanes, and cars using HEPA (High-Efficiency Particulate Air) filters removes allergens, dust, and pathogens.
In Science and Medicine: In laboratories, filtration is used to sterilize solutions. A filter with pores so small that bacteria cannot pass through (typically 0.2 \mu m) is used to produce a bacteria-free filtrate. In medicine, our kidneys are a brilliant biological example of filtration. They continuously filter our blood, removing waste products and excess water while keeping essential cells and proteins in the bloodstream.
Common Mistakes and Important Questions
A: They are similar but not identical. Both separate by size. However, sieving typically refers to separating larger solid particles from smaller ones (e.g., separating pebbles from sand using a mesh screen). Filtration specifically refers to separating solid particles from a fluid (liquid or gas).
A: Generally, no. Standard filtration cannot separate two liquids because both will likely pass through the filter pores. Oil and water are immiscible[5] and form separate layers. They are best separated by decantation (pouring off the top layer) or by using a separating funnel.
A: A common error is folding the paper into a tight cone that touches the funnel wall on only one side. The correct way is to fold it in half, then in half again, and open it to form a cone with three thicknesses on one side and one on the other. This creates a space between the paper and the funnel for the filtrate to flow down efficiently, preventing clogging.
Filtration is a deceptively simple yet profoundly important separation method. From the basic act of straining pasta to the complex purification of drinking water for entire cities, its applications are universal. Understanding the principles behind it—size exclusion, the roles of the filter medium, residue, and filtrate—provides a foundation for more advanced scientific concepts. By mastering techniques like gravity and vacuum filtration, students and scientists can effectively purify substances, a critical step in countless experiments and industrial processes. It is a perfect example of how a fundamental scientific principle powers both everyday life and technological advancement.
Footnote
[1] Viscosity: A measure of a fluid's resistance to flow. A high-viscosity liquid like honey flows slower than a low-viscosity liquid like water.
[2] Precipitate: An insoluble solid that forms from a chemical reaction taking place in a solution.
[3] Recrystallization: A purification technique for solids that involves dissolving the impure solid in a hot solvent and then cooling the solution to allow pure crystals to form.
[4] Aquifer: An underground layer of water-bearing permeable rock, rock fractures, or unconsolidated materials from which groundwater can be extracted.
[5] Immiscible: Refers to liquids that are incapable of being mixed together to form a homogeneous solution (e.g., oil and water).
