Light Intensity: The Strength of Light on a Surface
What Exactly is Light Intensity?

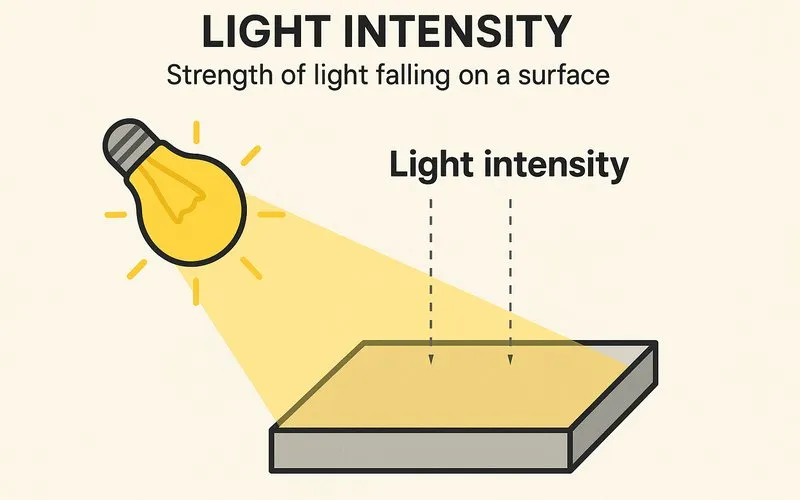

In everyday language, we talk about a light being "bright" or "dim." Scientists and engineers need a more precise way to describe this. When we say "light intensity" in the context of light falling on a surface, we are specifically referring to a quantity called illuminance[1]. Imagine light as a stream of energy particles called photons. Illuminance tells us how densely these photons are packed onto a surface area every second. A high illuminance means many photons are hitting each square meter of the surface every second, making it appear bright. A low illuminance means fewer photons are arriving, making the surface appear dim.
The official unit for measuring illuminance is the lux[2] (lx). One lux is defined as one lumen[3] of luminous flux spread over an area of one square meter. To put this into perspective:
- Bright sunlight can be over 100,000 lux.
- A well-lit office or classroom is typically around 500 lux.
- A moonlit night might only be about 0.25 lux.
The basic formula for illuminance is: $E = \frac{F}{A}$
Where:
• $E$ is the illuminance in lux (lx).
• $F$ is the luminous flux in lumens (lm).
• $A$ is the surface area in square meters (m²).
Example: If a light bulb emits 800 lumens and that light is spread evenly over a desk with an area of 2 m², the illuminance on the desk is $E = 800 / 2 = 400$ lx.
The Science Behind the Strength of Light
Several key scientific principles govern how much light intensity reaches a surface. Understanding these helps explain why a light seems brighter up close and why tilting a book can make it harder to read.
1. The Inverse Square Law: The Power of Distance
This is one of the most important concepts in understanding light intensity. The Inverse Square Law states that the intensity of light from a point source is inversely proportional to the square of the distance from the source. In simpler terms, if you double your distance from a light bulb, the brightness on a surface doesn't just halve; it drops to a quarter of its original value.
Think of light spreading out like an expanding sphere. As the sphere gets bigger (i.e., you move further away), the same amount of light energy must cover a much larger surface area.
$E = \frac{I}{d^2}$
Where:
• $E$ is the illuminance (in lux).
• $I$ is the luminous intensity of the source (in candela, a measure of the light's power in a specific direction).
• $d$ is the distance from the light source to the surface (in meters).
Example: If the illuminance is 1000 lx at 1 meter, what is it at 3 meters?
At 3 meters, $d$ is 3 times larger, so $d^2$ is 9 times larger. Therefore, $E = 1000 / 9 \approx 111$ lx.
2. The Angle of Incidence: A Matter of Perspective
Light intensity is greatest when the light rays hit a surface perpendicularly (at a 90-degree angle). As the surface is tilted, the same amount of light is spread over a larger area, reducing the illuminance. This is described by Lambert's Cosine Law.
A simple example is reading a book under a lamp. If you hold the book flat, it's bright. If you tilt the book, the page appears darker because the light is striking it at a shallower angle.
The illuminance on a surface is proportional to the cosine of the angle ($\theta$) between the light rays and a line perpendicular to the surface (the normal).
$E = E_{max} \times \cos(\theta)$
Where $E_{max}$ is the illuminance when the light is shining straight down ($\theta = 0^\circ$ and $\cos(0^\circ) = 1$). At $\theta = 60^\circ$, $\cos(60^\circ) = 0.5$, so the illuminance is only half of the maximum value.
Measuring and Comparing Light in the Real World
We encounter a wide range of light intensities every day. The following table provides examples of illuminance levels in common situations.
| Situation | Approximate Illuminance (Lux) | Description |
|---|---|---|
| Direct Sunlight | 100,000 lx | Extremely bright, can cause glare. |
| Overcast Day | 1,000 - 10,000 lx | Bright but comfortable outdoor light. |
| Well-Lit Office | 300 - 500 lx | Adequate for reading and working without eye strain. |
| Living Room Lighting | 50 - 200 lx | Relaxing, ambient light. |
| Streetlight at Night | 5 - 30 lx | Enough to see your way, but not for reading. |
| Full Moon | ~0.25 lx | Very dim, creating only shadows. |
Putting Light Intensity to Work: Practical Applications
The control of light intensity is not just a scientific curiosity; it is essential in many fields. By manipulating distance, angle, and source power, we can achieve specific goals.
1. Photography and Videography: The very essence of photography is capturing light. Photographers carefully control light intensity using the camera's aperture (the size of the lens opening), shutter speed (how long the sensor is exposed to light), and ISO (the sensor's sensitivity). They also use external flashes and reflectors to modify the intensity of light falling on their subject, creating the desired mood and effect.
2. Plant Growth (Photobiology): Plants rely on light for photosynthesis. Different plants require different light intensities to thrive. Farmers and gardeners use this knowledge to optimize crop yields. In a greenhouse, they might use shade cloths to reduce intensity for shade-loving plants or use artificial grow lights to provide sufficient intensity for seedlings during short winter days. The light intensity, along with its color spectrum, directly influences growth rate, flowering, and fruit production.
3. Architecture and Interior Design: Proper lighting is key to creating functional and pleasant spaces. Building codes often specify minimum illuminance levels for different rooms (e.g., higher lux for a kitchen counter where you chop food, lower lux for a bedroom). Designers use a combination of overhead lights, task lights (like a desk lamp), and ambient lights to create layers of light intensity that suit the room's purpose.
4. Solar Energy: The efficiency of solar panels is directly tied to the intensity of sunlight hitting them. Solar farms are built in locations with high average light intensity. The angle of the panels is also carefully adjusted to ensure sunlight strikes them as perpendicularly as possible throughout the year, maximizing energy capture according to Lambert's Cosine Law.
Common Mistakes and Important Questions
A: In casual conversation, yes, we use them interchangeably. But scientifically, there's a subtle difference. "Brightness" is a subjective perception by the human eye, which can be influenced by context and color. "Light intensity" (illuminance) is an objective, measurable physical quantity. A surface with a certain illuminance might appear brighter or dimmer depending on the surrounding light and the surface's color.
A: A higher wattage bulb consumes more electrical power. A portion of this electrical power is converted into light power (luminous flux, measured in lumens). According to the formula $E = F / A$, a higher luminous flux ($F$) results in a higher illuminance ($E$) on a surface at the same distance and angle. However, with the advent of LED technology, wattage is no longer a direct indicator of brightness, as LEDs are much more efficient. It's better to look at the lumen output of a bulb.
A: This is a perfect example of the Inverse Square Law in action. When you double the distance ($d$ becomes $2d$), the denominator in the formula $E = I / d^2$ becomes $(2d)^2 = 4d^2$. This means the illuminance is now $I / 4d^2$, which is one-quarter of the original illuminance. So, it gets four times dimmer, not two times.
Light intensity, precisely defined as illuminance, is a fundamental property of light that describes its strength on a surface. Governed by the Inverse Square Law and Lambert's Cosine Law, it explains everyday phenomena like why lights appear dimmer from far away. Measured in lux, it provides a scientific basis for designing lighting in our homes, growing plants efficiently, capturing perfect photographs, and harnessing solar energy. From the brilliant intensity of the sun to the soft glow of a candle, understanding this concept allows us to see and shape our world more effectively.
Footnote
[1] Illuminance: The total luminous flux incident on a surface, per unit area. It is measured in lux (lx).
[2] Lux (lx): The SI derived unit of illuminance. One lux is equal to one lumen per square meter (lm/m²).
[3] Lumen (lm): The SI derived unit of luminous flux; a measure of the total quantity of visible light emitted by a source.
[4] Inverse Square Law: A physical law stating that a specified physical quantity (like light intensity) is inversely proportional to the square of the distance from the source of that quantity.
[5] Lambert's Cosine Law: The law stating that the illuminance on a surface is directly proportional to the cosine of the angle between the direction of the incident light and the surface normal.
