The Parallelogram: More Than Just a Slanted Rectangle
Defining Characteristics and Core Properties

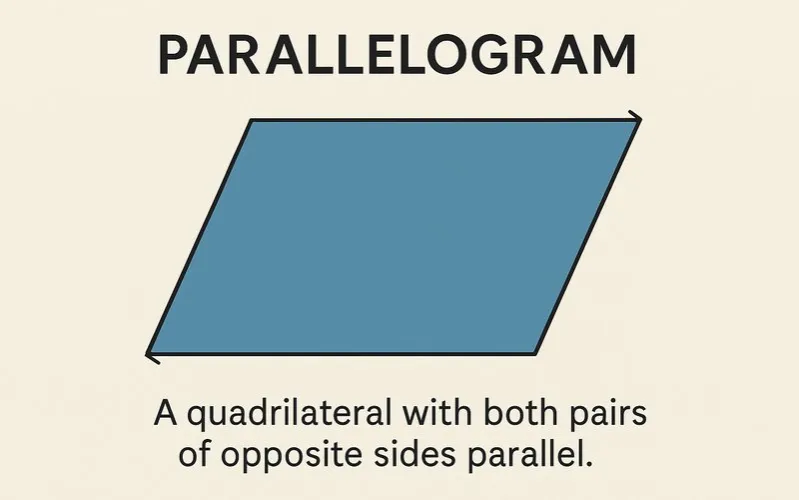

At its heart, a parallelogram is defined by one key feature: both pairs of opposite sides are parallel. This single condition automatically guarantees several other important properties. Let's break them down one by one.
1. Opposite Sides are Congruent: If a quadrilateral is a parallelogram, then its opposite sides are not only parallel but also equal in length. In the parallelogram $ABCD$ below, this means $AB = DC$ and $AD = BC$.
2. Opposite Angles are Congruent: The angles across from each other are equal. So, in parallelogram $ABCD$, $\angle A = \angle C$ and $\angle B = \angle D$.
3. Consecutive Angles are Supplementary: Angles that are next to each other (like $\angle A$ and $\angle B$) add up to 180 degrees, or $\pi$ radians. So, $\angle A + \angle B = 180^\circ$, $\angle B + \angle C = 180^\circ$, and so on.
4. Diagonals Bisect Each Other: The diagonals of a parallelogram (lines connecting opposite vertices) cut each other exactly in half. If the diagonals of parallelogram $ABCD$ intersect at point $O$, then $AO = OC$ and $BO = OD$.
The area ($A$) of a parallelogram is given by the formula $A = b \times h$, where $b$ is the length of the base and $h$ is the perpendicular height. It is crucial to use the perpendicular height, not the length of the slanted side.
A Family of Shapes: Types of Parallelograms
Many common shapes are actually special types of parallelograms. They inherit all the properties of a parallelogram but have additional features that make them unique. The relationship between these shapes is a great example of how geometric figures can be classified.
| Shape Name | Description | Additional Properties |
|---|---|---|
| Rectangle | A parallelogram with four right angles. | All angles are $90^\circ$. Diagonals are congruent (equal in length). |
| Rhombus | A parallelogram with four congruent sides. | All sides are equal. Diagonals are perpendicular and bisect the vertex angles. |
| Square | A parallelogram that is both a rectangle and a rhombus. | All angles are $90^\circ$, all sides are equal. Diagonals are congruent, perpendicular, and bisect each other. |
This table shows that a square is the most specific type of parallelogram, possessing all the properties of a rectangle, a rhombus, and a general parallelogram. Think of it as a family tree where the parallelogram is the grandparent.
How to Calculate Area and Perimeter
Calculating the area and perimeter of a parallelogram is straightforward if you know the correct measurements. Let's go through the formulas with examples.
Perimeter: The perimeter ($P$) of any polygon is the sum of the lengths of all its sides. Since a parallelogram has two pairs of equal sides, the formula simplifies to $P = 2(a + b)$, where $a$ and $b$ are the lengths of two adjacent sides.
Example 1: A parallelogram has sides of 10 cm and 7 cm. What is its perimeter?
Using the formula: $P = 2(10 + 7) = 2(17) = 34$ cm.
Area: As mentioned earlier, the area is $A = b \times h$. The height ($h$) is the perpendicular distance between the base and the side parallel to it. This is a common source of error, as students often mistakenly use the slanted side length.
Example 2: A parallelogram has a base of 12 meters and a height of 5 meters. What is its area?
Using the formula: $A = 12 \times 5 = 60$ m$^2$.
Example 3: Find the area of a parallelogram where the base is 8 inches and the height is 4.5 inches.
$A = 8 \times 4.5 = 36$ in$^2$.
Parallelograms in the Real World
Parallelograms are not just abstract geometric concepts; they are all around us. Their inherent stability and properties make them useful in many practical applications.
Engineering and Architecture: The principle of the parallelogram is used in trusses and supports for bridges and roofs. A "parallelogram linkage" is a mechanism that allows parts to move while keeping them parallel. You can see this in action in a folding garage door or the tailgate of some trucks. These linkages ensure that the door or gate remains level as it is raised or lowered.
Design and Art: Tiles, patterns, and graphic designs often use parallelograms and other quadrilaterals to create visually appealing tessellations. The repeating pattern of shapes that fit together without gaps is a classic application of geometric principles.
Everyday Objects: A simple sheet of paper is a rectangle (a special parallelogram). When you push on the side of a bookcase that isn't braced, it slants into a parallelogram shape—this demonstrates a lack of structural rigidity, which engineers must account for. Even the popular video game Minecraft uses a technique called "parallax scrolling" which can create a parallax1 effect, and the game's world is fundamentally built on cubes, whose faces are squares (special parallelograms).
Common Mistakes and Important Questions
Q: Is every rectangle a parallelogram?
Yes! A rectangle fulfills the primary condition of a parallelogram: both pairs of opposite sides are parallel. Therefore, every rectangle is a parallelogram. However, not every parallelogram is a rectangle (only those with all four interior angles equal to $90^\circ$).
Q: What is the most common mistake when calculating the area?
The most frequent error is using the length of the slanted side instead of the perpendicular height in the area formula $A = b \times h$. The height must always be the straight-line, perpendicular distance from the base to the opposite side.
Q: Do the diagonals of a parallelogram always have the same length?
No. Unlike a rectangle, the diagonals of a general parallelogram are not necessarily equal. They only become equal in length if the parallelogram is a rectangle (or a square). However, in all parallelograms, the diagonals always bisect each other.
The parallelogram is a foundational shape in geometry whose importance extends far beyond its simple definition. Its unique properties—congruent opposite sides and angles, supplementary consecutive angles, and bisecting diagonals—make it a powerful tool for solving geometric problems. Understanding how to calculate its area and perimeter, and recognizing its special forms like the rectangle, rhombus, and square, is essential for students. Moreover, seeing its practical applications in engineering, design, and everyday life helps bridge the gap between abstract math and the real world. Mastering the parallelogram provides a solid foundation for exploring more complex geometric concepts.
Footnote
1 Parallax: The effect whereby the position or direction of an object appears to differ when viewed from different positions. In computer graphics, parallax scrolling is a technique where background images move more slowly than foreground images, creating an illusion of depth.
