Electron Shells: The Secret Address of Every Electron
The Basic Architecture of an Atom
Imagine an atom as a miniature solar system. At the very center is the nucleus, a dense, positively charged core containing protons and neutrons. Whizzing around this nucleus at incredibly high speeds are tiny, negatively charged particles called electrons. But unlike planets in a solar system, electrons don't orbit in simple, predictable paths. They exist in specific regions of space called electron shells or energy levels.

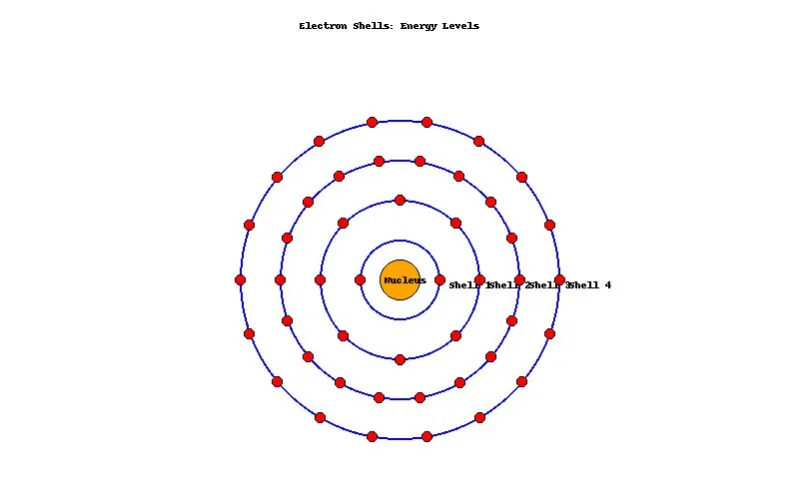

Think of these shells as the “floors” or “orbits” of an apartment building for electrons. The first floor (closest to the nucleus) has the lowest energy. Electrons living here are the most stable and tightly bound to the atom. As you move to higher floors (further from the nucleus), the energy of the electrons increases. These outer electrons are less tightly held and are the ones that interact with other atoms, leading to chemical reactions and the formation of molecules.
From the Bohr Model to Quantum Mechanics
The first successful model of the atom with electron shells was proposed by Niels Bohr[1] in 1913. In the Bohr model, electrons are shown moving in fixed, circular orbits around the nucleus, much like planets around the sun. Each orbit corresponds to a specific energy level, labeled with a principal quantum number, $ n $.
- $ n = 1 $: The first and lowest energy shell (closest to the nucleus).
- $ n = 2 $: The second shell, further out and higher in energy.
- And so on...
While the Bohr model is a great starting point for understanding energy levels, it is a simplified picture. The modern quantum mechanical model tells us that electrons don't travel in neat orbits. Instead, they exist in “clouds” of probability called orbitals, where we are most likely to find an electron. This model gives us a much more accurate, though more complex, description of electron behavior.
Key Formula: Maximum Electrons per Shell
A simple formula tells you the maximum number of electrons that can fit in any given principal energy level: $ 2n^2 $, where $ n $ is the shell number.
- Shell 1 ($ n=1 $): $ 2(1)^2 = 2 $ electrons
- Shell 2 ($ n=2 $): $ 2(2)^2 = 8 $ electrons
- Shell 3 ($ n=3 $): $ 2(3)^2 = 18 $ electrons
Subshells and Orbitals: The Fine Print
Each principal energy level ($ n $) is divided into one or more subshells. These are labeled s, p, d, and f, and they describe the shape of the region in space where an electron is likely to be found.
Each subshell contains a specific number of orbitals. An orbital is a region within a subshell that can hold a maximum of two electrons. Think of an orbital as a single “room” within an apartment on a specific floor. Each room can hold up to two occupants (electrons).
| Subshell | Number of Orbitals | Maximum Electrons | Shells Where Found |
|---|---|---|---|
| s | 1 | 2 | Every shell (n=1, 2, 3...) |
| p | 3 | 6 | Shell 2 and higher (n≥2) |
| d | 5 | 10 | Shell 3 and higher (n≥3) |
| f | 7 | 14 | Shell 4 and higher (n≥4) |
So, for the second shell ($ n=2 $), we have two subshells: 2s (1 orbital, 2 electrons) and 2p (3 orbitals, 6 electrons). Adding them together gives the total of 8 electrons for the shell, which matches our $ 2n^2 $ formula.
Filling the Shells: The Aufbau Principle and Electron Configuration
How do electrons actually fill these shells and subshells? They follow a set of rules, the most important being the Aufbau principle[2]. This German word means “building up,” and it states that electrons occupy the lowest energy orbitals available first.
The order in which subshells are filled is not simply 1s, 2s, 2p, 3s, 3p, 3d... Due to complex interactions between electrons and the nucleus, the energy levels of subshells can overlap. A handy way to remember the order is to use the diagonal rule or the following mnemonic: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d, 7p...
The detailed arrangement of electrons in an atom's orbitals is called its electron configuration. It’s like the atom’s unique home address for all its electrons.
Electron Configurations in Action: From Hydrogen to Carbon
Let's see how to write electron configurations for a few elements.
Hydrogen (H, Atomic Number[3] 1): With just one electron, it goes into the lowest energy orbital available, which is the 1s orbital. Its electron configuration is $ 1s^1 $.
Helium (He, Atomic Number 2): It has two electrons. Both go into the 1s orbital, but they must have opposite spins. Its configuration is $ 1s^2 $. This fills the first shell completely.
Lithium (Li, Atomic Number 3): The first shell is full, so the third electron must go into the next available orbital with the lowest energy, which is the 2s orbital. Its configuration is $ 1s^2 2s^1 $.
Carbon (C, Atomic Number 6): Let's build it up step-by-step.
- 2 electrons fill the 1s orbital: $ 1s^2 $
- 2 electrons fill the 2s orbital: $ 1s^2 2s^2 $
- 2 electrons remain for the 2p subshell. The 2p subshell has three orbitals. According to Hund's rule[4], electrons will fill empty orbitals in the same subshell first before pairing up. So, the two electrons will occupy two different 2p orbitals. The full configuration is $ 1s^2 2s^2 2p^2 $.
| Element | Atomic Number | Electron Configuration |
|---|---|---|
| Oxygen (O) | 8 | $ 1s^2 2s^2 2p^4 $ |
| Neon (Ne) | 10 | $ 1s^2 2s^2 2p^6 $ |
| Sodium (Na) | 11 | $ 1s^2 2s^2 2p^6 3s^1 $ |
The Direct Link to the Periodic Table
The most powerful application of electron configurations is their direct connection to the periodic table. The table is organized to perfectly reflect how electrons fill the shells.
- Groups (Vertical Columns): Elements in the same group have the same number of electrons in their outermost shell (valence electrons[5]). This is why they have similar chemical properties. For example, all Group 1 elements (alkali metals) have one valence electron in an s orbital.
- Periods (Horizontal Rows): The period number corresponds to the highest principal quantum number ($ n $) of that element. An element in period 3 is filling its $ n=3 $ shell.
- Blocks (s, p, d, f): The periodic table is divided into blocks labeled s, p, d, and f. These labels tell you which subshell is being filled with electrons for the elements in that block.
Common Mistakes and Important Questions
Q: Do electrons really “orbit” the nucleus like planets?
No, this is a common misconception from the outdated Bohr model. In the modern quantum mechanical model, electrons do not follow a fixed path. Instead, they exist in “orbitals,” which are three-dimensional regions where there is a high probability of finding the electron. It's more accurate to think of them as a fuzzy cloud or a wave vibrating in a specific region around the nucleus.
Q: Why is the third shell said to hold 8 electrons in many textbooks when the formula says it can hold 18?
This is a point of confusion between the capacity of a shell and the order of filling. The third shell ($ n=3 $) has the subshells 3s, 3p, and 3d, giving it a total capacity of 2 + 6 + 10 = 18 electrons. However, due to the overlap of energy levels, the 4s subshell fills before the 3d subshell. For the first 20 elements (up to calcium), the 3d orbital remains empty. Therefore, for these common elements, you only see the 3s and 3p subshells being used, which together hold 8 electrons. This is often simplified in introductory courses.
Q: What are valence electrons and why are they so important?
Valence electrons are the electrons in the outermost shell of an atom. They are the farthest from the nucleus and experience the weakest attraction to it. This makes them the primary participants in chemical bonding. The number of valence electrons determines how an element will react with others. For example, atoms tend to gain, lose, or share electrons to achieve a full outer shell (like the 8 electrons of a noble gas), which is a stable configuration.
Electron shells are not just abstract concepts; they are the fundamental organizational structure of matter. From the simple, fixed orbits of the Bohr model to the probabilistic orbitals of the quantum mechanical model, our understanding of where electrons reside has evolved dramatically. Mastering the principles of electron shells—the energy levels, subshells, orbitals, and the rules for filling them—unlocks the ability to predict an element's chemical behavior, its place on the periodic table, and its role in forming the vast array of substances that make up our world. This knowledge truly is the key to understanding chemistry.
Footnote
[1] Bohr model: A historical model of the atom where electrons orbit the nucleus in specific, fixed energy levels or shells.
[2] Aufbau principle: A German word meaning “building-up,” it is the rule that electrons occupy the lowest-energy orbitals available first.
[3] Atomic Number (Z): The number of protons in the nucleus of an atom, which also equals the number of electrons in a neutral atom.
[4] Hund's rule: The rule stating that electrons will fill empty orbitals in the same subshell first, before pairing up in the same orbital.
[5] Valence electrons: The electrons in the outermost principal energy level of an atom; they are involved in chemical bonding.
