J. J. Thomson: The Man Who Discovered the Electron
A Scientific World Before the Electron
To understand why Thomson's discovery was so revolutionary, we need to travel back in time. In the late 19th century, scientists believed the atom was the smallest, most fundamental particle of matter. The word "atom" itself comes from a Greek word meaning "indivisible." Scientists like John Dalton had established atomic theory, which was brilliant for explaining chemical reactions, but it pictured the atom as a tiny, solid, unbreakable sphere, like a miniature billiard ball. This model, however, couldn't explain everything. For instance, what caused static electricity? Or what was flowing through wires to create an electric current? A mysterious phenomenon known as "cathode rays" was particularly puzzling scientists in their labs, and it was this puzzle that J. J. Thomson decided to solve.
The Groundbreaking Cathode Ray Tube Experiment

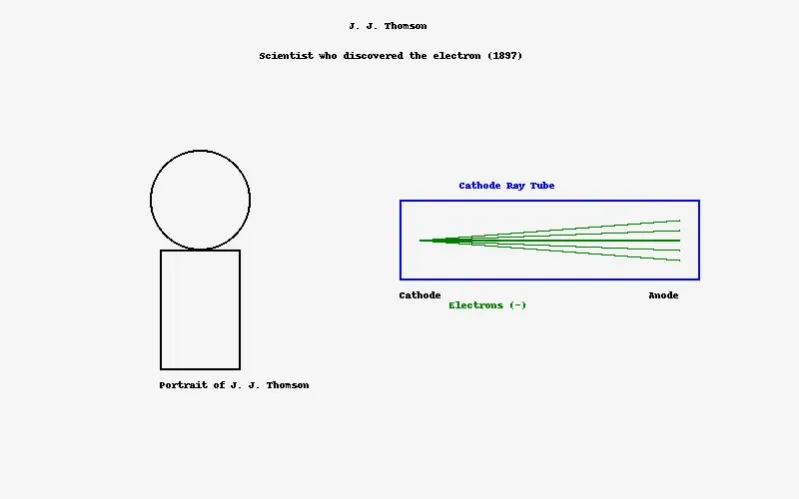

Thomson's most famous work centered on the cathode ray tube. Think of a cathode ray tube as a very long, sealed glass bulb with most of the air pumped out. At one end is a negative electrode (the cathode) and at the other end, a positive electrode (the anode). When a very high voltage is applied, a beam, called a cathode ray, shoots from the cathode to the anode, causing a fluorescent screen at the end of the tube to glow at the point where the beam hits it.
Scientists in Thomson's day were fiercely debating what these cathode rays actually were. Some thought they were a wave, like light. Others thought they were a stream of particles. Thomson designed a series of elegant experiments to find out. His tube had two metal plates on the sides to create an electric field and a magnet placed outside the tube to create a magnetic field.
Here is what he did, step-by-step:
- Deflection by an Electric Field: When Thomson turned on the electric field, the cathode ray beam was deflected (bent) toward the positive plate. This was a huge clue! Since unlike charges attract, the beam must be made of negatively charged particles.
- Deflection by a Magnetic Field: When he used the magnet, the beam also bent, and the direction of the bend confirmed the negative charge of the particles.
- Balancing the Forces: The masterstroke was when Thomson used both the electric and magnetic fields at the same time. He adjusted their strengths until the deflections canceled each other out and the beam went straight. By measuring the strengths of the fields needed to do this, he could calculate the ratio of the particle's charge to its mass, known as the $ \frac{e}{m} $ ratio.
The result was astonishing. The $ \frac{e}{m} $ ratio Thomson found was over 1,000 times larger than that of a hydrogen ion (the lightest known atom). This could only mean one of two things: either the particles in the cathode ray had an enormous charge, or they had a very, very small mass. Thomson correctly concluded that they had a tiny mass. He had discovered a particle that was about $ \frac{1}{2000} $ the mass of a hydrogen atom. The atom was not indivisible!
The Plum Pudding Model: A New Picture of the Atom
After proving the existence of this new, tiny, negatively charged particle (which he first called "corpuscles" but we now call electrons), Thomson needed a new model for the atom. If atoms contained these light, negative electrons, but the atom itself was neutral, there must be something positive to balance out the negative charge.
His solution was the "plum pudding model." In this model, the atom was imagined as a sphere of uniform positive charge (the "pudding") with negatively charged electrons embedded within it (the "plums"). This model was a radical departure from the solid billiard ball idea. It was the first model to suggest that the atom had an internal structure. While we now know this model was incorrect, it was a crucial stepping stone that inspired the next generation of scientists, like Ernest Rutherford, to probe even deeper into the atom's structure.
Key Properties of the Electron
Thanks to Thomson and the scientists who followed him, we now know a great deal about the electron. The table below summarizes its key properties, which are fundamental to how our universe works.
| Property | Value and Description |
|---|---|
| Charge | Negative, with a magnitude of $ 1.602 \times 10^{-19} $ Coulombs. This is the fundamental unit of electric charge. |
| Mass | Approximately $ 9.109 \times 10^{-31} $ kilograms. It is about $ \frac{1}{1836} $ the mass of a proton. |
| Location | Found in a "cloud" outside the nucleus of an atom, in regions called atomic orbitals. |
| Role in Chemistry | The arrangement and interactions of electrons between atoms are responsible for all chemical bonds and reactions. |
Electrons in Action: From Lightning to Smartphones
The discovery of the electron didn't just change textbooks; it sparked a technological revolution. Almost every modern device relies on our ability to control the flow of electrons.
- Electricity: An electric current is simply a controlled flow of electrons through a conductor, like a copper wire. The lights in your home, your refrigerator, and your video game console all work because we can make electrons move.
- Static Electricity: When you rub a balloon on your hair, electrons are transferred from your hair to the balloon. Your hair now has a positive charge (missing electrons) and the balloon has a negative charge (extra electrons). The opposite charges attract, making your hair stand on end!
- Electronics: Transistors, the building blocks of every computer and smartphone, are tiny switches that control the flow of electrons. Millions of them on a single microchip allow your phone to run apps, take photos, and connect to the internet.
- Medical Imaging: X-ray machines, like those used in hospitals, work by firing a beam of high-energy electrons at a metal target to produce X-rays, which can then be used to see inside the human body.
Common Mistakes and Important Questions
Q: Did J. J. Thomson discover the nucleus of the atom?
No, he did not. Thomson discovered the electron, which orbits the nucleus. The nucleus itself, containing protons and neutrons, was discovered by his student, Ernest Rutherford, in 1911, through his famous gold foil experiment. Rutherford's experiment actually disproved Thomson's plum pudding model.
Q: Are cathode rays and electrons the same thing?
Essentially, yes. "Cathode rays" is the name for the visible beam observed in a cathode ray tube. J. J. Thomson proved that this beam is actually a stream of individual, negatively charged particles, which he named corpuscles and we now call electrons. So, cathode rays are a stream of electrons.
Q: If atoms have electrons moving in them, why don't they run out of energy and collapse?
This is a great question that puzzled scientists after Thomson. According to older physics, a moving, charged electron should lose energy and spiral into the nucleus. This is where quantum mechanics comes in. In the modern model, electrons exist in specific "energy levels" or "orbitals" and do not orbit the nucleus like a planet. In their ground state (lowest energy), they simply don't lose energy, which is why atoms are stable.
Conclusion
J. J. Thomson's discovery of the electron was a monumental leap for science. He shattered the centuries-old belief that the atom was indivisible and opened the door to the world of subatomic particles. His "plum pudding model," though later replaced, was a vital first step in modeling the atom's complex structure. The electron itself has become the cornerstone of modern technology, chemistry, and physics. From the power grid that lights our cities to the smartphones in our pockets, Thomson's legacy is a powerful reminder that probing the deepest secrets of nature can transform the world in ways we can hardly imagine.
Footnote
[1] CRT (Cathode Ray Tube): A vacuum tube containing one or more electron guns and a phosphorescent screen, used to display images in old televisions and computer monitors. It was the primary technology used by J. J. Thomson in his discovery.
[2] Subatomic Particle: A particle that is smaller than an atom. Examples include protons, neutrons, and the electron, which was the first one discovered.
[3] Nucleus (Atomic): The small, dense, positively charged central core of an atom, made up of protons and neutrons. It was discovered after the electron.
