Energy Levels: The Secret Addresses of Electrons
From Planetary Orbits to Quantum Shells

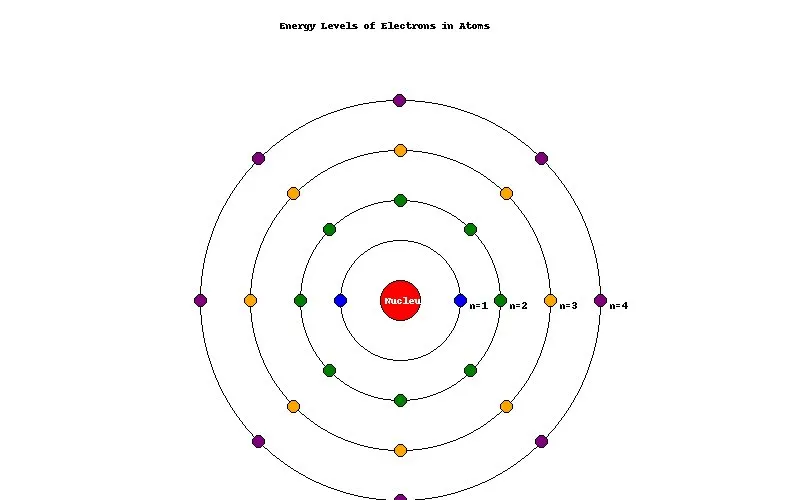

Imagine an atom as a tiny solar system. At the center is the nucleus, containing protons and neutrons, much like the sun. Orbiting this nucleus are electrons, similar to planets. However, unlike planets that can orbit at any distance, electrons are restricted to specific, fixed paths called energy levels or electron shells. Think of these as the rungs on a ladder; an electron can be on the first rung, the second rung, or the third, but it can never be between two rungs.
This idea was first proposed by Niels Bohr[1] in 1913. His model was a giant leap in understanding atomic structure. Before Bohr, scientists thought electrons could spiral into the nucleus, causing the atom to collapse. Bohr's revolutionary idea was that electrons occupy stable, circular orbits at certain distances from the nucleus, each with a defined energy. The closer an electron is to the nucleus, the lower its energy and the more tightly it is bound.
For a hydrogen atom, the energy of an electron in the $n^{th}$ level is given by: $E_n = -\frac{R_H}{n^2}$
Where $E_n$ is the energy, $n$ is the principal quantum number (1, 2, 3...), and $R_H$ is the Rydberg constant[2] for hydrogen. The negative sign indicates that the electron is bound to the nucleus.
Mapping the Electron Neighborhood
Energy levels are organized and labeled for easy understanding. The simplest labeling system uses letters: K, L, M, N, etc. A more precise system uses the principal quantum number, $n$.
| Shell Name | Principal Quantum Number ($n$) | Maximum Electrons | Distance from Nucleus |
|---|---|---|---|
| K | 1 | 2 | Closest, Lowest Energy |
| L | 2 | 8 | Farther, Higher Energy |
| M | 3 | 18 | Even Farther, Even Higher Energy |
| N | 4 | 32 | Farthest, Highest Energy |
The maximum number of electrons in each shell is given by the formula $2n^2$. For the K shell (n=1), it's $2*(1)^2 = 2$ electrons. For the L shell (n=2), it's $2*(2)^2 = 8$ electrons, and so on. Electrons always fill the lowest available energy level first, a principle known as the Aufbau principle[3].
Beyond Orbits: The Quantum Mechanical View
While the Bohr model is a great starting point, it's a simplification. The modern quantum mechanical model doesn't define exact orbits. Instead, it describes orbitals, which are three-dimensional regions around the nucleus where there is a high probability of finding an electron. Think of it not as a sharp planetary orbit, but as a fuzzy "cloud" where the electron is most likely to be.
Each primary energy level ($n$) is divided into sublevels (s, p, d, f), and each sublevel contains a specific number of orbitals with different shapes. This complex arrangement explains the finer details of chemistry that the simple Bohr model cannot.
| Energy Level (n) | Sublevels Present | Number of Orbitals | Max Electrons |
|---|---|---|---|
| 1 (K) | s | 1 | 2 |
| 2 (L) | s, p | 1 + 3 = 4 | 8 |
| 3 (M) | s, p, d | 1 + 3 + 5 = 9 | 18 |
| 4 (N) | s, p, d, f | 1 + 3 + 5 + 7 = 16 | 32 |
How Energy Levels Create Light and Color
The concept of energy levels beautifully explains many phenomena we see around us. A classic example is the neon sign. Inside a neon sign tube, there is neon gas. When you pass electricity through it, the electrons in the neon atoms absorb energy and jump from their normal, low-energy ground state to a higher, excited energy level. This excited state is unstable. Almost immediately, the electron falls back down to its original level. When it does, it releases the extra energy it had absorbed in the form of a particle of light, called a photon.
The color of this light is directly determined by the difference in energy between the two levels. The energy of the photon, $E$, is given by: $E = h\nu$ where $h$ is Planck's constant[4] and $\nu$ is the frequency of the light. Since different elements have unique energy level spacings, they emit photons of different frequencies, which our eyes see as different colors. Neon gives a red-orange light, while argon gives blue, and helium gives yellow.
This same principle is at work in fireworks. Different metal salts are added to the firework composition. Strontium carbonate produces red flames, barium chloride produces green, and copper chloride produces blue. When the firework explodes, the heat excites the electrons in these metal atoms. As the electrons return to their ground state, they emit their characteristic colors, creating the spectacular light show in the night sky.
Common Mistakes and Important Questions
Do electrons actually orbit the nucleus like planets?
Can two electrons occupy the same exact space?
Why is the outermost electron shell so important?
Footnote
[1] Niels Bohr: A Danish physicist who made foundational contributions to understanding atomic structure and quantum theory.
[2] Rydberg Constant (R_H): A physical constant relating to the electromagnetic spectra of an atom. For hydrogen, its value is approximately $2.18 \times 10^{-18}$ Joules.
[3] Aufbau Principle: From the German word "Aufbau" meaning "building up." It states that electrons occupy the lowest energy orbitals available first.
[4] Planck's Constant (h): A fundamental constant of nature that relates the energy of a photon to its frequency. Its value is approximately $6.626 \times 10^{-34}$ Joule-seconds.
[5] Pauli Exclusion Principle: A quantum mechanical principle formulated by Wolfgang Pauli which states that no two fermions (like electrons) can occupy the same quantum state simultaneously.
