The Outer Shell: Home of the Highest Energy Electrons
The Atomic Blueprint: Shells, Subshells, and Orbitals
To understand the outer shell, we must first look at how electrons are organized within an atom. Think of an atom as a tiny solar system, with the nucleus at the center and electrons whizzing around it in specific regions called electron shells[1]. These shells are like the floors of an apartment building, with higher floors (shells farther from the nucleus) having more space and higher energy.
Each main shell is given a principal quantum number, $ n $, starting from $ n = 1 $ for the innermost shell. The maximum number of electrons a shell can hold is given by $ 2n^2 $.
| Shell (n) | Shell Name | Maximum Electrons ($ 2n^2 $) |
|---|---|---|
| 1 | K | 2 |
| 2 | L | 8 |
| 3 | M | 18 |
| 4 | N | 32 |
Shells are further divided into subshells, which are labeled s, p, d, and f. Each subshell contains a specific number of orbitals, which are the actual regions of space where there is a high probability of finding an electron. Each orbital can hold a maximum of two electrons.
| Subshell | Number of Orbitals | Maximum Electrons |
|---|---|---|
| s | 1 | 2 |
| p | 3 | 6 |
| d | 5 | 10 |
| f | 7 | 14 |
The energy of electrons increases as the shell number increases. Therefore, the electrons in the highest-numbered shell (e.g., n=3 for a chlorine atom) are the highest energy electrons in that atom. This highest shell is what we call the outer shell.
Valence Electrons: The Chemical Identity Card
The electrons residing in the outer shell are given a special name: valence electrons. These are the electrons that participate in chemical bonding. They are like an atom's identity card, dictating how it will interact with other atoms.
For main group elements (the s and p blocks of the periodic table), the number of valence electrons is equal to the group number. For example, elements in Group 1 (like Hydrogen and Lithium) have 1 valence electron. Elements in Group 17, the halogens (like Fluorine and Chlorine), have 7 valence electrons. The noble gases in Group 18 are special because they have a full outer shell, which is a very stable configuration, making them largely unreactive.
| Group (Main Group) | Valence Electrons | Example | Electron Configuration (Outer Shell) |
|---|---|---|---|
| 1 (Alkali Metals) | 1 | Sodium (Na) | $ 3s^1 $ |
| 2 (Alkaline Earth Metals) | 2 | Magnesium (Mg) | $ 3s^2 $ |
| 13 (Boron Group) | 3 | Aluminum (Al) | $ 3s^2 3p^1 $ |
| 17 (Halogens) | 7 | Chlorine (Cl) | $ 3s^2 3p^5 $ |
| 18 (Noble Gases) | 8 | Argon (Ar) | $ 3s^2 3p^6 $ |
Atoms are generally most stable when their outer shell is full. This drive for a full outer shell is the fundamental reason why chemical bonds form. For instance, a sodium atom (Na, 1 valence electron) is highly reactive because it desperately wants to lose that one electron to achieve a full outer shell like its predecessor, the noble gas neon. A chlorine atom (Cl, 7 valence electrons) is highly reactive because it desperately wants to gain one electron to achieve a full outer shell like its successor, the noble gas argon.
How Outer Shells Dictate Chemical Bonding
The interactions between the outer shells of atoms lead to the formation of all the substances around us. There are two primary types of chemical bonds that result from these interactions: ionic bonds and covalent bonds.
Ionic Bonding: This occurs when atoms transfer electrons from one outer shell to another. This happens between metals (which tend to lose electrons) and nonmetals (which tend to gain electrons). The atom that loses electrons becomes a positively charged ion (cation), and the atom that gains electrons becomes a negatively charged ion (anion). The opposite charges then attract each other, forming an ionic bond.
Example: Table Salt (Sodium Chloride, NaCl). A sodium atom (Na) donates its single 3s valence electron to a chlorine atom (Cl). After the transfer, sodium's outer shell is now the n=2 shell, which is full with 8 electrons. Chlorine's n=3 shell becomes full with 8 electrons. The resulting Na$^+$ and Cl$^-$ ions are held together by a strong electrostatic force, creating a crystal lattice.
Covalent Bonding: This occurs when atoms share pairs of valence electrons. This typically happens between nonmetal atoms. By sharing electrons, each atom can count the shared electrons towards its own octet, achieving a more stable electron configuration.
Example: A Water Molecule (H$_2$O). An oxygen atom has 6 valence electrons and needs 2 more to complete its outer shell. Each hydrogen atom has 1 valence electron and needs 1 more to complete its shell (which holds a maximum of 2 electrons). The oxygen atom shares one electron with each hydrogen atom, and each hydrogen atom shares its electron with oxygen. This creates two covalent O-H bonds, giving oxygen access to 8 electrons and each hydrogen access to 2 electrons.
Visualizing Outer Shells: The Bohr Model and Beyond

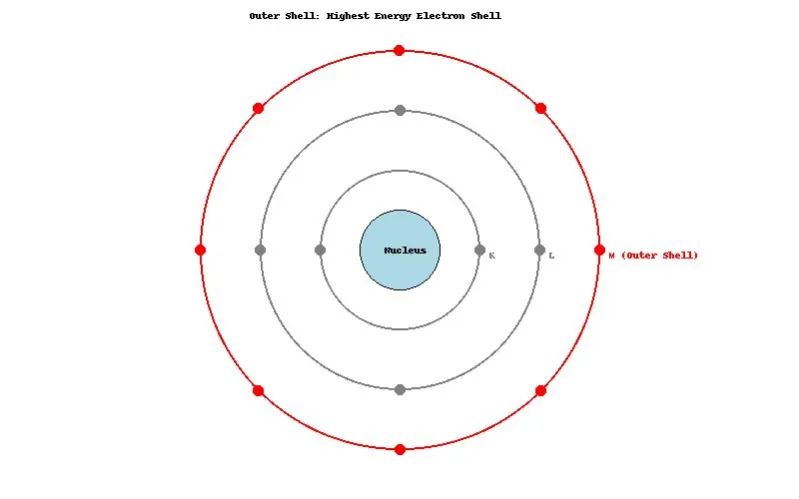

For younger students, the Bohr model[2] is an excellent tool for visualizing atoms and their outer shells. In this model, electrons are shown as tiny particles orbiting the nucleus in specific, planet-like paths. While we now know this is a simplification (electrons exist in fuzzy "clouds" called orbitals), the Bohr model perfectly illustrates the concept of electron shells and valence electrons.
For example, drawing a Bohr model for Carbon (atomic number 6) would show two electrons in the first shell (n=1) and four electrons in the second, outer shell (n=2). Those four electrons in the outer shell are the valence electrons. As we move to more advanced levels, we replace the simple Bohr orbits with more complex orbital diagrams that show the s, p, d, and f subshells, providing a more accurate, though more complex, picture.
Common Mistakes and Important Questions
A: In most cases, yes. For example, in potassium (K), the highest shell is n=4. However, when writing electron configurations, we see it is $ 1s^2 2s^2 2p^6 3s^2 3p^6 4s^1 $. The 4s electrons are higher in energy than the 3s and 3p electrons, so the n=4 shell is correctly identified as the outer shell. The complexity arises with transition metals, where electrons are added to an inner d subshell, but the outermost s electrons are still considered the primary valence electrons for determining group and common reactivity.
A: Yes, this happens during the formation of positive ions (cations). When an atom loses electrons to form a cation, it always loses them from its outermost shell first. For instance, a sodium atom (Na) has its valence electron in the n=3 shell. When it loses that electron to become Na$^+$, the n=3 shell is effectively gone. The new "outer shell" for the ion is the n=2 shell, which is full and stable.
A: Noble gases have a full outer shell. For helium, this means 2 electrons in its first and only shell. For neon, argon, and the others, it means 8 electrons in their outer shell. This full configuration is extremely low in energy and stable. Atoms are lazy; they want to be in the lowest, most stable energy state possible. Since noble gases are already there, they have very little tendency to gain, lose, or share electrons with other atoms.
Footnote
[1] Electron Shell: A group of atomic orbitals with the same principal quantum number, n. Also known as a principal energy level.
[2] Bohr Model: A historical model of the atom, proposed by Niels Bohr, where electrons orbit the nucleus in fixed, circular paths at specific energy levels. While not perfectly accurate by modern quantum mechanics standards, it is a useful teaching tool for illustrating electron shells.
