Insulation: The Science of Staying Warm and Cool
The Three Ways Heat Travels
Before we can understand how insulation works, we need to know how heat moves. Heat is a form of energy that always flows from a warmer area to a cooler one until both areas are the same temperature. This happens in three main ways:
1. Conduction: This is how heat moves through a solid material. When one part of an object is heated, the molecules[1] in that part vibrate faster. These vibrations get passed along to the neighboring molecules, transferring the heat energy through the object. Think of a metal spoon left in a hot pot; the handle gets hot because heat is conducted through the metal.
2. Convection: This is how heat moves through fluids (liquids and gases). When a fluid is heated, it becomes less dense and rises. The cooler, denser fluid then moves in to take its place, creating a circular current. You can see this when you boil water in a pot or feel a draft from a cold window.
3. Radiation: This is how heat travels in invisible waves through empty space, without needing any material to carry it. The warmth you feel from the sun on a sunny day, even though the air might be cold, is radiant heat.
How Insulation Fights Heat Transfer

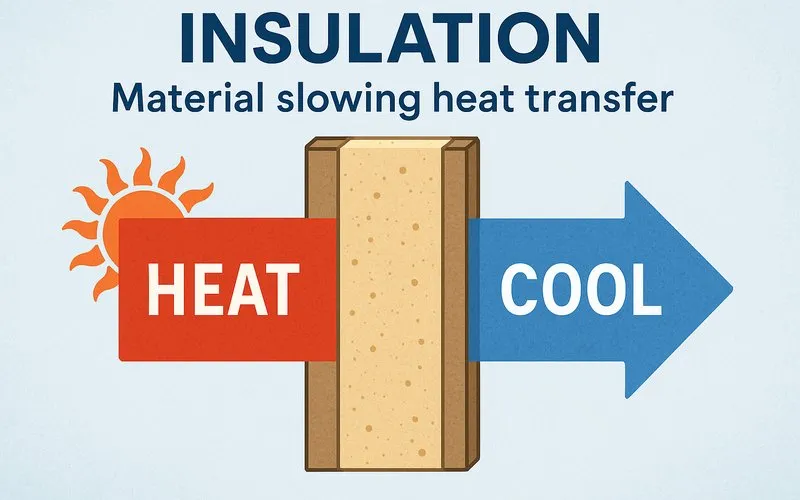

Insulation works by providing a barrier that disrupts one or more of these heat transfer methods. Most common insulation types are great at stopping conduction and convection.
The secret weapon of most insulation is trapped air. Air, when it is still, is a very poor conductor of heat. Good insulators are full of tiny pockets that trap air, preventing it from moving and thus minimizing heat transfer through convection. The more trapped air, the better the insulation.
| Material | How It Works | Common Uses |
|---|---|---|
| Fiberglass | Made from fine glass fibers woven together, creating millions of tiny air pockets. | Attic and wall insulation in houses. |
| Foam Board | Rigid panels of plastic foam (like polystyrene) with a closed-cell structure that traps gas. | Foundation insulation, exterior wall sheathing. |
| Spray Foam | Liquid that expands into a solid foam, filling cracks and gaps perfectly to create an airtight seal. | Around window frames, in hard-to-reach cavities. |
| Reflective Insulation | Has a shiny, metallic surface (like aluminum foil) that reflects radiant heat away. | Attics in hot climates, behind radiators. |
| Down Feathers | The soft undercoating of birds that traps a thick layer of still air close to the body. | High-quality winter jackets and sleeping bags. |
Measuring Insulation Power: The R-Value
How do we know which insulation is better? Scientists and engineers use a standard measurement called the R-value, which stands for Thermal Resistance. The R-value tells you how well a material resists the flow of heat.
- Higher R-value = Better insulation.
- A material with a high R-value will slow down heat transfer much more effectively than a material with a low R-value.
The total R-value of a wall or roof is calculated by adding the R-values of all the different layers of material. For example, if you add more insulation to your attic, you are increasing its total R-value, making your home more energy-efficient. The recommended R-value depends on your local climate.
Insulation in Action: From Homes to Hot Cocoa
Insulation isn't just the pink fluff in your attic. It's a principle used everywhere to save energy and increase comfort.
In Your Home: Proper insulation in walls, attics, and basements acts like a cozy blanket for your house. In winter, it keeps the warm air from your heater inside. In summer, it keeps the hot outdoor air from coming in, so your air conditioner doesn't have to work as hard. This saves a lot of money on energy bills!
In Your Clothing: Your winter coat is a form of personal insulation. Materials like wool, fleece, and down feathers are excellent at trapping a layer of air close to your body. Your body heat warms this layer of air, and the insulation prevents it from escaping, keeping you warm. A wet jacket loses its insulating power because water fills the air pockets and is a much better conductor of heat than air.
In Food Containers: A thermos keeps your hot chocolate hot and your lemonade cold. How? It has a double wall with a vacuum[2] between them. A vacuum is a space with no air, which eliminates both conduction and convection. The inside walls are also reflective to stop radiant heat transfer. This combination effectively isolates the inside from the outside temperature.
Common Mistakes and Important Questions
Q: If insulation traps air, why do we need to ventilate our homes?
This is an excellent question. While a tightly sealed, well-insulated home is great for energy efficiency, it can trap moisture and indoor air pollutants. Proper ventilation, like using exhaust fans in bathrooms and kitchens, is crucial for removing excess humidity and bringing in fresh air, which protects the house structure and keeps the air healthy to breathe. It's about balancing insulation with controlled air exchange.
Q: Can insulation ever be "too thick"?
From a performance standpoint, more insulation (higher R-value) is almost always better. However, there are practical limits. In walls, there's only so much physical space available. In attics, you must leave space for ventilation to prevent moisture buildup. There is also a point of "diminishing returns," where adding more insulation costs more money than it saves on your energy bills over a reasonable time.
Q: Why do metals feel cold to the touch?
A metal object at room temperature feels colder than a wooden object at the same temperature, not because it is colder, but because it is a good conductor of heat. When you touch it, it rapidly draws heat away from your skin, making your skin feel cold. Wood, being a good insulator, draws heat away from your skin much more slowly, so it feels closer to room temperature.
Footnote
[1] Molecules: The smallest particle of a substance that has all of the physical and chemical properties of that substance. It is made up of one or more atoms.
[2] Vacuum: A space entirely devoid of matter, including air. Since heat transfer by conduction and convection requires a medium (like air), a vacuum is an excellent insulator.
