The Elastic Band: A Stretchable Powerhouse
The Science of Stretch: What is Elastic Potential Energy?

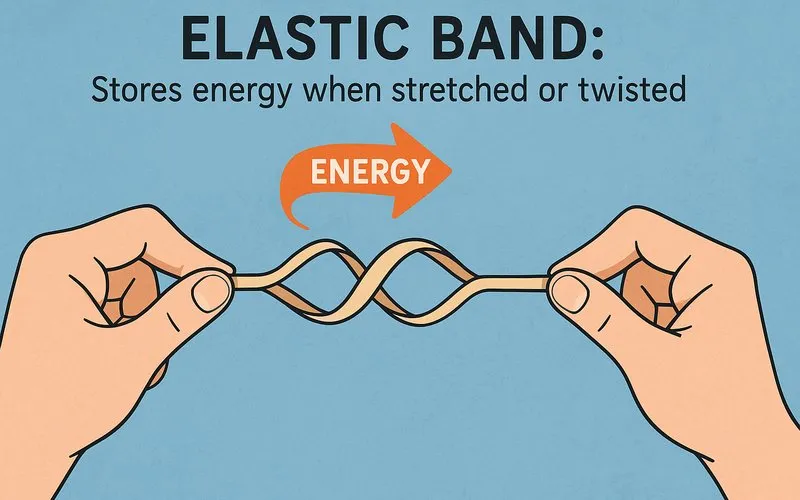

Imagine you are about to launch a paper airplane across the room. To make it fly, you push it with your hand, giving it energy. An elastic band works in a similar way, but it gets its energy from being stretched or twisted. The energy stored in a stretched or compressed object is called elastic potential energy.[1] "Potential" means it has the "potential" to do something later, like make something move.
Think of it like a slingshot. When you pull the rubber band back, you are using your muscles to transfer energy into the band. The band stretches and stores that energy. When you let go, the stored energy is quickly converted into motion, launching the stone forward. This motion energy is called kinetic energy.[2]
The force needed to stretch an elastic band is (mostly) proportional to how far you stretch it. This is described by Hooke's Law: $F = -k x$. Here, $F$ is the force applied, $x$ is the distance the band is stretched, and $k$ is the spring constant, which tells you how stiff the band is. A higher $k$ means a stiffer band that is harder to stretch.
Not all materials are elastic. If you stretch a piece of chewing gum, it doesn't spring back; it stays stretched. This is called plastic deformation. A true elastic material, like a good rubber band, will return to its original shape after the force is removed, which is why it can store and release energy so effectively.
A Molecular Tug-of-War: Why Rubber Bands Snap Back
To understand why an elastic band snaps back, we need to look at its building blocks. Rubber is made of long, chain-like molecules called polymers. Imagine a plate of cooked spaghetti. The strands are all tangled up together.
In its relaxed state, these polymer chains are coiled up in a messy, jumbled state. This is actually their preferred, most comfortable shape. When you stretch the rubber band, you are pulling on these chains, forcing them to uncoil and straighten out. This puts the molecules under tension, like stretching a tangled slinky.
The molecules don't like being in this straightened, organized state. They want to return to their comfortable, tangled mess. So, as soon as you let go, the polymer chains instantly snap back to their original coiled form. This rapid return is what releases the stored energy and causes the band to contract. The energy you used to stretch the band is stored in the stretched molecular bonds, and it's released as heat and motion when the bonds relax.
| Condition | Effect on the Elastic Band | Scientific Reason |
|---|---|---|
| Stretching | Band lengthens and stores energy. | Polymer chains uncoil and align, increasing potential energy. |
| Releasing | Band contracts and releases energy as motion. | Polymer chains snap back to their original, coiled state (entropy[3] increases). |
| Over-stretching | Band becomes permanently deformed or breaks. | The elastic limit is exceeded, causing irreversible damage to polymer bonds. |
| Heating | A stretched band contracts when warmed. | Heat provides energy, making the polymer chains even more eager to return to their high-entropy, coiled state. |
From Toys to Trebuchets: Energy Storage in Action
The principle of storing energy by stretching or twisting is used in countless ways around us. Let's look at some concrete examples that show this principle in action.
1. The Simple Slingshot: This is the most direct example. The further you pull the elastic bands back, the more elastic potential energy you store ($E_p = \frac{1}{2} k x^2$). When released, this energy becomes the kinetic energy of the projectile ($E_k = \frac{1}{2} m v^2$), making it fly away at high speed.
2. A Wind-Up Toy Car: Inside the car, there is a mainspring—a long, coiled strip of metal. When you wind the key, you are twisting this spring, storing energy in it. As the spring slowly unwinds, it releases that energy, which turns the gears and makes the car move.
3. Bungee Jumping: The bungee cord is a giant, super-strong elastic band. When a jumper falls, the cord stretches, converting the jumper's kinetic energy into elastic potential energy. This stored energy then pulls the jumper back up, resulting in a series of thrilling bounces.
4. The Catapult and Trebuchet: Ancient war machines like catapults often used twisted ropes (like a giant rubber band) to store massive amounts of energy. Torsion[4] (twisting) was used to wind up the throwing arm. Releasing this arm transferred the stored elastic energy into the projectile, hurling it great distances.
Common Mistakes and Important Questions
Q: If I stretch a rubber band and hold it stretched for a long time, will it launch an object farther when I finally let go?
A: No, actually the opposite will happen. If you stretch a rubber band and leave it, it will slowly relax and lose its stored energy. This is because the polymer chains slowly slip past each other over time, a phenomenon called stress relaxation. The energy is dissipated as a tiny amount of heat, so when you finally launch your projectile, it will have less energy and not go as far.
Q: Does a thicker rubber band store more energy than a thinner one?
A: Yes, generally. A thicker band has more material, meaning more polymer chains are being stretched. This usually gives it a higher spring constant ($k$). According to the elastic potential energy formula $E_p = \frac{1}{2} k x^2$, for the same stretch distance ($x$), a band with a larger $k$ will store more energy. However, it will also require more force from you to stretch it the same distance.
Q: Where does the energy go if a stretched rubber band doesn't seem to be doing anything?
A: A stretched rubber band is always "doing something" at a molecular level. The stretched polymer bonds are under constant tension. If the band is just sitting still, the energy is entirely stored as potential energy. However, if the band is slowly relaxing, that stored energy is being converted into a very small amount of heat due to friction between the moving polymer chains.
The humble elastic band is a perfect demonstration of a fundamental law of physics: the conservation of energy. Energy cannot be created or destroyed, only transferred or transformed. When you stretch a band, you are transforming the chemical energy from your muscles into elastic potential energy within the band. This energy is not lost; it is stored, waiting to be transformed again into kinetic energy, sound, and heat. From powering a child's toy to inspiring complex engineering designs, the principle of elastic energy storage is a powerful and ubiquitous force in our world, all contained within a simple loop of rubber.
Footnote
[1] Elastic Potential Energy (EPE): The energy stored in an elastic object when it is stretched or compressed. It is a form of potential energy.
[2] Kinetic Energy (KE): The energy an object possesses due to its motion. It depends on the mass and velocity of the object, calculated as $KE = \frac{1}{2}mv^2$.
[3] Entropy: A scientific concept that measures the level of disorder or randomness in a system. In rubber, the polymer chains are in a state of higher entropy when they are coiled and tangled, which is why they snap back to that state after being stretched.
[4] Torsion: The action of twisting or the state of being twisted, especially of one end of an object relative to the other. It is a method of storing elastic potential energy.
