Potential Energy: The Energy of Position
What Exactly is Potential Energy?

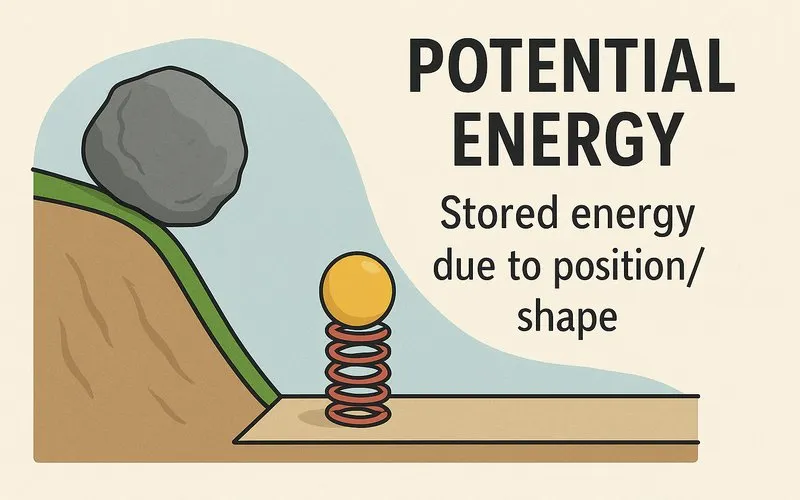

Imagine you are holding a heavy book above the floor. Even though the book is not moving, you can feel that it has the potential to do something. If you let it go, it will fall to the floor with a bang. This "potential" is a real, measurable form of energy called potential energy. It is the energy that is stored in an object because of its position, shape, or state.
Think of it as energy that is being kept in reserve. The book on the high shelf has more stored energy than the same book on a low table. A stretched spring in a toy car has stored energy that will be released to make the car move. The key idea is that this energy is not being used right now, but it is ready to be converted into other forms, like motion (kinetic energy), sound, or heat.
The Two Main Types of Potential Energy
While there are several forms of potential energy (like chemical energy in batteries), the two most common types encountered in basic physics are gravitational potential energy and elastic potential energy.
Gravitational Potential Energy (GPE)
This is the energy stored in an object when it is raised above a reference point, like the ground. The higher the object is lifted, the more work was done against the force of gravity, and the more energy is stored. The amount of GPE depends on three things:
- Mass (m): The heavier the object, the more energy it can store. A bowling ball has more GPE than a tennis ball held at the same height.
- Height (h): The higher the object is lifted, the more GPE it gains. A plane in the sky has immense GPE.
- Gravitational Field Strength (g): This is the strength of gravity. On Earth, this value is approximately 9.8 m/s2. It would be different on the Moon, where gravity is weaker.
The Gravitational Potential Energy Formula:
The formula for calculating GPE is:
Where:
- GPE is Gravitational Potential Energy, measured in Joules (J)[1].
- m is mass, measured in kilograms (kg).
- g is gravitational field strength, measured in meters per second squared (m/s2).
- h is height, measured in meters (m).
Elastic Potential Energy
This is the energy stored in an object when it is stretched, compressed, bent, or twisted. The object must be elastic, meaning it can return to its original shape after the force is removed. Think of a stretched rubber band, a compressed spring, or a drawn bowstring. When you release it, the stored elastic potential energy is transformed into kinetic energy.
The amount of elastic potential energy depends on:
- The Spring Constant (k): This measures how stiff the spring is. A stiffer spring (higher k) is harder to stretch and can store more energy.
- The Displacement (x): This is how far the spring is stretched or compressed from its normal, resting position.
The Elastic Potential Energy Formula:
The formula for calculating the energy stored in a spring is:
Where:
- EPE is Elastic Potential Energy, measured in Joules (J).
- k is the spring constant, measured in Newtons per meter (N/m).
- x is the displacement from the equilibrium position, measured in meters (m).
Comparing Gravitational and Elastic Potential Energy
To better understand the differences and similarities, let's look at them side-by-side.
| Feature | Gravitational Potential Energy | Elastic Potential Energy |
|---|---|---|
| Source | Object's height in a gravitational field. | Deformation of an elastic object (stretching/compressing). |
| Depends On | Mass (m), gravity (g), height (h). | Spring constant (k), displacement (x). |
| Formula | $ GPE = m g h $ | $ EPE = \frac{1}{2} k x^2 $ |
| Real-World Example | Water behind a dam; a roller coaster at the top of a hill. | A drawn archery bow; a compressed shock absorber. |
| Zero-Point | Arbitrary (usually the lowest point considered). | The object's natural, unstretched length. |
Potential Energy in Action: From Playgrounds to Power Grids
Let's trace the journey of potential energy through a few practical scenarios to see how it transforms and interacts with other energy forms.
Scenario 1: The Roller Coaster
A roller coaster train is slowly pulled up to the top of the first hill. This is where work is done against gravity, giving the train a massive amount of gravitational potential energy. At the peak, the GPE is at its maximum. As the train plunges down the hill, this stored energy is rapidly converted into kinetic energy, making the train go faster and faster. At the bottom of the hill, the GPE is at its minimum, and the kinetic energy is at its maximum. As it climbs the next hill, the kinetic energy is converted back into gravitational potential energy, slowing the train down. This conversion between potential and kinetic energy continues for the entire ride.
Scenario 2: The Hydroelectric Dam
This is a large-scale example of GPE. Water is collected in a reservoir high above the dam, giving it immense gravitational potential energy. When gates in the dam are opened, the water falls downward through large pipes called penstocks. As it falls, its GPE is converted into kinetic energy. This fast-moving water then spins giant turbines, which are connected to generators. The generators convert the kinetic energy of the spinning turbines into electrical energy, which is then sent to our homes. The potential energy of the water is literally powering our cities.
Scenario 3: The Pole Vaulter
A pole vaulter is a great example of multiple energy transformations. The athlete runs, building up kinetic energy. They then plant a flexible fiberglass pole into the ground. The kinetic energy is transferred into the pole, bending it and storing elastic potential energy. As the pole straightens back to its original shape, this elastic potential energy is converted back into kinetic energy and, more importantly, into gravitational potential energy, lifting the athlete high over the bar.
Common Mistakes and Important Questions
Q: If potential energy is stored, where is it stored? In the object or in the field?
This is a subtle but important point. For gravitational potential energy, the energy is stored in the system—the object and the Earth together. You cannot have GPE without the gravitational field created by the Earth. For elastic potential energy, the energy is stored within the object itself, in the stretched or compressed molecular bonds of the material.
Q: Can potential energy be negative?
Yes, but it depends on where you set the "zero point." Since we usually measure height from the ground, GPE is typically positive. However, if you set your zero point at the top of a cliff and consider an object falling into a canyon, the height (h) below your zero point would be negative, resulting in negative GPE. The important thing is the change in potential energy, which remains consistent regardless of the chosen zero point.
Q: Is the mass in the GPE formula the same as weight?
A common mistake is to confuse mass and weight. Mass (m) is the amount of matter in an object and is measured in kilograms (kg). Weight is a force—the force of gravity acting on that mass—and is measured in Newtons (N). The formula for weight is $ W = m \times g $. So, while they are related, you must use mass (in kg) in the GPE formula, not weight.
Potential energy is a powerful and intuitive concept that explains how energy can be stored and later released. From the simple act of lifting a book to the complex engineering of a hydroelectric dam, the principles of gravitational and elastic potential energy are constantly at work around us. Understanding that energy is not always visible as motion, but can be held in reserve due to an object's position or shape, is a fundamental step in grasping the law of conservation of energy. This law tells us that energy is never created or destroyed, only transformed from one form to another, and potential energy is a key player in this never-ending cycle.
Footnote
[1] Joules (J): The standard unit of energy and work in the International System of Units (SI). One Joule is defined as the amount of work done when a force of one Newton displaces an object by one meter in the direction of the force.
