Understanding Chords in Circles
What Exactly is a Chord?

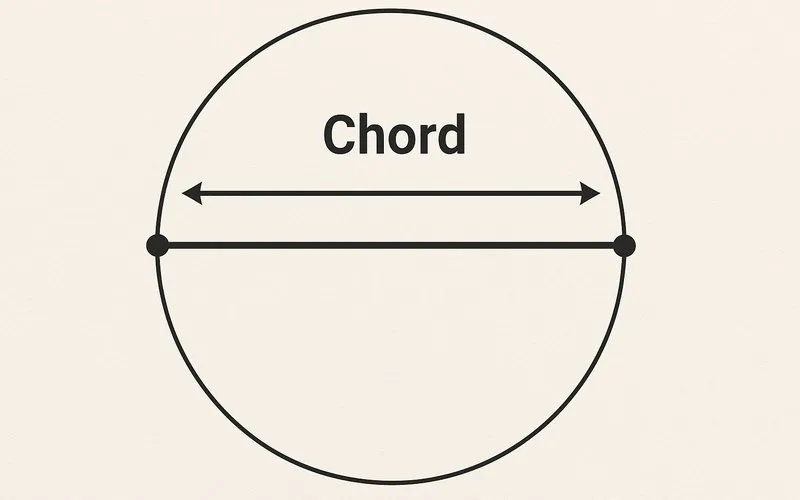

Imagine you have a perfectly round pizza. If you were to make a straight cut from one edge to another without going through the center, the line where you cut would be a chord. Formally, a chord is a straight line segment whose endpoints both lie on the circumference of a circle. It's like a bridge connecting two points on the circular boundary.
Every chord lies entirely inside the circle, and a single circle can have an infinite number of chords of different lengths. The length of a chord depends on how far apart the two endpoints are from each other along the circle. The farther apart the points, the longer the chord will be.
Chords and Their Circle Family
To understand chords better, we need to see how they relate to other important parts of a circle. The most special chords are those that pass through the center of the circle, which we call diameters. A diameter is actually the longest possible chord in any circle.
| Term | Definition | Relationship to Chord |
|---|---|---|
| Radius | Segment from center to circumference | Helps calculate chord length |
| Diameter | Chord through the center | Longest possible chord |
| Arc | Part of circumference between chord endpoints | Each chord subtends an arc |
| Sector | Region bounded by two radii and an arc | Chord forms base of circular segment |
The radius (plural: radii) is a line from the center to the circumference. When we draw two radii to the endpoints of a chord, they form an isosceles triangle with the chord as its base. This relationship becomes very important when we want to calculate the length of a chord.
Calculating Chord Lengths
As we move into more advanced mathematics, we can calculate the exact length of a chord using some simple formulas. If we know the radius of the circle and the distance from the center to the chord, we can use the Pythagorean theorem to find the chord length.
Consider a circle with center O and radius r. Draw a chord AB at a perpendicular distance d from the center. The line from the center perpendicular to the chord bisects it (cuts it exactly in half). This creates two right triangles.
Using the Pythagorean theorem: $(\frac{AB}{2})^2 + d^2 = r^2$
Solving for the chord length $AB$: $AB = 2\sqrt{r^2 - d^2}$
Important Theorems About Chords
Geometry has several important theorems that describe the properties of chords and their relationships within circles. These theorems help us solve complex problems and understand the elegant symmetry of circles.
Theorem 1: Perpendicular Bisector Theorem
The perpendicular from the center of a circle to a chord bisects the chord. Conversely, the line joining the center of a circle to the midpoint of a chord is perpendicular to the chord. This is why $OC$ is perpendicular to $AB$ and $AC = CB$ in our earlier example.
Theorem 2: Equal Chords Theorem
Chords that are equal in length are equidistant from the center of the circle. Conversely, chords equidistant from the center are equal in length. If $AB = CD$, then the distance from center $O$ to $AB$ equals the distance from $O$ to $CD$.
Theorem 3: Intersecting Chords Theorem
When two chords intersect inside a circle, the products of the lengths of their segments are equal. If chords $AB$ and $CD$ intersect at point $P$, then $AP \times PB = CP \times PD$.
Chords in the Real World
Chords aren't just abstract mathematical concepts - they appear frequently in our daily lives and in various fields of science and engineering.
Architecture and Engineering:
Arches in bridges and buildings often form circular segments. The chord represents the span or opening of the arch. Engineers use chord properties to calculate loads and stresses in arched structures. The famous Roman aqueducts used circular arches where understanding chord properties was essential for stability.
Music and Sound:
In string instruments like guitars and violins, the strings themselves are chords in the geometric sense - straight lines with endpoints on the instrument's body. When a musician presses a string against a fret, they're effectively creating a shorter chord, which produces a higher pitch.
Sports:
In basketball, the free-throw line forms a chord of the larger circle that makes up the three-point line. In soccer, the center circle has a diameter (special chord) through the middle, and the penalty arc is part of a circle where the penalty spot lies on a chord.
Navigation and Astronomy:
Ancient navigators used the concept of a great circle[1] - the largest possible circle on a sphere. Any route between two points along a great circle is the shortest distance, and these routes are essentially chords of smaller circles on the globe.
Common Mistakes and Important Questions
Q: Is every diameter a chord? Is every chord a diameter?
Yes, every diameter is a chord because it fits the definition: a straight line segment with both endpoints on the circle. However, NOT every chord is a diameter. A diameter is a special chord that passes through the center of the circle. Think of it this way: all diameters are chords, but only the chords that go through the center are diameters.
Q: What's the difference between a chord and a secant?
A chord is a segment whose endpoints lie on the circle, so it's completely inside the circle (except for its endpoints). A secant is a line that intersects a circle at two points, so it continues infinitely in both directions beyond the circle. You can think of a chord as the segment of a secant that lies inside the circle.
Q: How many chords can a circle have?
A circle has an infinite number of chords. For any two distinct points on a circle, you can draw a chord between them. Since there are infinite points on a circle's circumference, there are infinite pairs of points, and therefore infinite possible chords.
Q: What is the relationship between a chord and its corresponding arc?
Every chord divides the circle into two arcs: a minor arc (the smaller one) and a major arc (the larger one). The chord is said to subtend both of these arcs. In a circle, equal chords subtend equal arcs, and vice versa. The central angle corresponding to a chord is the angle formed at the center by the radii drawn to the chord's endpoints.
Chords are fundamental building blocks in the geometry of circles, serving as bridges between points on the circumference. From the special case of the diameter to the general chord whose length we can calculate using the Pythagorean theorem, these segments reveal the beautiful symmetry and mathematical precision of circular forms. Understanding chords and their properties - including the perpendicular bisector theorem, equal chords theorem, and intersecting chords theorem - provides essential tools for solving geometric problems and appreciating the mathematical patterns in our world. Whether in architectural designs, musical instruments, or sports fields, the concept of chords continues to find practical applications that demonstrate the enduring relevance of classical geometry.
Footnote
[1] Great Circle: A circle on the surface of a sphere that lies in a plane passing through the sphere's center. Great circles have the same circumference as the sphere itself and divide it into two equal hemispheres. The equator and all lines of longitude are examples of great circles on Earth.
[2] Subtend: In geometry, when a line or segment "subtends" an angle, it means the angle is formed by lines drawn from the endpoints of the segment to a common point. A chord subtends a central angle at the circle's center and also subtends an inscribed angle at any point on the opposite arc.
