The World of Regular Polygons

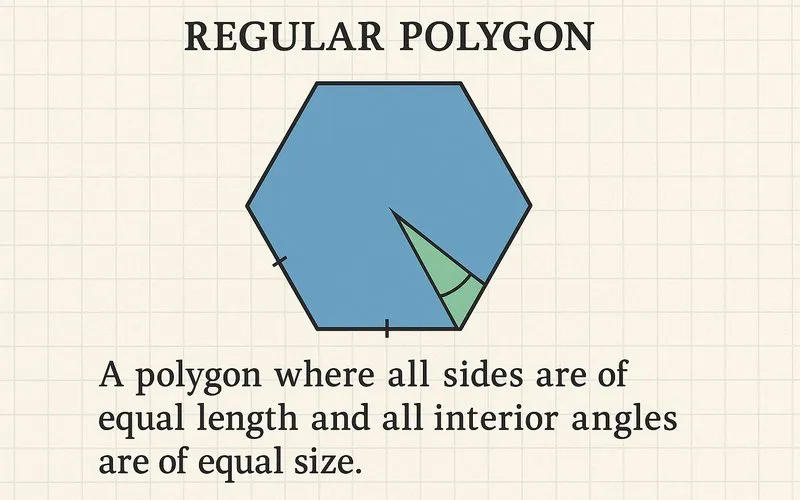

What Defines a Regular Polygon?
A regular polygon is a two-dimensional, closed figure with straight sides that has two very special properties: all of its sides are of equal length, and all of its interior angles are of equal size. This combination creates a shape of perfect symmetry and balance. Think of a standard stop sign; its familiar octagonal shape is the same no matter how you rotate it. This is a classic example of a regular polygon.
To be a polygon at all, a shape must be flat (planar), closed (the lines connect to form a loop), and have straight sides. A regular polygon takes this a step further by imposing strict rules of equality on those sides and angles. The simplest regular polygon is the equilateral triangle, followed by the square. As the number of sides increases, the polygon begins to look more and more like a circle.
The Family of Regular Polygons
Regular polygons are named based on the number of sides they have. This family of shapes ranges from the simple triangle to shapes with so many sides they appear circular. Each member of this family has its own unique properties and name.
| Number of Sides | Name | Each Interior Angle | Real-World Example |
|---|---|---|---|
| 3 | Equilateral Triangle | 60° | Toblerone chocolate bar end |
| 4 | Square | 90° | Chessboard square |
| 5 | Regular Pentagon | 108° | The Pentagon building |
| 6 | Regular Hexagon | 120° | Honeycomb cell |
| 8 | Regular Octagon | 135° | Stop sign |
The Mathematics of Angles and Area
The symmetry of regular polygons allows us to derive powerful formulas to calculate their interior angles and area. These formulas depend on a single key variable: the number of sides, denoted by $n$.
Example: For a regular pentagon ($n=5$), each interior angle is $ \frac{(5-2) \times 180^\circ}{5} = \frac{3 \times 180^\circ}{5} = \frac{540^\circ}{5} = 108^\circ $.
Example: A regular hexagon with a side length of 4 cm has a perimeter of $6 \times 4 = 24$ cm. If its apothem is $3.46$ cm, its area is $ \frac{1}{2} \times 24 \times 3.46 = 41.52 $ cm$^2$.
Regular Polygons in the World Around Us
Regular polygons are not just mathematical abstractions; they are fundamental building blocks in nature, design, and engineering. Their efficiency and strength make them incredibly useful.
In Nature:
- Honeycombs: Bees construct their hives from regular hexagons. This shape allows them to use the least amount of wax to create the most storage space, a marvel of natural engineering.
- Snowflakes: While each snowflake is unique, they almost always display a hexagonal (6-sided) symmetry due to the molecular structure of water ice.
- Basalt Columns: The Giant's Causeway in Northern Ireland features thousands of interlocking hexagonal columns formed by the cooling of volcanic lava.
In Human Design:
- Architecture: The Pentagon building in the USA is perhaps the world's most famous pentagon. Many fountains and plazas are designed with octagonal or hexagonal patterns for aesthetic appeal.
- Engineering: Nuts and bolts often have a hexagonal head because the six sides provide multiple angles for tools to grip, making them easy to tighten and loosen.
- Sports: A soccer ball is traditionally made from a combination of regular pentagons and hexagons, forming a shape known as a truncated icosahedron.
Constructing and Identifying Regular Polygons
Creating a perfect regular polygon requires precision. For simple shapes like equilateral triangles and squares, you can use a ruler and a protractor. For more complex polygons, geometric construction with a compass and straightedge is a classical method.
To identify if a given polygon is regular, you should check for:
- Side Congruence: Measure all the sides. They must all be exactly the same length.
- Angle Congruence: Measure all the interior angles. They must all be exactly the same size.
- Symmetry: A regular polygon has rotational symmetry, meaning it looks the same after being rotated by a certain angle. It also has multiple lines of reflectional symmetry[2].
For example, a rectangle has equal angles (90°) but not necessarily equal sides, so it is not a regular polygon unless it is a square. A rhombus has equal sides but not necessarily equal angles, so it is also not regular unless it is a square.
Common Mistakes and Important Questions
Q: Is a circle a regular polygon?
No, a circle is not a polygon. A polygon, by definition, must have straight sides. A circle is a curved shape. However, a circle can be thought of as the limit of a regular polygon as the number of sides approaches infinity. As you add more and more sides to a regular polygon, its shape gets closer and closer to that of a perfect circle.
Q: What is the difference between a regular and an irregular polygon?
The difference is all about consistency. A regular polygon is like a perfectly trained marching band: every member (side) is the same, and every step (angle) is identical. An irregular polygon is like a casual group of friends walking together: the sides can be different lengths, and the angles between them can vary. A rectangle that isn't a square is irregular, as is a scalene triangle.
Q: What is the most common error when calculating the interior angle?
The most common error is using the wrong formula or misremembering the sum of interior angles. Remember, the formula for a single interior angle in a regular polygon is $\frac{(n-2) \times 180^\circ}{n}$. A frequent mistake is to calculate $\frac{360^\circ}{n}$ instead, but that formula gives you the central angle (the angle at the center of the polygon, from one side to the next), not the interior angle.
Regular polygons are a cornerstone of geometry, representing an ideal of symmetry, balance, and efficiency. From the fundamental equilateral triangle to the near-circular shapes with many sides, they are defined by their equal sides and equal angles. Understanding their properties—such as how to calculate interior angles and area—unlocks a deeper appreciation for the patterns we see in both the natural and human-made world. Whether in the structure of a honeycomb, the design of a stop sign, or the layout of a soccer ball, regular polygons demonstrate how mathematical principles shape our reality in beautiful and practical ways.
Footnote
[1] Apothem: The apothem of a regular polygon is a line segment from the center of the polygon to the midpoint of one of its sides. It is perpendicular to that side. The apothem is essential for calculating the area of a regular polygon.
[2] Lines of Reflectional Symmetry: A line of reflectional symmetry is an imaginary line where you can fold a shape, and both halves match up perfectly. A square has 4 lines of symmetry, while a regular pentagon has 5.
