Convection: The Invisible Engine of Heat
What is Convection and How Does It Work?
Heat always moves from a warmer area to a cooler one. While conduction transfers heat through direct contact (like a metal spoon in a hot soup) and radiation transfers heat through invisible waves (like the warmth from the sun), convection is unique because it requires the physical movement of a fluid.
The entire process can be broken down into a simple, repeating cycle:
- Heating: A fluid is heated from below or from one side. The molecules in the fluid gain energy, move faster, and spread out.
- Expansion and Rising: This increased molecular motion causes the fluid to expand. As it expands, its density (mass per unit volume) decreases. This warmer, less dense fluid becomes buoyant and rises above the cooler, denser fluid.
- Cooling: The warm fluid travels away from the heat source and begins to lose its thermal energy to its surroundings.
- Contraction and Sinking: As it cools, the fluid contracts, its density increases, and it sinks back down towards the heat source.

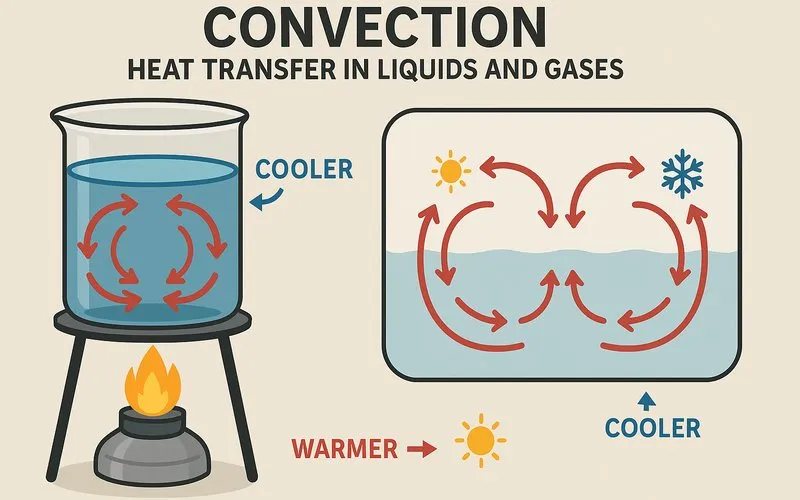

This cycle of rising and sinking creates a circular motion known as a convection current. It is the engine that drives convective heat transfer.
Natural vs. Forced Convection: Two Sides of the Same Coin
Convection can be categorized into two main types based on what causes the fluid to move.
Natural Convection
This occurs purely due to density differences, without any external machinery. The fluid moves under its own power, driven by buoyancy.
Examples:
- Boiling Water: The water at the bottom of the pot is heated by the stove. It becomes less dense, rises to the surface, releases heat, cools, and then sinks again, creating the rolling motion you see.
- Sea Breeze: During the day, the land heats up faster than the sea. The air above the land becomes warm and rises. Cooler, denser air from over the sea moves in to take its place, creating a refreshing breeze from the sea to the land.
- Radiator Heating: A radiator heats the air around it. The warm air rises, circulating around the room, while cooler air falls towards the radiator to be heated, creating a continuous flow that warms the entire space.
Forced Convection
This occurs when an external device, like a fan or a pump, is used to speed up the movement of the fluid, dramatically increasing the rate of heat transfer.
Examples:
- Forced-Air Furnace: A fan (a blower) actively pushes warm air through ducts and into the rooms of a house. This is much more efficient than relying on natural convection alone.
- Car Radiator: A water pump circulates coolant through the engine, and a fan blows air across the radiator fins to pull heat away from the coolant quickly.
- Blow Drying Your Hair: A fan inside the hair dryer forces hot air over your wet hair, accelerating the evaporation process.
| Feature | Natural Convection | Forced Convection |
|---|---|---|
| Driving Force | Buoyancy (density differences) | External device (fan, pump) |
| Fluid Speed | Relatively slow | Fast |
| Heat Transfer Rate | Lower | Higher |
| Energy Consumption | None (passive) | Requires energy to run the device |
| Examples | Boiling water, weather systems | Car radiator, air conditioner |
Convection in Action: From Our Homes to Our Planet
Convection is not just a scientific concept; it's a powerful force that operates all around us. Let's explore some of its most impactful applications.
Weather and Climate Systems
The Earth's atmosphere is a giant fluid system, and convection is one of the primary engines of weather. The sun heats the Earth's surface unevenly. The equator receives more direct sunlight than the poles. This sets up massive global convection currents.
- Wind Formation: As described in the sea breeze example, localized heating and cooling create wind patterns.
- Clouds and Thunderstorms: On a hot day, the ground heats a parcel of air near the surface. If this air becomes warm and moist enough, it rises rapidly in a powerful updraft. As it rises to higher, cooler altitudes, the water vapor condenses to form clouds. Intense convection can lead to the towering cumulonimbus clouds of thunderstorms.
- Global Convection Cells: These are large-scale patterns of air circulation that transport heat from the equator to the poles. The Hadley Cell, Ferrel Cell, and Polar Cell are the three major convection cells in each hemisphere that define our planet's climate zones.
Ocean Currents
Similar to the atmosphere, the oceans also have convection currents, known as thermohaline circulation. "Thermo" refers to temperature, and "haline" refers to salinity (saltiness). Both factors affect the density of seawater.
In the North Atlantic, warm surface water flows northward. As it reaches colder regions, it loses heat to the atmosphere and cools. This cooling, combined with an increase in salinity from ice formation, makes the water very dense. This dense water sinks to the deep ocean and begins a slow global journey, redistributing heat and nutrients around the world. This "global conveyor belt" is a critical component of Earth's climate system.
Geological Forces: Mantle Convection
Even the ground beneath our feet is moved by convection, albeit on a much slower timescale. The Earth's mantle, the layer between the crust and the core, is composed of solid but hot rock that can flow very slowly over millions of years, a property known as plasticity.
Heat from the Earth's core causes the rock in the mantle to become less dense and slowly rise. As it nears the crust, it cools, becomes denser, and sinks back down. These massive, sluggish convection currents are the driving force behind plate tectonics[1]. They cause the continents to drift, create mountains and volcanoes at plate boundaries, and are responsible for earthquakes.
The Mathematics of Moving Heat
For students ready to explore a more quantitative side, the rate of heat transfer through convection can be described by Newton's Law of Cooling. It states that the rate of heat loss (or gain) of an object is proportional to the difference between its own temperature and the temperature of its surroundings.
Formula: The convective heat transfer rate is given by:
$ Q = h \cdot A \cdot (T_{surface} - T_{fluid}) $
Where:
- Q is the heat transfer rate (in Watts, W).
- h is the convective heat transfer coefficient (in W/m²·K). This value depends on the fluid's properties and the flow conditions (natural or forced).
- A is the surface area in contact with the fluid (in square meters, m²).
- $ T_{surface} $ is the temperature of the surface (in Kelvin, K, or Celsius, °C).
- $ T_{fluid} $ is the temperature of the fluid far from the surface (in K or °C).
This formula shows us two key things: 1) A larger temperature difference drives faster heat transfer, and 2) A larger surface area allows for more heat to be exchanged. This is why radiators have fins—to maximize surface area A.
Common Mistakes and Important Questions
Q: Is convection the same as conduction through a fluid?
A: No, this is a common confusion. Conduction in a fluid involves heat being passed from one molecule to the next through direct collision, but the bulk fluid does not move. Convection involves the bulk movement of the fluid itself, carrying heat with it. In reality, most convective processes involve some conduction at the boundary where the fluid meets a solid surface.
Q: Can convection happen in solids?
A: Generally, no. Convection requires the particles of a material to be able to move freely from one place to another. In a solid, the particles are locked in a fixed position and can only vibrate. They cannot flow to create a current. Therefore, heat transfer in solids occurs primarily through conduction.
Q: Why does warm air rise? Isn't hot air attracted to cold air?
A: Warm air rises not because it is "attracted" upwards, but because it is less dense than the cooler air around it. It's a battle of buoyancy, not attraction. Think of a cork in water—the cork rises because it is less dense than water, not because the water's surface is pulling it up. Similarly, warm air is like the cork, and the cooler, denser air is like the water.
Footnote
[1] Plate Tectonics: A scientific theory describing the large-scale motion of the plates making up the Earth's lithosphere. This motion is driven primarily by convection currents in the underlying mantle.
