Thermal Insulators: The Science of Staying Warm or Cool
The Fundamentals of Heat Transfer
To understand how an insulator works, we first need to know how heat moves. Heat is a form of energy that always flows from a warmer area to a cooler area until both areas are the same temperature. This process is called heat transfer, and it happens in three main ways:
| Method | How It Works | Everyday Example |
|---|---|---|
| Conduction | Heat transfer through direct contact between molecules. When one molecule vibrates with heat energy, it bumps into its neighbor and passes that energy along. | The metal handle of a pot on a hot stove becomes hot. |
| Convection | Heat transfer by the movement of fluids (liquids or gases). Warmer, less dense fluid rises, and cooler, denser fluid sinks, creating a circular current. | Hot air rising and cool air falling in a room, or water boiling in a kettle. |
| Radiation | Heat transfer through electromagnetic waves. This does not require any medium (like air) to travel through. | Feeling the warmth of the sun on your skin. |

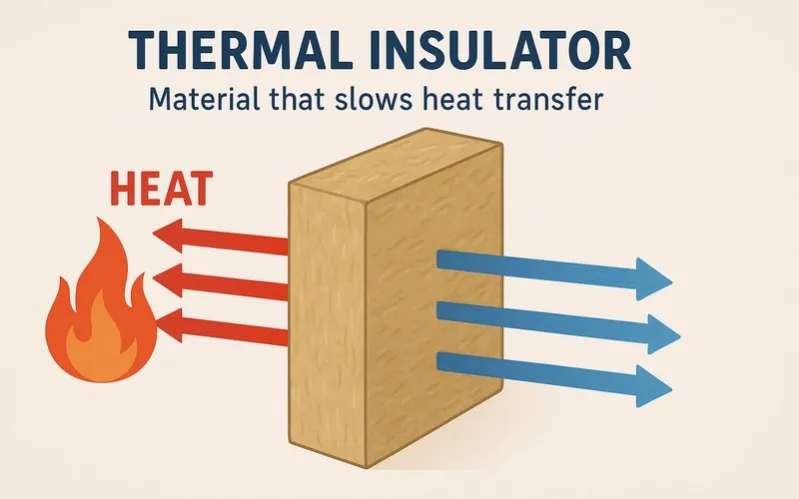

A thermal insulator is designed to be a barrier against one or more of these methods. Good insulators are often materials that contain millions of tiny air pockets, because air is a poor conductor of heat. By trapping air, the insulator prevents it from moving and transferring heat via convection, while the material itself slows down conduction.
The effectiveness of an insulating material is often measured by its R-value (Thermal Resistance). A higher R-value means a greater resistance to heat flow and better insulating power. It's like a rating for how good a "heat blocker" the material is.
How Different Insulating Materials Work
Not all insulators are created equal. They are made from different substances and work by exploiting different properties to slow down heat. The key is to create a structure that minimizes conduction and convection. Many insulators are full of tiny, trapped pockets of gas (like air or special gases).
| Material | How It Insulates | Common Uses |
|---|---|---|
| Fiberglass | Made from extremely fine glass fibers. It traps millions of small air pockets, drastically reducing heat transfer by conduction and convection. | Wall and attic insulation in houses. |
| Polystyrene Foam (Styrofoam) | A plastic filled with about 95% air bubbles. The plastic walls of the bubbles are poor conductors, and the trapped air cannot circulate. | Coffee cups, coolers, and building insulation panels. |
| Mineral Wool | Similar to fiberglass but made from rock or slag. It is fire-resistant and excellent at trapping air. | Fireproofing and high-temperature insulation in pipes and ovens. |
| Down Feathers | The fluffy underside of bird feathers. They create a loft that traps a thick layer of air close to the body, preventing convection. | Winter jackets and sleeping bags. |
| Aerogel | One of the best insulators known, often called "frozen smoke." It is over 90% air, but the air is trapped in a nano-sized solid network, leaving very little material for heat to conduct through. | Spacecraft insulation, scientific equipment, and high-performance apparel. |
Insulators in Action: From Homes to Outer Space
Thermal insulators are not just abstract scientific concepts; they are all around us, playing a vital role in our daily comfort, safety, and technology.
In Our Homes: The walls of your house are likely filled with fiberglass or foam insulation. This layer acts like a warm sweater for your home, keeping the heat inside during winter and the hot air outside during summer. This saves a tremendous amount of energy that would otherwise be needed for heating and cooling, which also saves money and reduces pollution. Double-paned windows are another great example. The space between the two panes of glass is often filled with a heavy gas like Argon, which is a better insulator than air, and it prevents convection currents from forming.
In Clothing: Your winter coat is a personal insulator. Materials like wool, down, and synthetic fleece work by trapping your body heat in a layer of still air within the fabric's fibers. The thicker and "fluffier" the material (its loft), the more air it can trap, and the warmer you will be. A wet coat is a poor insulator because water, which is a good conductor of heat, replaces the trapped air and draws heat away from your body much faster.
In Food and Drink: A Styrofoam cooler keeps ice from melting by slowing down the heat transfer from the outside warm air to the inside cold ice. Similarly, a Thermos flask has a double wall with a vacuum between them. A vacuum is a space with no air or other matter, which means it stops both conduction and convection. The inner walls are also silvered to reflect radiant heat, keeping hot drinks hot and cold drinks cold.
In Extreme Environments: The Space Shuttle used special silica aerogel tiles to withstand the extreme heat of re-entry into the Earth's atmosphere, which can reach 1,650 °C (3,000 °F). Firefighters' suits are made with advanced insulating materials that can protect them from intense heat and flames.
Common Mistakes and Important Questions
Q: If an insulator stops heat from getting out, does it also stop heat from getting in?
Yes, absolutely! A thermal insulator simply resists the flow of heat, regardless of the direction. The insulation in your house walls works both ways: it keeps heat inside during winter and keeps heat outside during summer. A Thermos flask works the same way to maintain the temperature of its contents, whether they are hot or cold.
Q: Is air a good or bad conductor of heat?
Air is a very poor conductor of heat, which is why trapping air is the key to many insulating materials. However, if air is allowed to move freely, it can transfer heat very effectively through convection (think of a breeze making you feel colder). The goal of an insulator like fiberglass or down feathers is to trap the air in small, stationary pockets, preventing convection and taking advantage of air's poor conductivity.
Q: Are metals good thermal insulators?
No, in fact, most metals are excellent thermal conductors, which is the opposite of an insulator. This is why a metal spoon left in a hot pot becomes too hot to touch. Materials that are good electrical conductors, like copper and aluminum, are usually also good thermal conductors. Insulators are typically non-metallic materials like wood, plastic, rubber, glass, and ceramics.
Thermal insulators are fundamental to modern life. By understanding the principles of heat transfer—conduction, convection, and radiation—we can see how materials that trap air or create a vacuum form a powerful barrier against energy flow. From the fiberglass in our attics to the foam in our coffee cups and the advanced aerogels protecting spacecraft, these materials allow us to control our environment, conserve energy, and push the boundaries of technology. The next time you put on a cozy sweater or drink from a Thermos, you'll appreciate the simple yet profound science of the thermal insulator at work.
Footnote
1 R-value: Thermal Resistance Value. A measure of an insulating material's ability to resist heat flow. The higher the R-value, the greater the insulating power.
2 Aerogel: A synthetic porous ultralight material derived from a gel, in which the liquid component has been replaced with a gas. It is known for its extremely low density and low thermal conductivity.
3 Convection: The transfer of heat by the physical movement of a fluid (liquid or gas) from one place to another.
