The Angle Bisector: Geometry's Perfect Divider
What Exactly is an Angle Bisector?

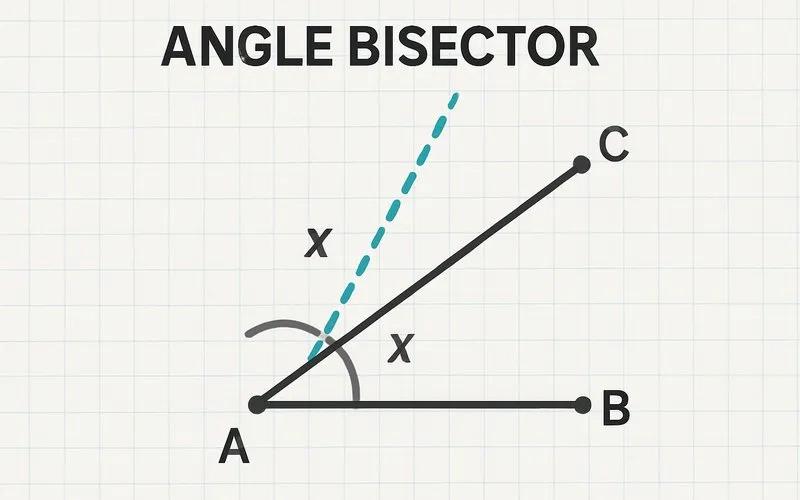

Imagine you have a pizza slice. If you cut it perfectly down the middle from the tip to the crust, you've created two smaller slices that are exactly the same size. In geometry, this "perfect cut" is called an angle bisector. More formally, an angle bisector is a ray, line, or line segment that divides an angle into two equal angles, each having exactly half the measure of the original angle.
If you start with an angle measuring $80^ˆ$, its bisector will create two angles of $40^ˆ$ each. The mathematical relationship is simple: if an angle measures $x^ˆ$, its bisector creates two angles each measuring $\frac{x}{2}^ˆ$. The bisector always starts from the vertex[1] of the angle and extends inward, cutting through the angle's interior.
Constructing an Angle Bisector Step by Step
One of the most beautiful aspects of geometry is that you can construct an angle bisector using only a compass and straightedge, without needing to measure the angle with a protractor. This method has been used for thousands of years and demonstrates the power of geometric principles.
The Classic Compass Construction:
- Place the compass point on the vertex of the angle (point $B$).
- Draw an arc that crosses both sides of the angle. Label these intersection points $P$ and $Q$.
- Place the compass point on point $P$ and draw an arc inside the angle.
- Without changing the compass width, place the compass point on point $Q$ and draw another arc that intersects the first arc. Label this intersection point $R$.
- Draw a straight line from the vertex $B$ through point $R$. This line $BR$ is the angle bisector.
This construction works because it creates two congruent triangles, ensuring that the two resulting angles are equal. The method is exact and doesn't depend on measurement, making it a pure geometric construction.
Angle Bisectors in Triangles: The Incenter
When we work with triangles, angle bisectors become particularly important. Every triangle has three angle bisectors - one from each vertex. These three bisectors have a remarkable property: they always meet at a single point inside the triangle called the incenter.
| Feature | Description | Significance |
|---|---|---|
| Incenter | Point where all three angle bisectors intersect | Center of the inscribed circle (incircle) |
| Incircle | Circle tangent to all three sides of the triangle | Largest circle that fits inside the triangle |
| Equal Distances | Distance from incenter to each side is equal | This distance equals the incircle's radius |
The incenter is always located inside the triangle, regardless of whether the triangle is acute, right, or obtuse. From the incenter, if you draw perpendicular lines to each side, these perpendicular distances are all equal, and this equal distance is the radius of the inscribed circle (incircle).
The Powerful Angle Bisector Theorem
For high school students ready for more advanced concepts, the Angle Bisector Theorem provides a crucial relationship between an angle bisector in a triangle and the sides of the triangle. This theorem states that an angle bisector divides the opposite side into segments that are proportional to the adjacent sides.
For example, in triangle $ABC$ with sides $AB = 6$ cm and $AC = 4$ cm, if $AD$ bisects $∠A$ and meets $BC$ at point $D$, then $\frac{BD}{DC} = \frac{6}{4} = \frac{3}{2}$. So $BD$ would be 1.5 times longer than $DC$. This theorem is incredibly useful for solving problems where you need to find unknown side lengths.
Real-World Applications of Angle Bisectors
Angle bisectors aren't just theoretical concepts - they have numerous practical applications in our daily lives and various professions.
In Architecture and Construction:
- Architects use angle bisectors to create symmetrical designs and ensure proper weight distribution.
- When designing roofs, the angle bisector helps determine the optimal ridge line position.
- In bridge construction, bisectors help calculate stress points and ensure structural integrity.
In Sports and Navigation:
- In billiards or pool, players mentally calculate angle bisectors to plan bank shots where the ball bounces off the cushion at equal angles.
- In navigation, the concept helps in determining the shortest path when navigating around obstacles.
- In soccer, players use the concept when aiming for the goal from an angle, bisecting the space between defenders.
In Art and Design:
- Artists use angle bisectors to create perspective drawings and ensure proportional relationships.
- Graphic designers employ bisectors when creating logos and symmetrical patterns.
- In origami, precise angle bisectors are crucial for creating complex folded structures.
Common Mistakes and Important Questions
Q: Is an angle bisector the same as a perpendicular bisector?
No, these are different concepts! An angle bisector divides an angle into two equal angles. A perpendicular bisector is a line that divides a line segment into two equal parts at a $90^ˆ$ angle. While both involve "bisecting," they work on different geometric elements: angles versus line segments.
Q: Can an angle have more than one bisector?
In plane geometry (flat, two-dimensional space), an angle has exactly one bisector. However, if we consider three-dimensional space, there are infinitely many planes that can bisect an angle, but in each specific plane, there's still only one bisector. For most school geometry problems, we work in two dimensions where each angle has a unique bisector.
Q: What's the most common error when constructing angle bisectors?
The most frequent mistake is changing the compass width between steps 3 and 4 of the construction. The compass must maintain the same width when drawing the arcs from points $P$ and $Q$ to ensure the intersection point $R$ is correctly positioned. Another common error is not making the initial arc large enough to create clear intersection points.
The angle bisector is a elegant and powerful geometric tool that demonstrates the beauty and precision of mathematics. From the simple compass construction that anyone can perform to the sophisticated Angle Bisector Theorem used in advanced problem-solving, this concept connects basic geometry with real-world applications. Understanding angle bisectors helps us appreciate symmetry, solve practical problems in design and construction, and lays the foundation for more advanced mathematical concepts. Whether you're dividing a pizza equally or designing a architectural masterpiece, the principle of the angle bisector remains the same: creating perfect equality from division.
Footnote
[1] Vertex: In geometry, a vertex is a point where two or more lines, rays, or line segments meet to form an angle. In the context of angles, the vertex is the common endpoint of the two rays that form the angle. For example, in angle $ABC$, point $B$ is the vertex.
[2] Incenter: The point of concurrency of the three angle bisectors of a triangle. It is always located inside the triangle and is the center of the triangle's inscribed circle (incircle). The incenter is equidistant from all three sides of the triangle.
