The Perpendicular Bisector: Geometry's Perfect Cut
Defining the Perpendicular Bisector

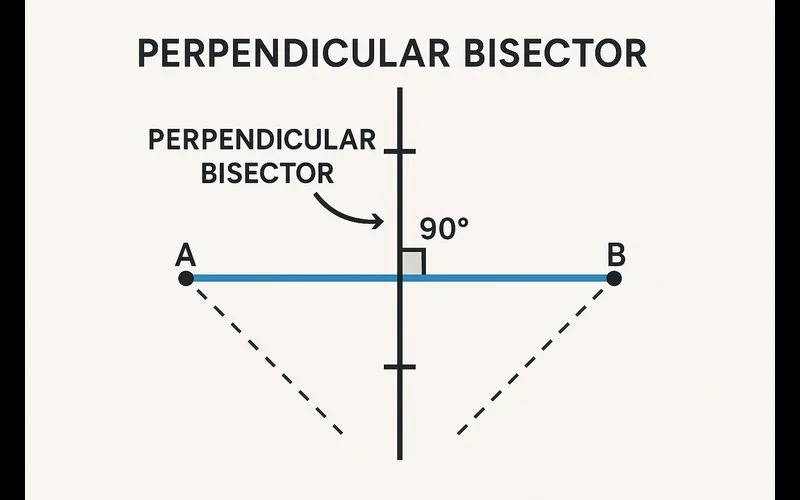

Imagine you have a straight line segment, like a stick. A perpendicular bisector is a special line that does two things to this stick perfectly. First, it cuts the stick exactly in half at its midpoint. Second, it meets the stick at a perfect right angle, which is 90°. The word itself tells you what it does:
- Bisector: This means it "cuts into two" equal parts.
- Perpendicular: This means it meets the original segment at a right angle.
So, if you have a segment AB, its perpendicular bisector is a line that crosses through the midpoint M of AB, and the angle between the segment and the bisector is 90°. It's like finding the fairest and most balanced way to split something in two.
Constructing a Perpendicular Bisector with a Compass
One of the most beautiful aspects of geometry is constructing figures using only a compass and a straightedge (a ruler without measurement marks). Here is the step-by-step process to construct the perpendicular bisector of a segment AB.
- Place the compass point on point A. Open the compass to a radius that is more than half the length of AB.
- Draw two arcs, one above and one below the line segment AB. Do not change the compass radius.
- Without changing the compass width, place the compass point on point B.
- Draw two more arcs above and below the segment so that they intersect the first two arcs you drew. Call these intersection points C and D.
- Use your straightedge to draw a line through points C and D.
This line, CD, is the perpendicular bisector of segment AB. It will always pass through the midpoint M and be perpendicular to it. This method works because you are finding all points that are equidistant from A and B, which defines the bisector.
The Perpendicular Bisector Theorem and Its Converse
This theorem is the heart of why perpendicular bisectors are so important. It establishes a key relationship between the bisector and the points on it.
The Perpendicular Bisector Theorem: If a point lies on the perpendicular bisector of a segment, then it is equidistant from the segment's two endpoints.
In the diagram, if line l is the $⊥$ bisector of AB, and point P is on line l, then $PA = PB$.
Perpendicular Bisectors in a Triangle: Finding the Circumcenter
When we move from a single segment to a triangle, things get even more interesting. Every triangle has three sides, and each side has its own perpendicular bisector.
A Remarkable Fact: The three perpendicular bisectors of the sides of a triangle all intersect at a single point. This point is called the circumcenter[1] of the triangle.
The circumcenter has a special property: it is equidistant from all three vertices (A, B, and C) of the triangle. Because of this, the circumcenter is the center of a circle that passes through all three vertices. This circle is called the circumcircle.
| Type of Triangle | Location of Circumcenter |
|---|---|
| Acute Triangle (all angles < 90°) | Inside the triangle |
| Right Triangle (one angle = 90°) | On the hypotenuse (the midpoint of the hypotenuse) |
| Obtuse Triangle (one angle > 90°) | Outside the triangle |
Real-World Applications of Perpendicular Bisectors
Perpendicular bisectors are not just abstract geometric ideas; they are used constantly in design, construction, and technology.
In Architecture and City Planning:
- When designing a new park, planners might use perpendicular bisectors to place a fountain so that it is exactly the same distance from two important landmarks, ensuring it is centrally located.
- In a housing development, a perpendicular bisector can help find the best place to build a communal playground that is equidistant from two clusters of homes.
In Engineering and Technology:
- A cell phone company needs to place a tower so that it serves two towns equally well. The set of all points where the signal strength from both towns is equal lies along the perpendicular bisector of the segment connecting the two towns. The optimal spot might be along this line.
- In computer graphics and game design, perpendicular bisectors are used in algorithms to create realistic shadows, reflections, and to determine regions of influence for game characters or objects.
In Everyday Life:
- If you and a friend want to meet at a place that is exactly halfway between your two houses and you want to walk the shortest path to the main road connecting you, the perpendicular bisector can help find that spot.
- When folding a piece of paper to create two identical halves, the crease you make is acting as a perpendicular bisector of the segment representing the paper's edge.
Coordinate Geometry: Finding the Equation
For high school students, we can find the equation of a perpendicular bisector using coordinate geometry. Let's find the equation of the perpendicular bisector of a segment with endpoints $A(x_1, y_1)$ and $B(x_2, y_2)$.
- Find the Midpoint M: The midpoint coordinates are given by $M = \left( \frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2} \right)$.
- Find the Slope of AB: The slope $m_{AB}$ is $m_{AB} = \frac{y_2 - y_1}{x_2 - x_1}$.
- Find the Slope of the Perpendicular Bisector: The slopes of perpendicular lines are negative reciprocals. So, the slope of the bisector is $m = -\frac{1}{m_{AB}}$.
- Write the Equation: Use the point-slope form of a line with point M and slope m: $y - y_M = m(x - x_M)$.
Example: Find the equation of the perpendicular bisector of the segment joining $A(2, 3)$ and $B(4, 7)$.
- Midpoint $M = \left( \frac{2+4}{2}, \frac{3+7}{2} \right) = (3, 5)$.
- Slope of $AB$: $m_{AB} = \frac{7-3}{4-2} = \frac{4}{2} = 2$.
- Slope of perpendicular bisector: $m = -\frac{1}{2}$.
- Equation: $y - 5 = -\frac{1}{2}(x - 3)$, which simplifies to $y = -\frac{1}{2}x + \frac{13}{2}$.
Common Mistakes and Important Questions
Q: Is the perpendicular bisector the same as a median or an altitude in a triangle?
No, they are different, though they can sometimes coincide. A median is a segment from a vertex to the midpoint of the opposite side. An altitude is a segment from a vertex perpendicular to the opposite side. The perpendicular bisector passes through a midpoint and is perpendicular to a side, but it does not necessarily have to pass through a vertex. In an equilateral triangle, all three (median, altitude, perpendicular bisector) are the same line for each side.
Q: Can a segment have more than one perpendicular bisector?
No. In a standard flat plane (Euclidean geometry), a line segment has exactly one perpendicular bisector. This is because there is only one midpoint, and through that midpoint, there is only one line that can be drawn perpendicular to the original segment.
Q: What is the most common error when constructing a perpendicular bisector with a compass?
The most common error is changing the compass width between steps 2 and 3. The entire construction relies on keeping the compass at the same width after the initial setting. If the width is changed, the arcs will not intersect correctly, and the resulting line will not be the true perpendicular bisector.
The perpendicular bisector is a cornerstone of geometric principles, embodying concepts of symmetry, balance, and equidistance. From its simple yet elegant construction with a compass to its powerful theorems and its critical role in locating a triangle's circumcenter, this concept bridges basic geometry and advanced applications. Understanding how to identify, construct, and utilize perpendicular bisectors provides a powerful tool for solving problems not only in mathematics but also in the real world of design, engineering, and logical reasoning. It truly is geometry's perfect cut.
Footnote
[1] Circumcenter: The point of concurrency (the single point of intersection) of the three perpendicular bisectors of a triangle. It is the center of the triangle's circumcircle, the unique circle that passes through all three of the triangle's vertices.
