Corresponding Angles: A Geometric Guide
The Basic Setup: Parallel Lines and a Transversal
Before we dive into corresponding angles, we need to understand the players on the geometric field. Imagine a set of train tracks running perfectly straight and never meeting. These are our parallel lines. Now, imagine a road cutting across these tracks. This road is our transversal. A transversal is simply a line that crosses two or more other lines in the same plane.
When the transversal cuts across the parallel lines, it creates eight angles. While this might seem messy at first, these angles form organized pairs with special relationships. The most important of these pairs, and often the easiest to spot, are the corresponding angles.
Parallel Lines: Lines in a plane that never meet. They are always the same distance apart. We denote them with little arrows.
Transversal: A line that intersects two or more other lines.

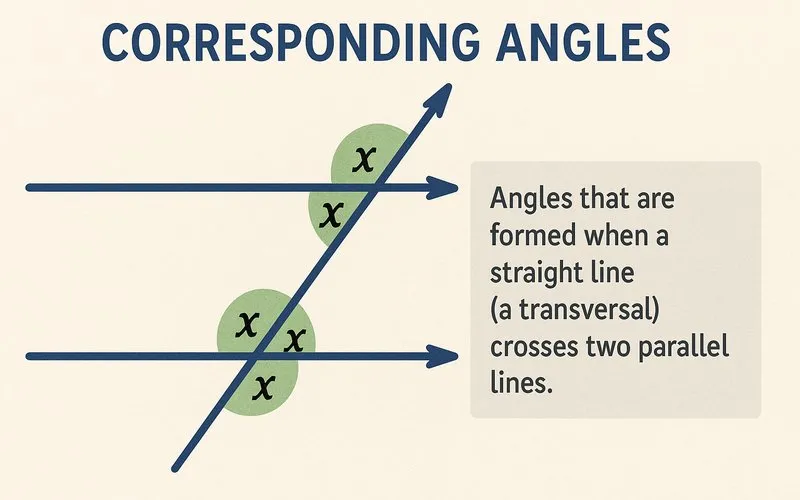

Corresponding Angles: Angles that are in the same relative position at each intersection where the transversal crosses the parallel lines.
Identifying Corresponding Angles: The F Pattern
Finding corresponding angles is like playing a game of "Spot the Pattern." The most common pattern to look for is the letter "F", which can be facing forwards, backwards, or even upside-down. Corresponding angles are the angles that would be at the "tips" of the F.
For example, if you have two parallel lines, l and m, and a transversal t, the angle in the top-left corner where t meets l corresponds to the angle in the top-left corner where t meets m. They occupy matching corners.
| Angle Pair | Location | Relationship (if lines are parallel) |
|---|---|---|
| Corresponding | Matching corners (F pattern) | Equal ($∠a = ∠e$) |
| Alternate Interior | Inside parallels, on opposite sides of transversal (Z pattern) | Equal ($∠d = ∠e$) |
| Alternate Exterior | Outside parallels, on opposite sides of transversal | Equal ($∠a = ∠h$) |
| Consecutive Interior | Inside parallels, on same side of transversal (C pattern) | Supplementary ($∠c + ∠e = 180^ˆ$) |
The Corresponding Angles Postulate and Theorem
The most important rule about corresponding angles is this: If two parallel lines are cut by a transversal, then the corresponding angles are congruent (equal in measure). This statement is so fundamental in geometry that it is accepted as true without proof; we call it a postulate.
But what if you don't know if the lines are parallel? This is where the corresponding angles work in reverse. The Converse of the Corresponding Angles Postulate states: If two lines are cut by a transversal so that corresponding angles are congruent, then the lines are parallel. This is an incredibly useful tool for proving that two lines are parallel.
For example, if you measure the angles formed by a transversal crossing two lines and find that a pair of corresponding angles are both 65°, you can confidently conclude that the two lines are parallel.
Corresponding Angles Postulate: If $l \parallel m$, then $∠1 ≅ ∠5$, $∠2 ≅ ∠6$, $∠3 ≅ ∠7$, $∠4 ≅ ∠8$.
Converse: If $∠1 ≅ ∠5$, then $l \parallel m$.
Solving Problems Using Corresponding Angles
Let's put this knowledge into practice with a typical problem. Imagine a diagram where two parallel lines are cut by a transversal. One corresponding angle is given as $∠A = 3x + 20$ and its corresponding partner is $∠B = 5x - 10$. Find the value of $x$ and the measure of each angle.
Step 1: Since the lines are parallel, corresponding angles are equal. Set the expressions equal to each other:
$3x + 20 = 5x - 10$
Step 2: Solve for $x$.
$3x + 20 = 5x - 10$
$20 + 10 = 5x - 3x$
$30 = 2x$
$x = 15$
Step 3: Substitute $x$ back into either expression to find the angle measure.
$∠A = 3(15) + 20 = 45 + 20 = 65^ˆ$
$∠B = 5(15) - 10 = 75 - 10 = 65^ˆ$
We have confirmed that both angles are 65°, which satisfies the Corresponding Angles Postulate.
Corresponding Angles in the Real World
You might think geometry is only for textbooks, but corresponding angles are all around us! Architects and engineers use these principles daily to ensure that structures are sound and features are aligned.
In Architecture: When designing a building with multiple floors, architects ensure that the supporting columns are parallel. The floors and ceilings act as transversals. The corresponding angles help ensure that everything is perfectly vertical and aligned, creating a stable and aesthetically pleasing structure.
In Construction: A carpenter building a fence needs the posts to be parallel and the rails (transversals) to be level. By checking that the angles where the rails meet the posts are equal (corresponding angles), the carpenter can be sure the fence is straight and the rails are parallel to the ground.
In Road Design: The dashed lines that separate lanes on a highway are parallel. When an exit ramp (a transversal) intersects these lines, the angles formed follow the rules we've learned. Understanding these angles helps in designing safe and efficient intersections.
Common Mistakes and Important Questions
Q: Do corresponding angles only exist when lines are parallel?
No, corresponding angles are defined whenever a transversal crosses any two lines. You can always identify pairs of corresponding angles based on their relative positions (the "F" pattern). However, the special property that they are congruent (equal) is only true when the two lines being crossed by the transversal are parallel. If the lines are not parallel, the corresponding angles will have different measures.
Q: What is the difference between corresponding angles and alternate interior angles?
This is a common point of confusion. The key difference is their location.
- Corresponding Angles are on the same side of the transversal and both are either above or below their respective parallel lines. They form an "F" pattern.
- Alternate Interior Angles are on opposite sides of the transversal and are located inside the space between the two parallel lines. They form a "Z" pattern.
The good news is that when lines are parallel, both types of angle pairs are congruent. So if you know one, you can easily find the other.
Q: How can I be sure I'm correctly identifying corresponding angles?
The best strategy is to trace the "F" pattern. Pick one angle. Then, find the transversal line. From that angle, slide along the transversal to the other parallel line. Then, move to the angle that is in the same relative corner. If you can trace a shape that looks like a blocky letter "F" (in any orientation), you have found a pair of corresponding angles. Practice this with different diagrams, and it will soon become second nature.
Corresponding angles are a beautiful example of the order and predictability found in geometry. By understanding the simple "F" pattern and the powerful postulate that links them to parallel lines, we unlock the ability to solve a vast array of geometric problems. Remember, the core idea is straightforward: when a transversal crosses parallel lines, corresponding angles are equal. Conversely, if corresponding angles are equal, the lines are parallel. This concept is not just a classroom exercise; it is a practical tool used in design and construction all around us. Mastering corresponding angles is a key step in building a strong foundation in mathematics.
Footnote
[1] Postulate: A statement that is accepted as true without proof. Postulates are the basic building blocks from which theorems and the rest of geometry are logically derived. The Corresponding Angles Postulate is one of the most fundamental postulates in Euclidean geometry.
[2] Congruent (≅): A term used in geometry to indicate that two geometric figures (like angles or line segments) have the same shape and size. For angles, it means they have the exact same measure in degrees.
