Vertically Opposite Angles

The fascinating geometric relationship that occurs when two lines cross.
This comprehensive guide explores vertically opposite angles, the pairs of angles formed when two straight lines intersect. We will examine why these angles are always equal, how to identify them in various geometric configurations, and their practical applications in real-world scenarios. Key concepts include the angle relationships at intersection points, the proof of their equality using adjacent and straight angles, and problem-solving techniques involving unknown angles. Understanding vertically opposite angles is fundamental to geometry and provides a foundation for more advanced mathematical concepts.

What Are Vertically Opposite Angles?

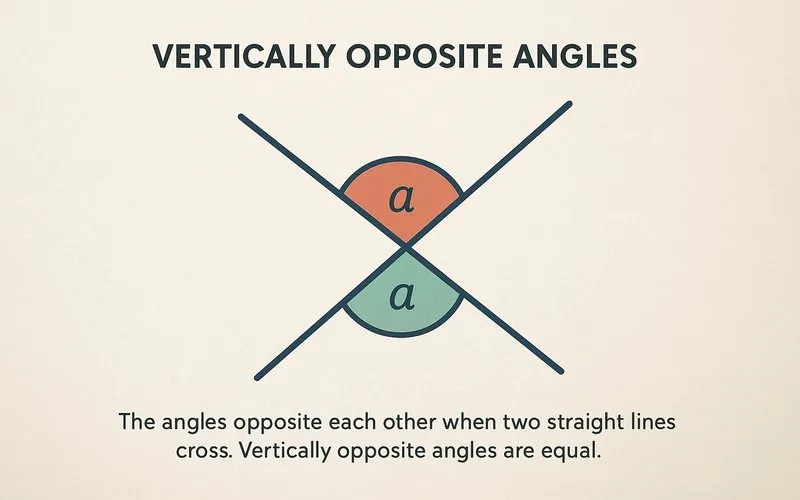

When two straight lines cross or intersect, they form an X-shape. This intersection creates four angles. Vertically opposite angles are the pairs of angles that are directly opposite each other at the intersection point. The term "vertical" in this context doesn't mean up-and-down; rather, it comes from the word "vertex," which is the point where the lines meet.

Imagine two roads crossing each other. The four corners created at the intersection represent the four angles. The angles diagonally across from each other are vertically opposite angles. There are always two pairs of vertically opposite angles when two lines intersect.

Key Definition: Vertically opposite angles are the angles opposite each other when two lines intersect. They are always equal to each other.

Identifying Vertically Opposite Angles

At the intersection point of two lines, we typically label the angles for clarity. If we call the angles $∠1$, $∠2$, $∠3$, and $∠4$ in clockwise or counterclockwise order, the vertically opposite pairs are:

  • $∠1$ and $∠3$
  • $∠2$ and $∠4$

According to the vertically opposite angles theorem, $∠1 = ∠3$ and $∠2 = ∠4$.

Angle Pair TypeDescriptionRelationship
Vertically OppositeAngles directly opposite each other at intersectionEqual ($∠1 = ∠3$, $∠2 = ∠4$)
Adjacent SupplementaryAngles next to each other forming straight linesSum to 180° ($∠1 + ∠2 = 180°$)
All Angles Around PointTotal of all four angles formedSum to 360°

Why Vertically Opposite Angles Are Equal: The Proof

The fact that vertically opposite angles are equal isn't just a rule to memorize—it can be proven using what we know about straight angles and adjacent angles. Let's walk through the proof step by step.

Consider two intersecting lines with angles labeled $∠1$, $∠2$, $∠3$, and $∠4$.

Step 1: Notice that $∠1$ and $∠2$ are adjacent angles that form a straight line. Therefore: $∠1 + ∠2 = 180°$

Step 2: Similarly, $∠2$ and $∠3$ are adjacent angles that form a straight line: $∠2 + ∠3 = 180°$

Step 3: Since both expressions equal 180°, we can set them equal to each other: $∠1 + ∠2 = ∠2 + ∠3$

Step 4: Subtract $∠2$ from both sides: $∠1 = ∠3$

This proves that vertically opposite angles $∠1$ and $∠3$ are equal. The same process can be used to prove that $∠2 = ∠4$.

Proof Summary: Vertically opposite angles are equal because each pair shares the same relationship with the common adjacent angle that forms a straight line (180°).

Solving Problems with Vertically Opposite Angles

Vertically opposite angles are extremely useful for solving geometry problems where some angle measures are unknown. Let's work through some examples.

Example 1: Two lines intersect. If one angle is 70°, what are the measures of the other three angles?

Solution: The angle vertically opposite to 70° will also be 70°. The remaining two angles will both be equal to each other (vertically opposite) and can be found using the straight angle relationship: $180° - 70° = 110°$. So the four angles are: 70°, 110°, 70°, and 110°.

Example 2: In a diagram with two intersecting lines, $∠A = (3x + 10)°$ and its vertically opposite angle $∠B = (2x + 40)°$. Find the value of $x$.

Solution: Since vertically opposite angles are equal: $3x + 10 = 2x + 40$

Solving for $x$: $3x - 2x = 40 - 10$

$x = 30$

Therefore, $x = 30$.

Real-World Applications of Vertically Opposite Angles

Vertically opposite angles aren't just theoretical concepts; they have practical applications in various fields:

Architecture and Construction: When designing structures with intersecting beams or determining the angles for roof trusses, architects and engineers use the principle of vertically opposite angles to ensure symmetry and stability.

Road Design: Traffic engineers apply this concept when designing intersections. The angles at which roads meet affect visibility, turning radii, and traffic flow patterns.

Surveying and Navigation: Surveyors use the properties of intersecting lines when mapping land and establishing boundaries. The concept is also fundamental in navigation, particularly in celestial navigation where lines of position intersect.

Art and Design: Artists and designers often work with intersecting lines in their compositions. Understanding angle relationships helps create balanced and visually appealing designs.

Sports: In sports like pool or billiards, players intuitively use the concept of angle reflection, which relates to vertically opposite angles, when planning their shots.

Vertically Opposite Angles in Parallel Line Configurations

When a transversal line crosses two parallel lines, multiple sets of vertically opposite angles are created. In this configuration, we can identify three intersection points, each with its own pairs of vertically opposite angles.

The special angle relationships in parallel lines cut by a transversal include:

  • Corresponding angles (equal)
  • Alternate interior angles (equal)
  • Alternate exterior angles (equal)
  • Vertically opposite angles at each intersection point (equal)

These relationships work together to solve complex geometric problems. For example, if we know one angle measure in a parallel line system, we can determine all other angle measures using a combination of these relationships.

Common Mistakes and Important Questions

Q: Are vertically opposite angles always acute?

No, vertically opposite angles can be any type of angle: acute (less than 90°), right (exactly 90°), obtuse (between 90° and 180°), or even straight angles (if the lines are such that angles merge, though this is a special case). The key point is that whatever measure one angle has, its vertically opposite angle will have the same measure.

Q: Do vertically opposite angles only apply to straight lines?

Yes, the theorem specifically applies to straight lines. If curves intersect, the concept of vertically opposite angles doesn't apply in the same way. The lines must be straight for the angle relationships to hold true. However, if two line segments intersect, they effectively form straight lines at the intersection point, so the theorem still applies.

Q: What is the most common error when working with vertically opposite angles?

The most common error is confusing vertically opposite angles with adjacent angles. Students sometimes think that any angles next to each other are equal, when in fact adjacent angles are supplementary (add to 180°), not necessarily equal. Remember: vertically opposite angles are across from each other at the intersection, not next to each other.

Conclusion
Vertically opposite angles represent a fundamental geometric concept with both theoretical importance and practical applications. Understanding that these angles are always equal provides a powerful tool for solving geometric problems and recognizing patterns in the physical world. The proof of their equality demonstrates the logical structure of geometry, while real-world applications show how mathematical principles manifest in everyday situations. By mastering vertically opposite angles, students build a solid foundation for more advanced geometric concepts and develop critical spatial reasoning skills that extend beyond the mathematics classroom.

Footnote

[1] Vertex: The point where two or more lines, rays, or line segments meet. In the context of vertically opposite angles, the vertex is the intersection point of the two lines.

[2] Transversal: A line that crosses two or more other lines in the same plane. When a transversal crosses two parallel lines, it creates several pairs of equal angles, including corresponding angles and alternate angles.

[3] Supplementary Angles: Two angles whose measures add up to 180°. Adjacent angles formed when two lines intersect are always supplementary.
