Exploring Prisms: The Shape of Constant Cross-Sections
What Exactly is a Prism?

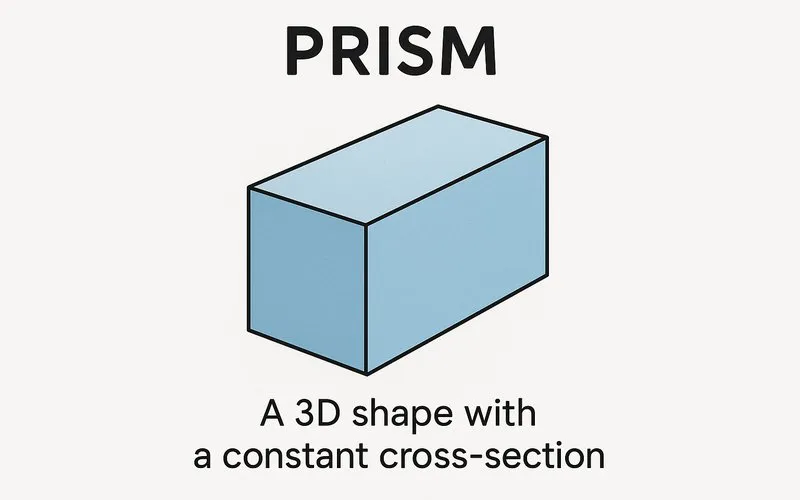

Imagine taking a shape, like a triangle or a rectangle, and then sliding it straight through space. The path it traces out creates a three-dimensional object. This is the fundamental idea behind a prism. A prism is a 3D shape that has two identical ends (called bases) that are parallel to each other, and all its other faces are rectangles or parallelograms. The most important feature is that if you were to slice it anywhere parallel to the bases, the cross-section would always be exactly the same shape and size.
Think of a simple cardboard box. If you look at it from the top, bottom, or slice it horizontally anywhere, you'll see the same rectangle. This makes it a rectangular prism. This "constant cross-section" property is what truly defines a prism. The shape of the base gives the prism its name. A triangular base creates a triangular prism, a hexagonal base creates a hexagonal prism, and so on.
The Anatomy of a Prism: Parts and Pieces
To understand prisms better, let's break down their structure. Every prism has the following key components:
- Bases: The two parallel, congruent (identical in shape and size) faces. These can be any polygon—triangle, square, pentagon, etc.
- Lateral Faces: The faces that connect the corresponding sides of the two bases. In a right prism, these are rectangles. In an oblique prism, these are parallelograms.
- Edges: The line segments where two faces meet.
- Vertices: The points where three or more edges meet (the corners).
- Height (Altitude): The perpendicular distance between the two bases. This is a crucial measurement for calculations.
A Family of Shapes: Types of Prisms
Prisms come in many forms, creating a whole family of shapes. They can be categorized in two main ways: by the shape of their base and by their alignment.
| Prism Type | Base Shape | Real-World Example |
|---|---|---|
| Triangular Prism | Triangle | Toblerone chocolate bar, roof of a house |
| Rectangular Prism | Rectangle | Brick, shoebox, book |
| Pentagonal Prism | Pentagon | Some architectural columns |
| Hexagonal Prism | Hexagon | A wooden pencil, a nut |
| Cylinder | Circle | Soda can, soup can |
It's also important to distinguish between right prisms and oblique prisms. In a right prism, the lateral faces are rectangles and are perpendicular to the bases. The prism stands "upright." In an oblique prism, the lateral faces are parallelograms because the bases are not directly aligned; the prism looks like it's leaning or sliding. A right rectangular prism is what we commonly call a "box," while an oblique one looks like a slanted box. The volume formulas are the same for both, but the surface area calculation can be more complex for oblique prisms.
The Mathematics of Prisms: Volume and Surface Area
One of the most practical reasons to study prisms is to be able to calculate how much space they take up (volume) and how much material is needed to cover them (surface area). The formulas are beautifully logical and stem directly from the prism's defining property: the constant cross-section.
$V = A_{base} \times h$
Let's see how this works. Imagine a stack of identical coins. The volume of the stack is just the volume of one coin (the area of its circular base) multiplied by the number of coins (which relates to the height of the stack). A prism works the same way. The base area is "stacked" upon itself for the entire height of the prism.
Example: What is the volume of a triangular prism with a base that is a right triangle with legs of 3 cm and 4 cm, and a height of 10 cm?
First, find the area of the triangular base: $A_{base} = \frac{1}{2} \times 3 \times 4 = 6$ cm$^2$.
Then, multiply by the height: $V = 6 \times 10 = 60$ cm$^3$.
$SA = 2 \times A_{base} + L$ where $L$ is the Lateral Surface Area, the area of all the lateral faces combined.
For a right prism, the lateral surface area is easy to calculate. It's the perimeter of the base multiplied by the height of the prism: $L = P_{base} \times h$. This is because if you "unfold" the lateral faces, they form one big rectangle whose length is the perimeter of the base and whose width is the height of the prism.
Prisms in the World Around Us
Prisms are not just abstract mathematical concepts; they are everywhere in our daily lives and in nature. Their stable structure and efficient use of space make them incredibly useful.
In Architecture and Engineering:
- Buildings: Most rooms are rectangular prisms. Skyscrapers are often tall rectangular prisms.
- Bridges: Many support structures are triangular prisms, as the triangle is a very strong and rigid shape.
- Columns: Architectural columns are often cylindrical or hexagonal prisms.
In Everyday Objects:
- Containers: Milk cartons, cereal boxes, and shipping containers are all rectangular prisms designed for easy stacking and storage.
- Food: A Toblerone chocolate bar is a classic example of a triangular prism. A stick of butter is a rectangular prism.
- Tools: A standard wooden pencil before sharpening is a hexagonal prism, making it easy to grip and less likely to roll off a table.
In Science and Nature:
- Optics: A triangular glass prism can split white light into a rainbow of colors (a spectrum) because light bends (refracts) as it passes through the glass. This is one of the most famous uses of the word "prism" outside of geometry.
- Crystals: Many minerals, like quartz, form natural crystals that are hexagonal prisms.
- Biology: The honeycomb in a beehive is made of hexagonal prisms (cells), which is a very efficient shape for using space and building materials.
Common Mistakes and Important Questions
Q: Is a cylinder a prism?
This is a common point of confusion. Technically, a cylinder is not considered a prism in strict mathematical terms because its base is a circle, which is not a polygon. Prisms are defined as having polygonal bases. However, a cylinder shares the most important property with prisms: it has a constant cross-section. If you slice a cylinder parallel to its base, you always get a circle. Because of this shared key feature, cylinders are often taught alongside prisms and use a very similar volume formula: $V = A_{base} \times h = π r^2 h$.
Q: What is the difference between a prism and a pyramid?
This is a crucial distinction. A prism has two identical, parallel bases, and its cross-section is constant. A pyramid has only one base, and all its other faces are triangles that meet at a single point called the apex. Because of this, the cross-section of a pyramid changes as you slice it parallel to the base—it gets smaller as you get closer to the apex. The volume formula is also different: for a pyramid, $V = \frac{1}{3} A_{base} \times h$.
Q: What is the most common error when calculating the volume of a prism?
The most common error is using the wrong value for the height. The height ($h$) must be the perpendicular distance between the two bases. In an oblique prism, students sometimes mistakenly use the length of the slanted side (the lateral edge) as the height. Remember, the height is always measured at a right angle (90 degrees) to the base.
Prisms are fundamental building blocks of our three-dimensional world. Defined by their constant cross-section, they come in a wide variety of forms, from the simple boxes that hold our belongings to the complex structures that define modern architecture. Understanding their properties—especially how to calculate their volume and surface area—provides us with practical tools for everything from packing a moving truck to designing a building. The next time you pick up a book, eat a piece of chocolate, or look at a skyscraper, you'll be able to recognize the elegant and consistent geometry of the prism at work.
Footnote
[1] Congruent: A term in geometry meaning that two shapes or figures are identical in shape and size. They can be rotated or reflected, but if they can be made to fit exactly on top of each other, they are congruent. The two bases of a prism are always congruent.
[2] Refracts: The bending of a wave, such as light, as it passes from one transparent medium into another (e.g., from air into glass). This change in direction is due to a change in the wave's speed.
