Vertices: The Cornerstones of Shape and Space
What Exactly is a Vertex?

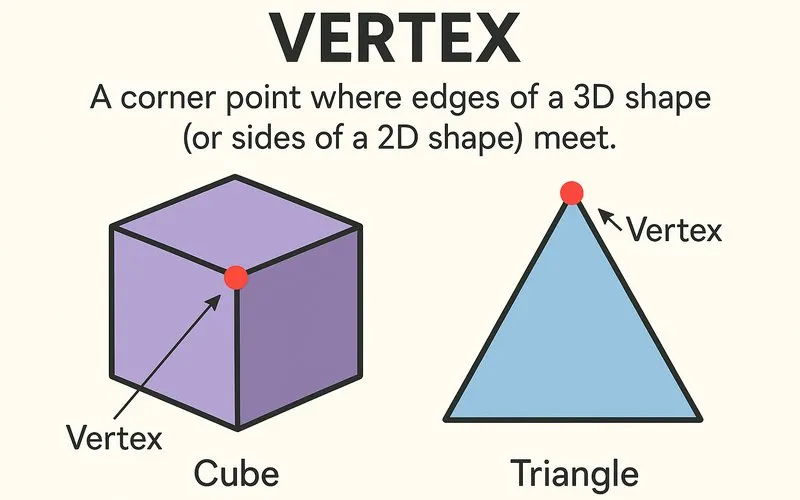

Look at the corner of a book, the tip of a pyramid, or the point where two streets cross. Each of these is a real-world example of a vertex. In geometry, a vertex is a point where two or more lines, curves, or edges meet. The word itself comes from Latin, meaning "a whirl, a turn," which is exactly what happens at a corner—you change direction.
In two-dimensional (2D) shapes, vertices are the points where the sides of a polygon meet. A triangle has three vertices, a square has four, and a pentagon has five. In three-dimensional (3D) shapes, called polyhedra, vertices are the points where the edges meet. A cube has eight vertices, and a pyramid has at least four. Think of a vertex as a fundamental anchor point that helps define the shape's structure and form.
Vertices in 2D and 3D Shapes
The concept of a vertex applies to both flat (2D) and solid (3D) shapes, but its role expands in three dimensions. Understanding this distinction is key to mastering geometry.
| Shape Name | Dimension | Number of Vertices | Description |
|---|---|---|---|
| Triangle | 2D | 3 | The three points where the three sides meet. |
| Square | 2D | 4 | The four corners of the square. |
| Cube | 3D | 8 | The eight points where three edges meet at each corner. |
| Square Pyramid | 3D | 5 | The four base corners plus the single apex point at the top. |
| Sphere | 3D | 0 | A sphere has a curved surface with no straight edges or distinct corners, hence no vertices. |
Notice that shapes with curved surfaces, like circles and spheres, do not have vertices because there are no distinct corners or points where straight edges meet. Vertices are a property of polygons (2D) and polyhedral (3D).
The Mathematical Magic of Euler's Formula
For convex polyhedral (3D shapes where any line segment connecting two points on the shape lies entirely inside or on the shape), there is a beautiful and simple relationship between the number of vertices (V), edges (E), and faces (F). This is known as Euler's Formula for polyhedral[1].
The formula is: $V - E + F = 2$
Let's test it with a cube. A cube has 8 vertices, 12 edges, and 6 faces. Plugging these numbers into the formula gives us: $8 - 12 + 6 = 2$. It works! This formula holds true for all convex polyhedral and is a powerful tool for checking the validity of a 3D shape or for finding a missing value if the other two are known.
Vertices in the Real World: From Pyramids to Pixels
Vertices are not just abstract mathematical ideas; they are the hidden framework of our manufactured and natural world.
In Architecture and Engineering: The strength and stability of many structures depend on their vertices. The triangular trusses in bridges use vertices to distribute weight efficiently. The vertices of a pyramid provided a stable base and a precise point to aim for during construction. In modern skyscrapers, the steel frame is a complex network of beams and columns meeting at vertices, creating a rigid structure that can withstand wind and gravity.
In Computer Graphics and Gaming: Every 3D model you see in a movie or a video game is made from a mesh of polygons, usually triangles. The corners of these triangles are vertices. Each vertex stores information like its position in 3D space $(x, y, z)$, its color, and how it reflects light. When a character moves, the game engine is actually calculating new positions for thousands or millions of vertices. This is why a more "detailed" model has more vertices—it allows for smoother curves and more realistic surfaces.
In Nature: While natural forms are often curved, vertices appear in crystalline structures. The beautiful, flat faces of a snowflake or a quartz crystal meet at sharp edges and vertices, following the precise laws of chemistry and physics. The molecular structure of a diamond is a crystal lattice where carbon atoms are arranged in a pattern that can be described by its vertices.
Coordinates: Locating Vertices in Space
To work with vertices mathematically, especially in computer science and advanced geometry, we need a way to describe their exact location. We use a coordinate system.
For 2D shapes, we use the $(x, y)$ coordinate system. The vertex of a square could be at $(0, 0)$, $(0, 5)$, $(5, 5)$, and $(5, 0)$ if each side is 5 units long.
For 3D shapes, we add a third dimension: $(x, y, z)$. A vertex of a cube might be located at $(1, 1, 1)$. By defining the coordinates of every vertex, we can perfectly describe the shape's size, position, and orientation in space. This is the fundamental principle behind CAD[2] (Computer-Aided Design) software used by engineers and architects to design everything from toys to airplanes.
Common Mistakes and Important Questions
Q: Does a circle have vertices?
No, a circle does not have any vertices. A vertex is defined as a point where two or more straight line segments (sides or edges) meet. A circle is composed of a single, continuous curved line with no straight segments or corners. Therefore, it has zero vertices. The same is true for other curved shapes like ovals and ellipses.
Q: Is the tip of a cone a vertex?
Yes, but it's a special kind. A cone has one circular base, which is a curved edge with no vertices. However, the pointed tip, called the apex, is considered a vertex. In formal geometry, a right circular cone is said to have 1 vertex (the apex). This is a good example of how not all vertices are formed by the meeting of multiple straight edges; this one is formed where the curved surface converges to a single point.
Q: What is the most common error when counting vertices on a 3D shape?
The most common error is forgetting to count all the vertices, especially the ones at the back or on the bottom that are hidden from view. A good strategy is to imagine the shape rotating in your mind or to use a physical model. Count the vertices on the front, then the back, and then add them together. For a cube, you can count the 4 on the top face and the 4 on the bottom face, for a total of 8.
Vertices are far more than just simple corners. They are the fundamental points of connection that define the geometry of everything from the triangles in a bridge to the complex characters in an animated film. By understanding what a vertex is—a meeting point of sides or edges—we can begin to decode the structure of shapes in both two and three dimensions. Remembering key relationships, like Euler's formula, empowers us to see the hidden mathematical harmony in the world of polyhedral. The next time you look at a building, play a video game, or study a crystal, take a moment to appreciate the vertices, the unsung heroes that give shape to our universe.
Footnote
[1] Euler's Formula (for polyhedral): A foundational formula in topology and geometry discovered by Leonhard Euler. It states that for any convex polyhedron, the number of vertices (V) minus the number of edges (E) plus the number of faces (F) is always equal to 2. The formula is written as $V - E + F = 2$.
[2] CAD (Computer-Aided Design): The use of computers to aid in the creation, modification, analysis, or optimization of a design. CAD software is used to create precision drawings or technical illustrations in 2D or 3D, relying heavily on defining the coordinates of vertices to model objects.
