Geometric Nets: From 2D Patterns to 3D Shapes
What Exactly is a Geometric Net?
Imagine taking an empty cereal box and carefully cutting along its edges until you can lay it completely flat on a table. The resulting flat pattern is called a net. A geometric net is a two-dimensional diagram that shows all the faces of a three-dimensional shape arranged in such a way that when folded along the edges, it forms the complete 3D object without any overlaps.
Nets help us understand the relationship between 2D and 3D geometry. They are essentially the "blueprints" or "unfolded versions" of solid shapes. Every polyhedron (a 3D shape with flat faces) has at least one net, and some have many different possible nets. For example, a cube has 11 distinct nets—11 different ways you can arrange its 6 square faces in a flat pattern that will fold into a cube.
Common Nets and Their 3D Shapes
Different 3D shapes have characteristic nets based on their face shapes and arrangements. Let's explore some of the most common geometric nets that you encounter in mathematics and daily life.
| 3D Shape | Face Composition | Number of Possible Nets | Key Features of Net |
|---|---|---|---|
| Cube | 6 squares | 11 | Always has 6 connected squares in a cross or T-shape pattern |
| Cuboid (Rectangular Prism) | 6 rectangles (pairs of equal rectangles) | 54 | Similar to cube nets but with different rectangle sizes |
| Tetrahedron | 4 equilateral triangles | 2 | Forms a large triangle composed of 4 smaller triangles |
| Square Pyramid | 1 square + 4 triangles | Multiple variations | Square center with triangles on each side, or square with attached triangles |
| Cylinder | 2 circles + 1 rectangle | 1 main net | Rectangle between two circles; rectangle width equals circle circumference |
The Mathematics Behind Nets: Euler's Formula
For polyhedra (3D shapes with flat faces), there's a beautiful mathematical relationship discovered by Leonhard Euler[1] that helps us understand nets better. Euler's Formula states that for any convex polyhedron:
$V - E + F = 2$
Where $V$ is the number of vertices (corners), $E$ is the number of edges, and $F$ is the number of faces. This formula is incredibly useful when working with nets because it provides a way to check if a net will form a valid polyhedron.
Let's test this with a cube: A cube has 8 vertices, 12 edges, and 6 faces. Applying Euler's Formula: $8 - 12 + 6 = 2$. The formula holds true! When creating a net for a cube, we must ensure it has exactly 6 faces that will connect to give us 12 edges and 8 vertices when folded.
Creating and Identifying Valid Nets
Not every arrangement of shapes will form a valid net. To create a working net, you need to follow specific rules. The faces must be connected edge-to-edge in the net exactly as they connect in the 3D shape. There should be no overlaps when folded, and all faces must meet properly at the edges.
When identifying whether a given pattern is a valid net, ask yourself these questions:
- Does it contain all the faces of the 3D shape?
- Are the faces connected along the correct edges?
- When mentally folded, do any faces overlap?
- Will all edges meet properly when folded?
A common exercise in mathematics classes is to determine which of several patterns are valid nets for a cube. Some patterns might look correct but would cause faces to overlap when folded, or they might not include all necessary faces.
Nets in the Real World: Practical Applications
Geometric nets are not just mathematical concepts—they have numerous practical applications in our daily lives. The most obvious example is packaging. Every cardboard box, cereal package, or shipping container starts as a net that is cut, folded, and glued into its 3D form. Packaging designers use nets to minimize material waste while creating sturdy containers.
In architecture, nets are used to create models of buildings and structures. Architects might create net diagrams of complex shapes to understand how different surfaces connect. This is particularly important for unusual building designs with non-standard geometric forms.
Engineering applications include designing everything from air ducts to medical equipment. For example, the pattern for a cylindrical air duct is essentially a net—a rectangle with circles on opposite ends. In the clothing industry, patterns for sewing are similar to nets—flat pieces of fabric that when stitched together create a 3D garment.
Even in food packaging, like chocolate boxes or tea bags, nets determine the most efficient way to create attractive and functional containers. The tabs and flaps you see on nets become the glue areas that hold the 3D shape together in real packaging.
Hands-On Activities with Geometric Nets
The best way to understand nets is to create them yourself! Here are some simple activities you can try:

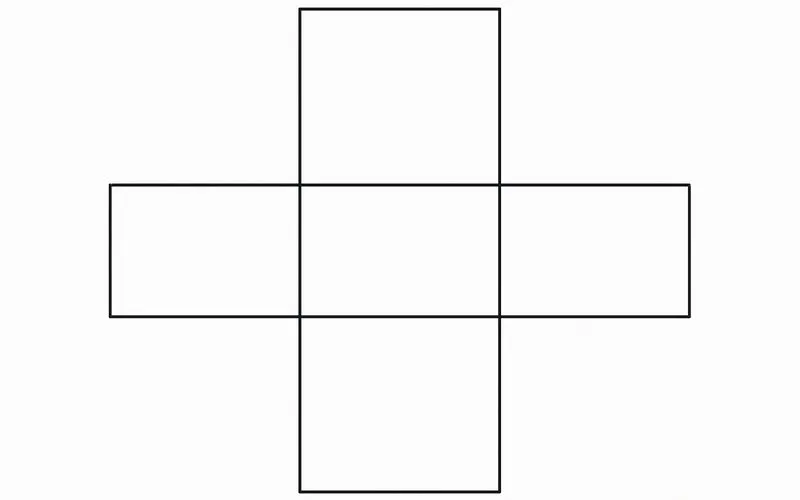

Creating a Cube Net: Draw 6 equal squares arranged in a cross pattern (4 squares in a row with 1 square attached above and below the second square in the row). Add tabs to some edges for gluing. Cut out the pattern, fold along the edges between squares, and glue the tabs to create your cube.
Exploring Different Cube Nets: Challenge yourself to find as many of the 11 different cube nets as possible. Remember that rotated or mirrored versions of the same arrangement count as the same net.
Designing a Pyramid Net: Draw a square for the base, then attach 4 isosceles triangles to each side of the square. Make sure the base of each triangle equals the side length of the square. Add tabs, cut, fold, and assemble your pyramid.
These activities help develop spatial reasoning skills—the ability to visualize and manipulate objects in three dimensions. This skill is valuable in many fields, including mathematics, science, engineering, and art.
Common Mistakes and Important Questions
Q: Can every 3D shape have a net?
Most common polyhedra (shapes with flat faces) have nets. However, a sphere does not have a true net because it has a continuous curved surface without edges. We can create approximate nets for spheres by dividing them into curved sections (like the segments of a beach ball), but these don't lie completely flat without stretching or distortion. For polyhedra, every shape has at least one net, though some complex shapes might have nets that are difficult to visualize.
Q: Why do some 3D shapes have multiple nets while others have only one?
The number of possible nets depends on the symmetry and complexity of the 3D shape. A cube has high symmetry—all faces are identical and all edges are the same length—which allows for many different arrangements (11 nets). A tetrahedron has fewer nets (only 2) because of its simpler structure. A cylinder essentially has one main net (a rectangle with two circles), though the rectangle could theoretically be split in different places. Shapes with less symmetry generally have fewer possible nets.
Q: What is the most common error when creating or identifying nets?
The most common error is creating arrangements where faces would overlap when folded. For example, in cube nets, students might place squares in positions that seem correct in 2D but would cause multiple faces to occupy the same space in 3D. Another common mistake is forgetting that faces must connect edge-to-edge, not just corner-to-corner. Always mentally fold the net step by step to check for these issues.
Geometric nets provide a fascinating bridge between the two-dimensional and three-dimensional worlds. By understanding how flat patterns transform into solid objects, we develop crucial spatial reasoning skills and gain insight into the geometry that surrounds us. From the 11 possible nets of a cube to the practical applications in packaging and design, nets demonstrate the beautiful connection between mathematical theory and real-world applications. The next time you open a cereal box or see an interesting building, remember that it likely began as a simple 2D net—a pattern waiting to be folded into its three-dimensional form.
Footnote
[1] Leonhard Euler: An influential 18th-century Swiss mathematician who made important discoveries in many areas of mathematics, including geometry, calculus, and number theory. Euler's Formula ($V - E + F = 2$) is one of his most famous contributions to geometry, establishing a fundamental relationship between the vertices, edges, and faces of polyhedra.
