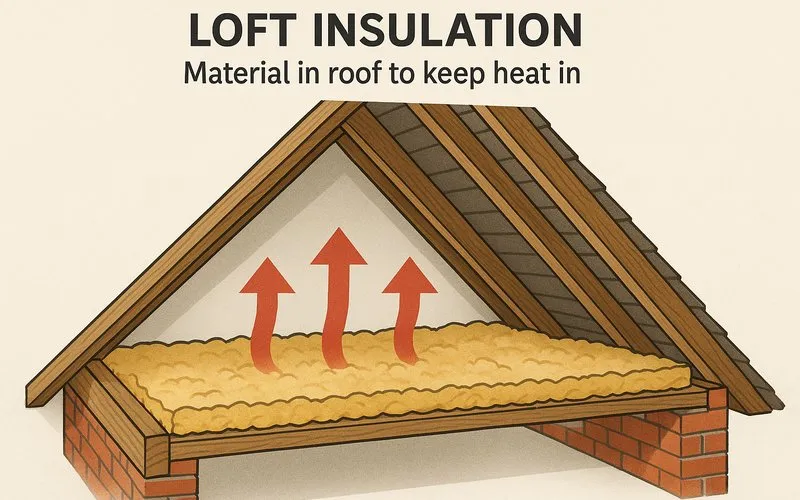

Loft Insulation: Your Home's Cozy Winter Hat
The Science of Heat Flow: Conduction, Convection, and Radiation
To understand how loft insulation works, we first need to understand how heat moves. Heat always travels from a warmer area to a cooler one, and it does so in three main ways:
- Conduction: This is how heat moves through a solid material. If you hold one end of a metal spoon over a flame, the other end gets hot because heat is conducted through the metal. In your home, heat from your living room conducts through the ceiling and into the cold loft.
- Convection: This is how heat moves through fluids (liquids and gases). Warm air is less dense than cold air, so it rises. In your house, the warm air you pay to heat rises and, if your loft is uninsulated, it escapes through the roof. This creates a convection current, constantly sucking warm air out of your home.
- Radiation: This is how heat travels as invisible waves, like the heat you feel from the sun or a campfire. Inside your home, warm surfaces radiate heat towards cooler surfaces.
Loft insulation is designed to combat all three of these processes. It is a material that is a very poor conductor of heat (a good thermal insulator). It contains millions of tiny pockets of air, which drastically slows down convective heat loss. Some types also have reflective surfaces that bounce radiant heat back into your home.
Measuring Insulation Performance: The R-Value
Not all insulation is created equal. Scientists and engineers use a standard measurement called the R-value to compare how effective different insulation materials are. The R-value measures thermal resistance.
- A high R-value means the material is a very good insulator. It has high resistance to heat flow.
- A low R-value means the material is a poor insulator and heat can pass through it easily.
The R-value depends on the type of material and its thickness. Generally, the thicker the insulation, the higher the R-value. The formula for heat transfer rate ($Q$) shows why this is important:
$Q = \frac{A \times \Delta T}{R}$
Where:
$Q$ is the rate of heat loss (in Watts),
$A$ is the area of the ceiling (in m²),
$\Delta T$ is the temperature difference between inside and outside (in °C),
$R$ is the R-value of the insulation.
From this formula, you can see that to make $Q$ (heat loss) smaller, you need to make the R-value larger. Doubling the R-value halves the heat loss!
A Closer Look at Common Loft Insulation Materials
There are several types of materials used for loft insulation, each with its own properties, R-values, and ideal uses. The most common ones are roll-out blankets, loose-fill, and rigid boards.
| Material Type | What It's Made Of | Typical R-value per inch | Pros and Cons |
|---|---|---|---|
| Glass Wool | Tiny fibers of spun glass, similar to cotton candy. | R-2.9 - R-3.8 | Pros: Inexpensive, non-flammable. Cons: Can be itchy to handle, loses effectiveness if compressed or wet. |
| Rock Wool | Fibers made from molten rock or slag (a byproduct of steel production). | R-3.0 - R-3.3 | Pros: More resistant to fire and water than glass wool. Cons: Heavier and more expensive. |
| Cellulose | Recycled newspaper and paper treated with fire-retardant chemicals. | R-3.2 - R-3.8 | Pros: Very eco-friendly, good for filling odd-shaped spaces. Cons: Can settle over time, reducing R-value; can absorb moisture. |
| Rigid Foam Boards | Panels made from polystyrene, polyisocyanurate, or polyurethane. | R-4.0 - R-6.5 | Pros: High R-value for relatively thin panels, strong. Cons: More expensive, must be cut precisely to fit. |
A Practical Example: Calculating Heat Loss and Savings
Let's put the formula into a real-world scenario. Imagine a family home with a loft ceiling area of 80 m² (about 860 square feet). On a cold winter night, the inside temperature is 20 °C (68 °F) and the outside temperature is 0 °C (32 °F), so the temperature difference ($\Delta T$) is 20 °C.
Scenario 1: Poorly Insulated Loft (R-value = 2)
Heat Loss, $Q = \frac{80 \times 20}{2} = 800$ Watts.
This means heat is escaping through the roof at a rate of 800 Joules every second. That's like having eight 100W light bulbs burning in your attic, constantly!
Scenario 2: Well-Insulated Loft (R-value = 8)
Heat Loss, $Q = \frac{80 \times 20}{8} = 200$ Watts.
By increasing the R-value from 2 to 8, the family reduces their heat loss through the roof by 75% (from 800W to 200W). This means their heating system doesn't have to work as hard, saving a significant amount on their energy bills. If heating costs $1,000 per winter without good insulation, they could save around $750 just from this one upgrade!
Common Mistakes and Important Questions
Should I insulate the roof slope or just the loft floor?
This is a crucial distinction. For most homes with a "cold loft," where the attic space is not used for living, insulation is laid horizontally across the loft floor. This keeps the heat in the living spaces below. If you are converting your loft into a room (a "warm loft"), then insulation is placed between the roof rafters (the sloped beams) to keep the new room itself warm. Insulating the floor of a cold loft is generally much easier and cheaper.
Can you have too much insulation?
While more insulation is generally better, there are practical limits. The first few inches provide the biggest savings. After a certain point (often around 270-300mm of mineral wool), adding more insulation gives diminishing returns, meaning the cost of the extra material may not be worth the small amount of energy you save. It's also important not to block eaves (the edges of the roof) to ensure proper ventilation and prevent condensation, which can lead to mold and rot.
Is loft insulation only useful in the winter?
No, it works year-round! In the summer, a well-insulated loft helps keep your home cooler. It acts as a barrier, preventing heat from the hot sun beating down on the roof from radiating into your living spaces. This can reduce the need for air conditioning, saving you money on your summer electricity bills too.
Footnote
1 R-value: Thermal Resistance Value. A measure of an insulating material's resistance to conductive heat flow. The higher the R-value, the greater the insulating power.
2 Joule (J): The standard international unit of energy. One Watt is equal to one Joule of energy transferred per second.
3 Conduction: The process by which heat energy is transmitted through collisions between neighboring atoms or molecules.
4 Convection: The transfer of heat by the physical movement of a fluid (liquid or gas).
5 Radiation: The emission of energy as electromagnetic waves or as moving subatomic particles.
