Reflecting Shapes: The Magic of Mirror Images
What is Reflection in Geometry?

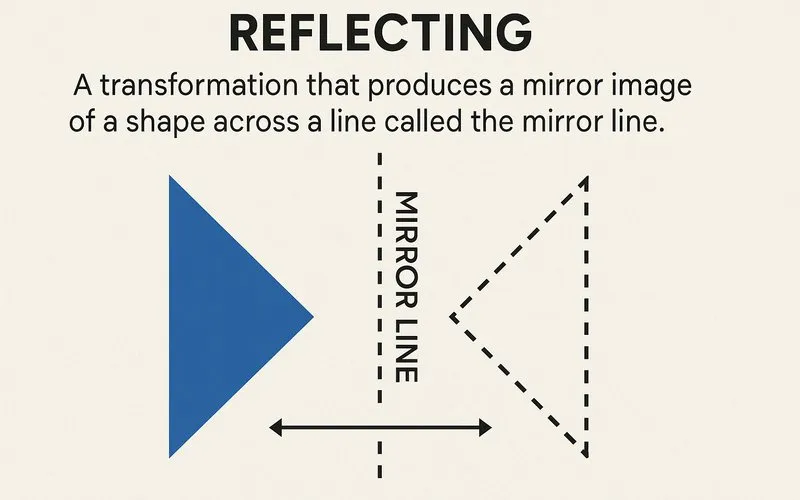

Reflection is one of the four main types of transformations in geometry, alongside translation, rotation, and dilation. When you reflect a shape, you create its mirror image across a specific line called the mirror line or line of reflection. Imagine placing a mirror on this line - the reflection is exactly what you would see in that mirror.
The original shape and its reflected image have some special relationships:
- They are congruent - same size and shape
- They are opposite orientations - like left and right hands
- Corresponding points are equidistant from the mirror line
- The line connecting corresponding points is perpendicular to the mirror line
The Mirror Line: Axis of Reflection
The mirror line is the heart of any reflection. It can be positioned in various ways relative to the coordinate axes:
| Mirror Line | Equation | Effect on Coordinates |
|---|---|---|
| x-axis | $y = 0$ | $(x, y) → (x, -y)$ |
| y-axis | $x = 0$ | $(x, y) → (-x, y)$ |
| Line $y = x$ | $y = x$ | $(x, y) → (y, x)$ |
| Line $y = -x$ | $y = -x$ | $(x, y) → (-y, -x)$ |
| Vertical line $x = a$ | $x = a$ | $(x, y) → (2a - x, y)$ |
| Horizontal line $y = b$ | $y = b$ | $(x, y) → (x, 2b - y)$ |
Step-by-Step Guide to Reflecting Shapes
Reflecting shapes might seem challenging at first, but by following these steps, you can master this transformation:
Method 1: The Counting Method (for beginners)
- Identify the mirror line and note its position
- For each vertex (corner) of the shape, count how far it is from the mirror line
- Plot the reflected point the same distance on the opposite side of the mirror line
- Connect the new points in the same order as the original shape
Example: Reflect a triangle with vertices at (2, 3), (4, 3), and (3, 5) across the y-axis.
The y-axis is the line x = 0. The point (2, 3) is 2 units to the right of the y-axis, so its reflection will be 2 units to the left at (-2, 3). Similarly, (4, 3) reflects to (-4, 3), and (3, 5) reflects to (-3, 5).
Method 2: The Coordinate Rule Method (for advanced students)
Use the coordinate transformation rules from the table above. For example, when reflecting across the line y = x, simply swap the x and y coordinates: (x, y) → (y, x).
Reflection and Symmetry: A Special Relationship
Reflection is closely connected to the concept of symmetry. A shape has line symmetry (or reflectional symmetry) if you can draw a line through it so that one side is the mirror image of the other. This line is called the line of symmetry.
Different shapes have different numbers of lines of symmetry:
- An isosceles triangle has 1 line of symmetry
- A rectangle has 2 lines of symmetry
- A square has 4 lines of symmetry
- A circle has infinite lines of symmetry
When a shape is reflected across one of its own lines of symmetry, the image coincides perfectly with the original shape. This is a special property that only symmetric shapes possess.
Reflections in the Real World
Reflections aren't just mathematical concepts - they appear everywhere in our daily lives and in nature:
Architecture and Design:
- Many buildings are designed with reflective symmetry, creating balanced and aesthetically pleasing structures
- Interior designers use reflection principles to create symmetrical room layouts
- Patterns in tiles, wallpaper, and fabrics often use reflection symmetry
Nature's Reflections:
- Butterfly wings are perfect examples of reflection symmetry
- Human faces and bodies have approximate reflection symmetry
- Many leaves exhibit reflection symmetry along their central vein
Technology and Science:
- Periscopes use reflection to see around obstacles
- Mirrors in telescopes and microscopes use reflection to magnify images
- Radar and sonar systems use the reflection principle to detect objects
Multiple Reflections and Combined Transformations
What happens when we reflect a shape more than once? The results can be fascinating:
Two reflections across parallel lines is equivalent to a translation. The distance of translation is twice the distance between the parallel lines.
Two reflections across intersecting lines is equivalent to a rotation. The center of rotation is the intersection point of the two mirror lines, and the angle of rotation is twice the angle between the lines.
These properties show how reflections can be combined to create other transformations. In fact, any isometry[1] (distance-preserving transformation) in the plane can be expressed as a sequence of at most three reflections.
Common Mistakes and Important Questions
Q: Is reflection the same as rotation?
No, reflection and rotation are different transformations. Reflection creates a mirror image, flipping the shape over a line. Rotation turns the shape around a fixed point. While both preserve size and shape, they affect orientation differently. A reflection always changes the orientation (like turning a left hand into a right hand), while a rotation of 180 degrees or less preserves orientation.
Q: What is the most common mistake when reflecting shapes?
The most common error is confusing the direction of reflection. Students often reflect in the wrong direction across the mirror line. Remember: the original shape and its reflection should be equidistant from the mirror line, on opposite sides. A good strategy is to pick one vertex, measure its perpendicular distance to the mirror line, and place the reflected vertex at the same perpendicular distance on the opposite side.
Q: Can a shape be reflected across a point?
Reflection across a point is actually a special rotation of 180 degrees about that point, not a true reflection. In a point reflection, every point and its image are equidistant from the center of reflection, but on opposite sides. This is different from line reflection, where points are reflected across a line rather than a point.
Reflection is a fundamental geometric transformation that creates mirror images of shapes across a specified line. By understanding the properties of reflections - including congruence, equidistance, and perpendicularity - we can accurately transform shapes and recognize symmetry in the world around us. From the simple reflection across coordinate axes to the complex patterns created by multiple reflections, this transformation demonstrates the elegant relationships inherent in geometric forms. Mastering reflection not only enhances our mathematical skills but also deepens our appreciation for the symmetrical patterns found throughout nature, art, and design.
Footnote
[1] Isometry: A transformation that preserves distances between points. Isometries include translations, rotations, reflections, and glide reflections. All isometries preserve the size and shape of figures, making them "rigid motions" in geometry.
