Rotation of Shapes: The Art of Turning
What Exactly is Rotation?

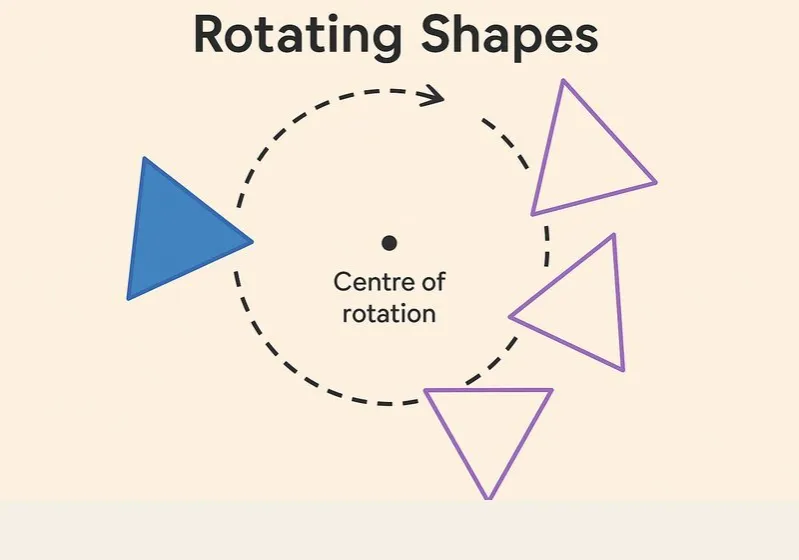

Imagine you're standing in one spot and turning around completely. Your feet stay in the same place, but your body faces different directions. This is exactly what happens in mathematical rotation! A rotation is a transformation that turns a shape around a fixed point, called the centre of rotation. The shape doesn't change size, flip, or slide - it simply turns, like a wheel rotating around its axle.
Every rotation has three essential elements that completely define it:
- Centre of rotation: The fixed point around which the shape turns
- Angle of rotation: How far the shape turns, measured in degrees
- Direction of rotation: Whether the turn is clockwise or counterclockwise
When a shape rotates, every point on the shape moves in a circular path around the centre of rotation. The distance from each point to the centre remains exactly the same throughout the rotation, which is why the shape maintains its size and shape.
The Three Components of Rotation
To fully understand rotation, let's examine each component in detail.
Centre of Rotation: This is the anchor point that stays fixed while everything else moves around it. The centre of rotation can be:
- Inside the shape (like the center of a square)
- On the edge of the shape (like a door hinge)
- Outside the shape completely
Angle of Rotation: This tells us how much to turn the shape. We measure rotation angles in degrees, with common rotations being 90°, 180°, 270°, and 360°. A 360° rotation brings the shape back to its original position.
Direction of Rotation: Mathematicians specify direction as either clockwise (turning to the right, like clock hands) or counterclockwise (turning to the left, opposite to clock hands). Counterclockwise is often considered the positive direction in mathematics.
Rotation on the Coordinate Plane
When we work with rotations on graph paper or coordinate planes, we can use specific rules to find the new positions of points after rotation. The origin (0, 0) is often used as the centre of rotation.
| Rotation | Rule (Counterclockwise) | Example: Point (2, 3) |
|---|---|---|
| 90° | $(x, y) → (-y, x)$ | $(2, 3) → (-3, 2)$ |
| 180° | $(x, y) → (-x, -y)$ | $(2, 3) → (-2, -3)$ |
| 270° | $(x, y) → (y, -x)$ | $(2, 3) → (3, -2)$ |
| 360° | $(x, y) → (x, y)$ | $(2, 3) → (2, 3)$ |
For clockwise rotations, the rules are reversed: 90° clockwise is the same as 270° counterclockwise, and 270° clockwise is the same as 90° counterclockwise.
Rotational Symmetry: When Shapes Look the Same After Turning
Some shapes have a special property called rotational symmetry. This means the shape can be rotated by a certain angle (less than 360°) and still look exactly the same as the original. The number of times a shape matches itself during a full 360° rotation is called its order of rotational symmetry.
For example, a square has rotational symmetry of order 4 because it looks the same after rotations of 90°, 180°, 270°, and 360°. An equilateral triangle has order 3, and a circle has infinite rotational symmetry since it looks the same at every possible angle.
Rotation in the Real World: From Playgrounds to Planets
Rotation isn't just a mathematical concept - it's everywhere in our daily lives and throughout the universe!
Everyday Examples:
- Doors: A door rotates around its hinges (the centre of rotation)
- Clock hands: The hour, minute, and second hands all rotate around the center of the clock face
- Ferris wheels: The entire structure rotates around its central axis
- Steering wheels: You rotate the wheel to change the direction of a vehicle
- Screwdrivers: You apply rotational force to drive screws into surfaces
Scientific and Natural Examples:
- Earth's rotation: Our planet completes one full rotation every 24 hours, causing day and night
- Gears in machines: Interlocking gears transfer motion through rotation
- Wind turbines: Blades rotate to convert wind energy into electricity
- DNA double helix: The molecular structure has a rotational pattern
- Solar system: Planets rotate on their axes while orbiting the sun
Step-by-Step Guide to Performing Rotations
Let's learn how to rotate a shape step by step. We'll rotate triangle ABC with vertices A(1, 1), B(3, 1), and C(2, 3) by 90° counterclockwise about the origin.
Step 1: Identify the centre of rotation
In this case, the origin (0, 0).
Step 2: Apply the rotation rule to each vertex
For 90° counterclockwise: $(x, y) → (-y, x)$
- Point A(1, 1) → A'(-1, 1)
- Point B(3, 1) → B'(-1, 3)
- Point C(2, 3) → C'(-3, 2)
Step 3: Plot the new points and connect them
Connect A', B', and C' to form the rotated triangle.
Step 4: Verify your work
Check that the distances between points are preserved and that the orientation has changed correctly.
Properties Preserved Under Rotation
Since rotation is a rigid transformation, it preserves many important geometric properties:
- Distance: The length of segments remains unchanged
- Angle measures: All angles in the shape stay the same size
- Parallelism: Parallel lines remain parallel after rotation
- Perpendicularity: Perpendicular lines remain perpendicular
- Collinearity: Points that were on a straight line remain on a straight line
- Area: The total area of the shape does not change
The only things that change are the position and orientation of the shape.
Common Mistakes and Important Questions
Q: What's the difference between rotation and revolution?
Rotation refers to an object spinning around an internal axis (like Earth spinning on its axis causing day and night). Revolution refers to an object moving in a circular path around an external point (like Earth revolving around the Sun causing seasons). In mathematics, we typically study rotation rather than revolution.
Q: How can I tell if a rotation is clockwise or counterclockwise?
Imagine yourself at the centre of rotation, facing toward the shape. If you would turn to your right to follow the movement, it's clockwise. If you would turn to your left, it's counterclockwise. Another method: make a circle with your right hand with your thumb pointing toward you. The direction your fingers curl is clockwise. For counterclockwise, use your left hand with your thumb pointing toward you.
Q: What is the most common error when performing rotations on a coordinate grid?
The most common error is mixing up the rules for different angles or directions. Students often apply the 90° rule when they need the 180° rule, or they forget to consider whether the rotation is clockwise or counterclockwise. Always double-check which rule applies to your specific rotation, and consider making a small sketch to verify your result makes sense.
Rotation is a fundamental geometric transformation that turns shapes around a fixed centre point while preserving their size and shape. Understanding the three key elements - centre of rotation, angle of rotation, and direction - allows us to accurately describe and perform rotations. From the simple turning of a door to the complex motions of celestial bodies, rotation is an essential concept that connects classroom mathematics to the real world. By mastering the coordinate rules for common rotations and recognizing rotational symmetry in various shapes, you develop spatial reasoning skills that are valuable in mathematics, science, engineering, and everyday problem-solving.
Footnote
[1] Rigid Transformation: A geometric transformation that preserves the size and shape of a figure. The three main rigid transformations are translation (sliding), reflection (flipping), and rotation (turning). In all these transformations, angles and side lengths remain unchanged.
