Understanding Pie Charts
What Exactly is a Pie Chart?

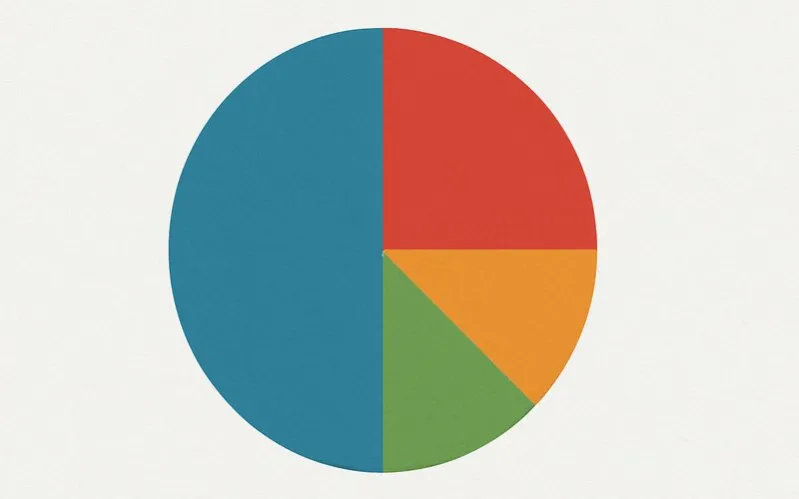

A pie chart is a circular graph that is divided into slices, much like a pizza or a real pie. Each slice, officially called a sector, represents a category from your data. The size of each sector is proportional to the quantity it represents. If one category makes up half of your total data, then its sector will take up half of the circle, which is 180 degrees. The primary purpose of a pie chart is to show the part-to-whole relationship, making it easy to see what fraction of the total each category contributes.
Imagine your class conducted a survey on favorite fruits. If 10 students like apples, 5 like bananas, and 5 like oranges, a pie chart would show you at a glance that half the class prefers apples, while bananas and oranges are equally liked by a quarter of the class each.
The Anatomy of a Pie Chart
To correctly read and create a pie chart, you need to understand its key components.
- Title: A clear title explains what the chart is representing (e.g., "Favorite Fruits in Class 5B").
- Circle: The base of the chart, representing the total 100%.
- Sectors (or Slices): The wedges cut from the circle. Each sector's area is proportional to its category's value.
- Labels & Legend: Text that identifies each sector. A legend is a small box that uses colors or patterns to show which sector corresponds to which category.
- Percentages or Values: Often, the actual percentage or numerical value is written on or near the sector for clarity.
The Math Behind the Slices: Calculating Angles
The most crucial mathematical step in creating a pie chart is converting data values into angles for each sector. Since a full circle has 360 degrees, the angle for each sector is calculated using a simple formula.
Let's use our fruit survey example. The total number of students is 10 + 5 + 5 = 20.
- Apples: $ (10 / 20) × 360° = 0.5 × 360° = 180° $
- Bananas: $ (5 / 20) × 360° = 0.25 × 360° = 90° $
- Oranges: $ (5 / 20) × 360° = 0.25 × 360° = 90° $
When you draw the chart, the sector for apples will be a perfect semicircle (180°), while the sectors for bananas and oranges will each be right angles (90°).
When to Use a Pie Chart (And When Not To)
Pie charts are powerful, but they are not the right tool for every situation. Understanding their strengths and weaknesses is key to effective data communication.
| Good For Pie Charts | Not Good For Pie Charts |
|---|---|
| Showing parts of a whole (percentages or proportions). | Showing changes over time (use a line graph instead). |
| Comparing a few categories (ideally 2 to 5). | Comparing many categories (it becomes a confusing "messy pie"). |
| When the total sum of the data is meaningful. | When you need to show exact values for precise comparisons. |
| Highlighting a dominant category or a significant minority. | When categories have very similar values (hard to distinguish slice sizes). |
A Step-by-Step Guide to Creating a Pie Chart
Let's create a pie chart from scratch using data on the energy sources for a school's electricity.
Data: Solar: 50 units, Wind: 30 units, Natural Gas: 20 units.
- Calculate the Total: 50 + 30 + 20 = 100 units.
- Calculate Percentages:
- Solar: $ (50 / 100) × 100% = 50% $
- Wind: $ (30 / 100) × 100% = 30% $
- Natural Gas: $ (20 / 100) × 100% = 20% $
- Calculate Angles:
- Solar: $ (50 / 100) × 360° = 180° $
- Wind: $ (30 / 100) × 360° = 108° $
- Natural Gas: $ (20 / 100) × 360° = 72° $
- Draw the Circle: Use a compass or trace a circular object.
- Draw the Sectors: Using a protractor, start from a vertical line (12 o'clock position) and measure each angle one after the other.
- Label and Color: Color each sector differently. Add a title ("School Energy Sources") and a legend to identify what each color represents. It is also helpful to write the percentages on the corresponding slices.
Pie Charts in Action: Real-World Applications
Pie charts are used in a wide variety of fields to make data understandable at a glance.
In Business and Economics:
- Budget Allocation: A company can use a pie chart to show how it spends its total revenue, with slices for salaries, marketing, research, and other expenses.
- Market Share: It can visually display what percentage of the total market is controlled by different companies (e.g., Company A has 45%, Company B has 30%, etc.).
In Science and Academia:
- Biology: Showing the composition of a cell (e.g., percentage of water, proteins, lipids, etc.).
- Environmental Science: Illustrating the composition of gases in the atmosphere (e.g., 78% Nitrogen, 21% Oxygen, 1% other gases).
- Survey Analysis: Displaying the results of any survey, like our favorite fruit example.
In Everyday Life:
- Nutritional Labels: A pie chart can show the breakdown of fat, carbohydrates, and protein in a food item.
- Time Management: You could create a pie chart of how you spend your 24 hours in a day (sleeping, school, homework, leisure).
Beyond the Basic Pie: Doughnut and Exploded Charts
There are variations of the classic pie chart that serve specific purposes.
- Doughnut Chart: This is a pie chart with a hole in the center. It functions exactly like a pie chart but is sometimes considered visually less heavy. The empty center can also be used to display a total number or a separate piece of information.
- Exploded Pie Chart: In this type, one or more sectors are separated ("exploded") from the rest of the pie. This is used to emphasize a particular category, such as the most popular product in a sales report.
Common Mistakes and Important Questions
Q: What is the biggest mistake people make when using pie charts?
The most common and damaging mistake is including too many categories. When a pie chart has more than 5-6 slices, it becomes very difficult to visually compare the sizes of the smaller slices. The chart becomes cluttered and loses its main advantage: instant clarity. If you have many categories, consider using a bar chart instead.
Q: Is a pie chart or a bar chart better?
It depends on your goal. Use a pie chart to show how individual parts contribute to a whole. Use a bar chart to compare different categories against each other, especially when the total sum is not the main point of interest. Bar charts are generally more effective for precisely comparing the sizes of different categories because it's easier for the human eye to compare the lengths of bars than the angles and areas of pie slices.
Q: Do the slices in a pie chart have to be arranged in a specific order?
While there is no strict mathematical rule, it is a widely accepted best practice to order the slices from largest to smallest, starting at the 12 o'clock position and moving clockwise. This makes the chart easier to read and interpret, as the largest category is immediately visible. Sometimes, to tell a better story, you might group certain related categories together.
The pie chart remains one of the most recognizable and intuitive tools for data visualization. Its strength lies in its simplicity—it effortlessly communicates the concept of a whole divided into its constituent parts. By understanding the mathematics behind the angles, knowing when it is the appropriate chart to use, and avoiding common pitfalls like over-crowding, you can effectively use pie charts to tell compelling stories with your data. Remember, the goal is always clarity, and a well-constructed pie chart can provide a snapshot of your data that is both informative and immediately understandable.
Footnote
[1] Sector: In geometry, a sector is a portion of a circle enclosed by two radii and an arc. In the context of a pie chart, it is the "slice" that represents a data category.
[2] Legend: A key or guide that explains the symbols, colors, or patterns used in a chart or map.
[3] Protractor: A semi-circular or circular instrument used for measuring angles in degrees.
