Understanding Time Series Graphs
The Basics of Time Series Graphs

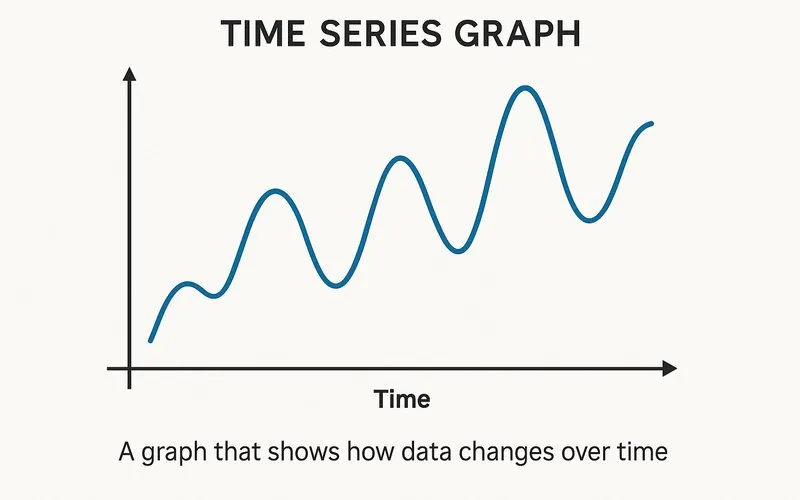

A time series graph is like a storybook of data. It tells you what happened, when it happened, and how things changed over a period. The most important rule is that time is always on the horizontal axis (x-axis), and the variable you're measuring is on the vertical axis (y-axis). This creates a consistent, easy-to-understand format that lets you see patterns at a glance.
Imagine tracking your height from age 5 to 15. Each year, you would mark a point on the graph showing your height at that age. When you connect these points, you get a line that shows your growth pattern. This is the essence of a time series graph – it turns a list of numbers into a visual story of change.
Essential Components of Time Series Graphs
Every good time series graph has several key components that work together to tell a clear data story:
- Title: Clearly describes what the graph shows and the time period covered.
- Horizontal Axis (X-axis): Always represents time units (seconds, days, years, etc.).
- Vertical Axis (Y-axis): Shows the scale for the variable being measured.
- Data Points: Individual measurements plotted at specific times.
- Line/Bars/Points: The visual elements connecting or representing the data.
- Legend: Explains what different lines or colors represent (if multiple series are shown).
| Time Interval | Description | Example |
|---|---|---|
| Seconds/Minutes | Very short-term measurements | Heart rate monitoring, Stock ticker data |
| Hours/Days | Daily or hourly patterns | Temperature changes, Website traffic |
| Weeks/Months | Seasonal or monthly trends | Retail sales, Energy consumption |
| Years/Decades | Long-term trends | Population growth, Climate change data |
Recognizing Patterns in Time Series Data
One of the most valuable aspects of time series graphs is their ability to reveal patterns. There are four main types of patterns to look for:
Trend: This is the long-term direction of the data. Is it generally increasing, decreasing, or staying stable over time? For example, the trend of global temperatures over the past century has been upward.
Seasonality: Regular, predictable patterns that repeat every year, month, week, or day. Ice cream sales show seasonality – they rise every summer and fall every winter.
Cycles: Patterns that rise and fall over periods longer than a year, often related to economic conditions. The housing market often shows cycles of boom and bust over several years.
Irregular Variations: Random, unpredictable fluctuations that don't follow a pattern. These could be caused by unexpected events like natural disasters or sudden market changes.
Creating Effective Time Series Graphs
Creating a good time series graph involves several important decisions. The choice of time intervals is crucial – if you're looking at daily temperature patterns, showing data by year would hide the daily cycle. Similarly, the scale of the vertical axis can dramatically change how the data appears. A small scale can make small changes look dramatic, while a large scale can make big changes look insignificant.
When plotting multiple series on the same graph, use different colors or line styles and include a clear legend. For data with a lot of short-term variation, you might use a moving average[1] to smooth out the noise and see the underlying trend more clearly. The formula for a simple moving average is: $MA_t = \frac{X_t + X_{t-1} + ... + X_{t-n+1}}{n}$ where $MA_t$ is the moving average at time $t$, $X_t$ is the value at time $t$, and $n$ is the number of periods in the average.
Time Series Graphs in Action: Real-World Applications
Time series graphs are used in virtually every field to monitor changes, identify patterns, and make predictions. Here are some compelling examples:
Economics and Finance: Stock prices are perhaps the most famous use of time series graphs. Traders use candlestick charts (a type of time series graph) to track price movements of stocks, currencies, and commodities. The Consumer Price Index (CPI)[2] is tracked over time to measure inflation.
Science and Medicine: Climate scientists use time series graphs to show changes in global temperature, sea levels, and carbon dioxide concentrations over decades. Doctors use them to track patients' vital signs like heart rate and blood pressure during surgery or recovery.
Business and Marketing: Companies track website traffic, sales figures, and social media engagement over time to understand customer behavior and campaign effectiveness. A retailer might track daily sales to plan inventory and staffing.
Everyday Life: Your smartwatch tracks your daily step count, heart rate, and sleep patterns over time. Weather apps show temperature forecasts as time series graphs. Even tracking your test scores throughout a school year creates a time series that shows your academic progress.
| Graph Type | Description | Best For |
|---|---|---|
| Line Graph | Points connected by straight lines | Continuous data, trends over time |
| Bar Chart | Separate bars for each time period | Discrete data, comparisons between periods |
| Area Graph | Area below line is filled with color | Cumulative totals, part-to-whole relationships |
| Scatter Plot | Individual points without connecting lines | Identifying relationships, outliers |
Common Mistakes and Important Questions
Q: What's the difference between a time series graph and a regular line graph?
All time series graphs are line graphs, but not all line graphs are time series graphs. The key difference is that a time series graph must have time on the horizontal axis. A regular line graph could have any variable on the x-axis, such as distance, temperature, or age. For example, a graph showing temperature vs. pressure isn't a time series, but a graph showing temperature vs. time is.
Q: Why is it important to have equal time intervals on the x-axis?
Equal intervals are crucial because they prevent distortion of the data. If you plot January, February, and then December (skipping months in between), the graph would show a misleading dramatic change. Equal intervals ensure that the slope of the line accurately represents the rate of change over time. Uneven intervals can make gradual changes look sudden or hide important patterns.
Q: Can I use a time series graph to predict future values?
Yes, this is one of the main uses of time series analysis! By identifying patterns and trends in historical data, we can make educated predictions about future values. This is called forecasting. However, it's important to remember that these are estimates, not guarantees. Unexpected events can always disrupt existing patterns. The further into the future you try to predict, the less accurate your forecast is likely to be.
Time series graphs are indispensable tools for understanding how data changes over time. By placing time consistently on the horizontal axis, they create a universal language for tracking trends, patterns, and relationships in data across countless domains. From monitoring your daily step count to analyzing global economic trends, these visualizations turn raw numbers into meaningful stories about change. Learning to read, interpret, and create time series graphs equips you with a fundamental skill for navigating our data-rich world, enabling you to spot patterns, understand changes, and make more informed decisions based on historical trends.
Footnote
[1] Moving Average: A statistical calculation used to analyze data points by creating a series of averages of different subsets of the full data set. It is used to smooth out short-term fluctuations and highlight longer-term trends or cycles in time series data.
[2] CPI (Consumer Price Index): A measure that examines the weighted average of prices of a basket of consumer goods and services, such as transportation, food, and medical care. It is calculated by taking price changes for each item in the predetermined basket of goods and averaging them. The CPI is one of the most frequently used statistics for identifying periods of inflation or deflation.
