The Octagon: An Eight-Sided Wonder
Defining the Octagon and Its Core Properties
An octagon is a polygon with eight sides and eight vertices (corners). The most studied type is the regular octagon, where all sides are of equal length and all interior angles are of equal measure. This symmetry gives it unique and predictable properties. An irregular octagon has sides and angles of different measures, but it still must have eight straight sides to qualify.
A key property of any octagon is the sum of its interior angles. The formula for the sum of the interior angles of any polygon is $(n-2) \times 180^\circ$, where $n$ is the number of sides. For an octagon ($n=8$), this gives us:
In a regular octagon, since all eight angles are equal, each interior angle measures $1080^\circ \div 8 = 135^\circ$. Each exterior angle, which forms a straight line with the interior angle, will therefore be $180^\circ - 135^\circ = 45^\circ$. The sum of all exterior angles is always $360^\circ$ for any convex polygon.
Calculating Perimeter and Area
The perimeter of any polygon is the sum of the lengths of all its sides. For a regular octagon with side length $s$, the perimeter $P$ is simply:

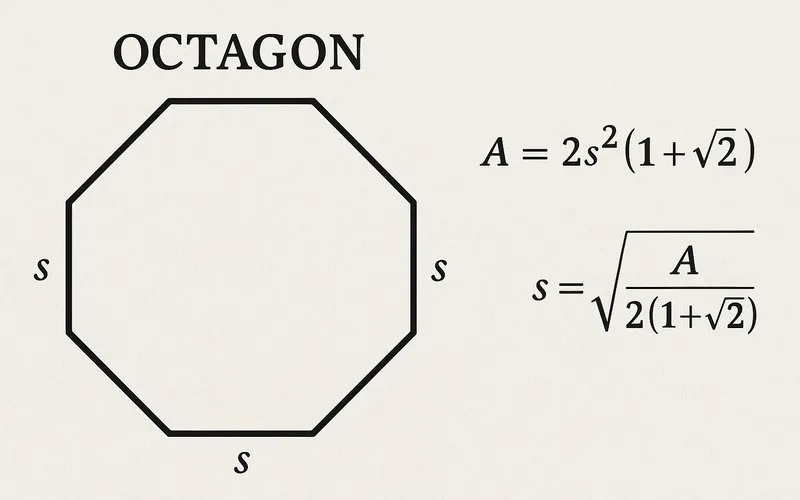

Calculating the area is more involved. There are two common formulas for the area $A$ of a regular octagon. The first uses the side length $s$:
The second formula uses the distance from the center to a vertex, known as the circumradius $R$, or the distance from the center to the middle of a side, known as the apothem $a$.
Let's see an example: A regular octagon has a side length of $5$ cm. Its perimeter is $8 \times 5 = 40$ cm. Its area is $A = 2(1+\sqrt{2}) \times 5^2 \approx 2 \times (1+1.414) \times 25 = 2 \times 2.414 \times 25 = 120.7$ cm$^2$.
Regular vs. Irregular Octagons
It's crucial to distinguish between regular and irregular octagons. Their properties and the methods for calculating their measurements are different. The table below highlights the key differences.
| Property | Regular Octagon | Irregular Octagon |
|---|---|---|
| Sides | All eight sides are equal. | Sides are of different lengths. |
| Interior Angles | All eight angles are equal to $135^\circ$. | Angles have different measures, but their sum is still $1080^\circ$. |
| Symmetry | Has 8 lines of symmetry and rotational symmetry of order 8. | May have little or no symmetry. |
| Area Calculation | Simple formula: $A = 2(1+\sqrt{2})s^2$. | Must be divided into smaller shapes (triangles, rectangles) to find the total area. |
Octagons in the World Around Us
The octagon is not just a mathematical concept; it has many practical applications. The most famous example is the stop sign. Its regular octagonal shape is instantly recognizable, even from a distance or when the word "STOP" is not visible, making it a critical safety feature on roads worldwide.
In architecture, octagons are used in the design of floors, towers, and windows. For instance, the base of the Dome of the Rock in Jerusalem is a prominent octagonal structure. Many fountains and gazebos are also built with an octagonal footprint because the shape provides a good balance between a circle (which is hard to build with straight materials) and a square, offering more facing directions.
Another interesting example is in everyday objects. Some umbrellas are shaped like octagons when open, and a traditional soccer ball is made of a combination of pentagons and hexagons, but truncated octahedrons (a polyhedron with octagonal faces) can also be found in molecular structures and packaging design.
Common Mistakes and Important Questions
Q: Is every eight-sided shape an octagon?
A: Yes, by definition, any two-dimensional, closed figure with eight straight sides is an octagon. However, it can be regular (all sides and angles equal) or irregular (sides and angles not equal).
Q: What is the most common error when calculating the area of a regular octagon?
A: The most common error is using the formula for a square. Students often mistakenly multiply the side length by itself ($s^2$). It's important to remember the specific formula $A = 2(1+\sqrt{2})s^2$ or to use the apothem method. Another frequent mistake is forgetting to square the side length in the formula.
Q: How many diagonals does an octagon have?
A: A diagonal is a line segment joining two non-adjacent vertices. The formula for the number of diagonals in a polygon is $\frac{n(n-3)}{2}$. For an octagon ($n=8$), the number of diagonals is $\frac{8 \times (8-3)}{2} = \frac{8 \times 5}{2} = 20$.
The octagon is a fascinating and versatile geometric shape that serves as an excellent tool for learning fundamental mathematical concepts. From understanding the sum of interior angles to applying area formulas, the study of octagons bridges simple arithmetic and more complex algebraic thinking. Its prevalence in the real world, from traffic signs to architectural masterpieces, demonstrates the profound connection between abstract mathematics and our daily lives. Mastering the properties and calculations related to octagons equips students with valuable spatial and problem-solving skills.
Footnote
This article uses the following terms which are defined here for clarity:
[1] Polygon: A two-dimensional closed figure with three or more straight sides. Examples include triangles, squares, and octagons.
[2] Apothem (a): A line segment from the center of a regular polygon to the midpoint of one of its sides. It is perpendicular to that side.
[3] Circumradius (R): The radius of a circle that passes through all the vertices of a polygon. For a regular polygon, this is the distance from the center to a vertex.
