The Art of Inscribing Shapes
Fundamental Concepts of Inscription

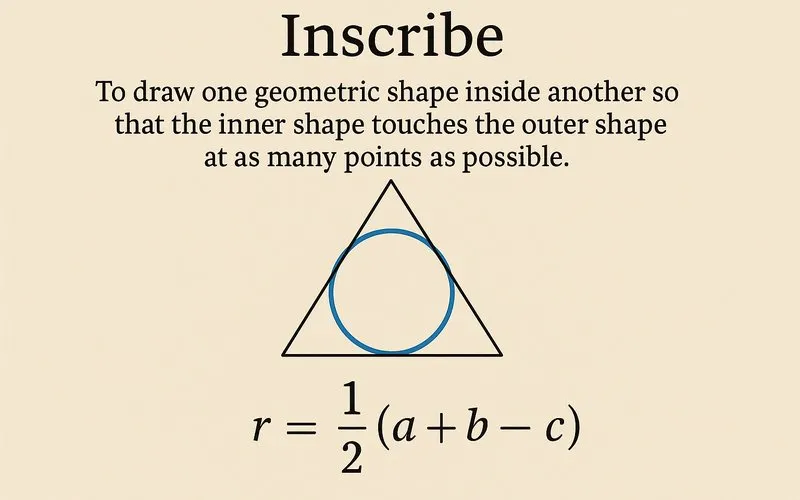

To inscribe one shape inside another means to draw it so that it fits perfectly, touching the outer shape at as many points as possible without overlapping its boundaries. The points of contact are crucial. For curved shapes, like circles, this contact is called tangency[1]. For polygons, the inner shape often touches the outer one at its vertices or along its sides.
Let's start with the most classic example: a circle inscribed in a square. The circle touches each side of the square at exactly one point. Because the square has four sides, the circle makes contact at four points. The diameter of the inscribed circle is exactly equal to the side length of the square. If the square has a side length of $s$, the radius $r$ of the circle is $r = \frac{s}{2}$.
Now, consider inscribing a square inside a circle. This is different! Here, the vertices of the square all lie on the circle. The circle is now circumscribed[2] around the square. The diagonal of the square is equal to the diameter of the circle. If the circle has a radius $R$, the side length $s$ of the square can be found using the Pythagorean theorem: $s^2 + s^2 = (2R)^2$, which simplifies to $2s^2 = 4R^2$, so $s = R\sqrt{2}$.
Inscribing Triangles and Regular Polygons
Inscribing becomes more interesting with triangles and other polygons. Every triangle has a unique circle inscribed inside it, called the incircle[3]. The center of this circle is the incenter, which is the point where the three angle bisectors of the triangle meet. The incircle is tangent to all three sides of the triangle.
Similarly, every triangle has a unique circumscribed circle, called the circumcircle[4], which passes through all three vertices. Its center is the circumcenter, the point where the perpendicular bisectors of the sides meet.
| Triangle Type | Incenter Location | Circumcenter Location |
|---|---|---|
| Acute Triangle | Inside the triangle | Inside the triangle |
| Right Triangle | Inside the triangle | On the hypotenuse (midpoint) |
| Obtuse Triangle | Inside the triangle | Outside the triangle |
For regular polygons[5] (polygons with all sides and angles equal), you can always inscribe a circle. This inscribed circle will be tangent to each side of the polygon at its midpoint. The center of the polygon and the center of the inscribed circle are the same point. The radius of this incircle is called the apothem of the polygon. The apothem is crucial for calculating the area of a regular polygon: $Area = \frac{1}{2} \times Perimeter \times Apothem$.
Maximizing Contact: The Role of Symmetry
Why does a circle inscribed in a square touch at four points and not more? A square has four lines of symmetry. The most symmetric shape you can put inside it, a circle, aligns with this symmetry, resulting in four points of contact. To achieve the maximum number of contact points, the inner shape must often share the same symmetry as the outer shape.
Imagine inscribing an equilateral triangle inside a circle. The three vertices of the triangle touch the circle, giving three points of contact. Now, could you inscribe a square in that same circle? Yes, and it would have four points of contact. In fact, you can inscribe a regular polygon with any number of sides inside a circle, and the number of contact points will equal the number of vertices. The circle, being perfectly symmetric, can accommodate this.
However, if you try to inscribe a rectangle that is not a square inside a circle, its vertices will still all lie on the circle, but the rectangle itself has less symmetry than the circle. The key is that the circle is the circumcircle of that rectangle. The maximum contact is still achieved at the four vertices.
Practical Applications and Problem Solving
The concept of inscription is not just theoretical; it has many practical applications. Engineers and designers use these principles all the time.
Example 1: Packaging. Why are many cans cylindrical? Imagine placing a cylindrical can inside a square box for shipping. The can is essentially a circle inscribed in a square when viewed from the top. This configuration uses the space inside the box efficiently, with the can touching the box at four points, which helps stabilize it. The space in the corners is wasted, but the primary container (the can) is secure.
Example 2: Architecture and Design. A classic window design is a circular window inside a square frame. To build this, a craftsman needs to know the maximum size of the circular glass that can fit into the square opening. Using the inscription formula, if the square opening is 1 meter on each side, the largest circular glass pane that can fit has a diameter of 1 meter and a radius of 0.5 meters.
Example 3: Land Surveying. Finding the largest rectangular plot that can fit inside a circular piece of land is a problem of inscribing a rectangle in a circle. The largest possible area is achieved when the rectangle is a square. If the circular plot has a radius $R$, the largest square inside it has a side length of $s = R\sqrt{2}$, as we calculated earlier.
Common Mistakes and Important Questions
Q: Is a shape still inscribed if it only touches at one point?
A: No, the definition requires "as many points as possible." For two circles of different sizes, the smallest number of points they can touch at is one (if one is inside the other but not concentric). However, this is not the maximum possible. The maximum for two circles is infinite if they are concentric, but that's a special case. Typically, for a circle inside another circle, the maximum contact is achieved when they are concentric, touching at every point along the circumference of the inner circle. For practical problems, we usually look for a finite number of distinct contact points, like a polygon inscribed in a circle touching at its vertices.
Q: What is the difference between "inscribed in" and "circumscribed about"?
A: This is a common source of confusion. The key is perspective. Shape A is inscribed in Shape B if A is inside B and their boundaries touch at as many points as possible. Conversely, Shape B is circumscribed about Shape A. For example, a circle inscribed in a square is the same as a square circumscribed about a circle. The inner shape is inscribed, and the outer shape is circumscribed.
Q: Can any shape be inscribed in any other shape?
A: No. There are specific geometric conditions that must be met. For instance, you cannot inscribe a square with a given large area inside a small circle. The diagonal of the square must be less than or equal to the diameter of the circle. Similarly, for a triangle to have an incircle, its three angle bisectors must meet at a single point (the incenter), which they always do, but the circle will only be tangent to the sides if it's positioned correctly. The concept of "maximum points of contact" defines the limiting case of what is possible.
Footnote
[1] Tangency: A point where a curve, such as a circle, touches another geometric object, like a line or another circle, without crossing it. At the point of tangency, the two objects share a common tangent line.
[2] Circumscribed: A figure drawn around another geometric shape so that the inner shape is inscribed in it. The outer shape touches the inner shape at as many points as possible. For example, a circle circumscribed about a polygon passes through all the polygon's vertices.
[3] Incircle: The circle inscribed within a polygon, typically a triangle, that is tangent to each of the polygon's sides.
[4] Circumcircle: The circle that passes through all the vertices of a given polygon. The polygon is said to be inscribed within the circumcircle.
[5] Regular Polygon: A polygon that is both equiangular (all angles are equal) and equilateral (all sides are equal). Examples include equilateral triangles, squares, and regular pentagons.
