Mastering Compound Shapes and Their Measurements
The Core Idea: Decomposition and Recomposition
A compound shape, also known as a composite shape, is any figure that can be divided into two or more simple, familiar geometric shapes, such as rectangles, triangles, circles, or cubes. The fundamental strategy for working with these shapes is a two-step process: decomposition and recomposition.
Decomposition is the act of mentally or physically dividing the complex shape into non-overlapping simpler parts. For example, an "L"-shaped room can be decomposed into two separate rectangles. Recomposition is the final step where you combine the results of your calculations on the individual parts to find the total area or volume of the original compound shape.
This principle applies universally, whether you are calculating the area of a irregular plot of land or the volume of a multi-chambered container.

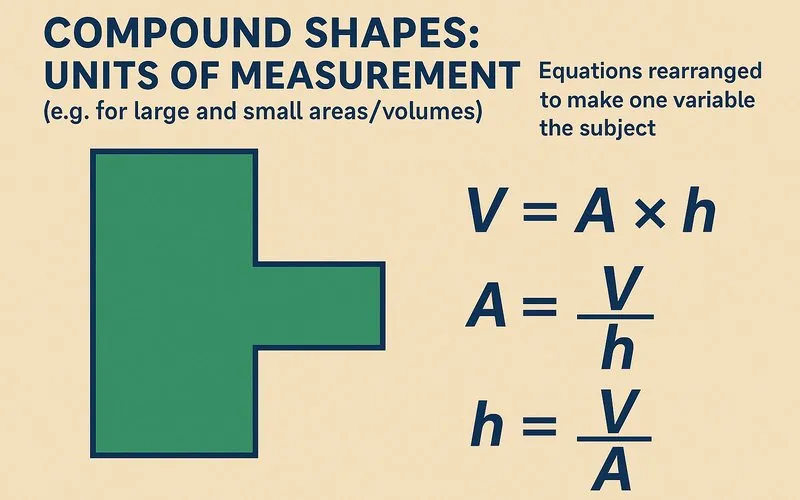

Units of Measurement for Area and Volume
Before diving into calculations, it's crucial to understand the units. All measurements must be in the same unit before you can add them together. Area is measured in square units ($unit^2$), and volume is measured in cubic units ($unit^3$).
| Measurement | Small Unit | Common Unit | Large Unit | Real-World Example |
|---|---|---|---|---|
| Area | Square Millimeter (mm²) | Square Meter (m²) | Square Kilometer (km²) | A postage stamp, a room, a city |
| Volume | Cubic Centimeter (cm³) | Cubic Meter (m³) | Cubic Kilometer (km³) | A sugar cube, a swimming pool, a large lake |
Remember: 1 m² = 10,000 cm² and 1 m³ = 1,000,000 cm³. Converting between units is a critical step to ensure accuracy.
Step-by-Step: Calculating Area of a Compound Shape
Let's work through a concrete example. Imagine you need to carpet an "L"-shaped room. The floor plan looks like two rectangles joined together.
Step 1: Decompose the Shape. Divide the "L" into two rectangles, A and B. Suppose Rectangle A is 5 m by 4 m, and Rectangle B is 3 m by 2 m.
Step 2: Calculate the Area of Each Part.
- Area of A: $A_A = 5 \times 4 = 20 m^2$
- Area of B: $A_B = 3 \times 2 = 6 m^2$
Step 3: Recombine the Parts. Add the areas together to find the total area.
$A_{total} = A_A + A_B = 20 + 6 = 26 m^2$
So, you would need 26 m² of carpet. This method works for shapes composed of any combination of rectangles, triangles, circles, etc. For a triangle, you would use $A = \frac{1}{2} \times base \times height$, and for a circle, $A = \pi r^2$.
From Flat to Solid: Calculating Volume of Compound Shapes
The logic for volume is identical to that for area, but we are now working in three dimensions. A compound solid is a 3D object made up of simpler solids like cubes, rectangular prisms, cylinders, and spheres.
Consider a storage silo made of a cylinder with a conical roof. To find the total volume of storage space, you would calculate the volume of the cylinder and the volume of the cone separately, then add them together.
- Volume of a cylinder: $V = \pi r^2 h$
- Volume of a cone: $V = \frac{1}{3} \pi r^2 h$
If the cylinder has a radius of 2 m and height of 5 m, and the cone has a height of 3 m (with the same radius), the calculation would be:
$V_{cylinder} = \pi \times (2)^2 \times 5 = 20\pi m^3$
$V_{cone} = \frac{1}{3} \times \pi \times (2)^2 \times 3 = 4\pi m^3$
$V_{total} = 20\pi + 4\pi = 24\pi m^3 \approx 75.4 m^3$
This silo can hold approximately 75.4 m³ of material.
Real-World Applications: From Floor Plans to Planetary Science
The concepts of compound shapes are not just for math class; they are used everywhere.
Architecture and Construction: An architect designing a house must calculate the total floor area to determine the amount of flooring, the volume of rooms for heating and cooling calculations, and the area of walls for painting or siding. A house floor plan is a perfect example of a compound shape, often composed of many rectangles, and sometimes triangles or semicircles for features like bay windows.
Manufacturing and Packaging: A complex machine part might be modeled as a combination of cylinders and rectangular prisms to calculate its volume and thus its mass if the density of the material is known. Packaging designers use these principles to calculate the internal volume of a box made from different sections, ensuring a product fits perfectly.
Geography and Environmental Science: On a much larger scale, scientists use these methods to estimate the surface area of a lake with an irregular shoreline (by approximating it with smaller geometric shapes) or the volume of a valley. To estimate the volume of water in a reservoir, they might model it as a series of stacked trapezoidal prisms.
Common Mistakes and Important Questions
Q: I decomposed my shape and added all the areas, but my answer is wrong. What is the most common cause of this?
Q: When decomposing a shape, is there only one correct way to do it?
Q: How do I handle shapes with holes or cut-out sections?
Footnote
1 CPI: Consumer Price Index. An indicator that measures the average change in prices over time that consumers pay for a basket of goods and services. While not directly used in this article, it is an example of a complex index that, like a compound shape, can be broken down into constituent parts for analysis.
2 Decomposition: In the context of geometry, the process of breaking down a complex shape into simpler, recognizable component shapes.
3 Recomposition: The process of combining the results from the individual component shapes to find a property (like area or volume) of the original complex shape.
