Scale Drawing: Shrinking and Enlarging Our World
The Core Concept: Scale Factor and Ratio

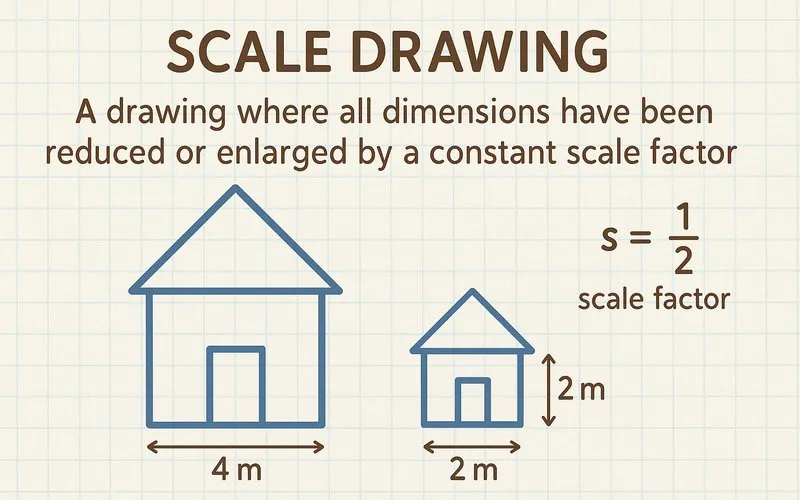

At the heart of every scale drawing is the scale factor. It is the constant multiplier that relates every measurement in the drawing to the corresponding measurement on the actual object. This relationship is almost always expressed as a ratio.
For example, a scale of $ 1 : 100 $ means that $ 1 $ centimeter on the drawing represents $ 100 $ centimeters, or $ 1 $ meter, in real life. If you measure a wall on this drawing and find it to be $ 5 $ cm long, the actual wall length is $ 5 \times 100 = 500 $ cm ($ 5 $ m).
Conversely, an enlargement has a scale factor greater than 1. A drawing of an ant at a scale of $ 10 : 1 $ means $ 10 $ cm on the drawing represents just $ 1 $ cm on the actual ant.
Interpreting and Using Different Scale Types
Scales can be represented in a few different ways, each useful in specific contexts. The most common are the ratio scale, the representative fraction (RF), and the graphical or bar scale.
The representative fraction is simply the ratio written as a fraction, e.g., $ 1/100 $. It is a dimensionless number, meaning the units must be the same on both sides. A $ 1/100 $ scale means the drawing is one-hundredth the size of the real object.
A graphical scale uses a drawn bar on the map that is marked with the real-world distances it represents. This is very useful because if the paper map is physically enlarged or reduced (e.g., by photocopying), the bar scale changes along with it, remaining accurate, whereas a numerical ratio becomes incorrect.
| Scale Type | Example | Interpretation | Common Use |
|---|---|---|---|
| Ratio | $ 1 : 50,000 $ | 1 cm on map = 50,000 cm (0.5 km) in reality. | Road maps, atlases |
| Representative Fraction (RF) | $ \frac{1}{4} $ | The drawing is a quarter of the object's actual size. | Model car plans, diagrams |
| Statement | 2 cm = 1 km | 2 centimeters on the map represents 1 kilometer on the ground. | Hiking maps, city plans |
From Paper to Reality: A Step-by-Step Calculation Guide
Working with scale drawings involves three main types of calculations: finding an actual length, finding a drawing length, and determining the scale itself. The key is to set up a simple proportion.
Example 1: Finding Actual Length
A blueprint has a scale of $ 1 : 20 $. A room is drawn as 8 cm long. What is the actual length of the room?
- Set up the proportion: $ \frac{8}{\text{Actual Length}} = \frac{1}{20} $
- Cross-multiply: $ \text{Actual Length} \times 1 = 8 \times 20 $
- Solve: $ \text{Actual Length} = 160 $ cm, or $ 1.6 $ m.
Example 2: Finding Drawing Length
You want to draw a $ 3 $ m tall tree on a scale drawing where $ 1 $ cm = $ 0.5 $ m. How tall should you draw the tree?
- First, find the scale ratio. $ 1 $ cm : $ 0.5 $ m is the same as $ 1 $ cm : $ 50 $ cm, which simplifies to a scale of $ 1 : 50 $.
- Set up the proportion: $ \frac{\text{Drawing Length}}{300} = \frac{1}{50} $ (since $ 3 $ m = $ 300 $ cm).
- Cross-multiply: $ \text{Drawing Length} \times 50 = 300 \times 1 $
- Solve: $ \text{Drawing Length} = \frac{300}{50} = 6 $ cm.
Scale Drawings in Action: Maps, Models, and Blueprints
The practical applications of scale drawings are everywhere. Maps are the most familiar example. A world map uses a very small scale (e.g., $ 1 : 100,000,000 $) to fit the entire planet on a single page, while a city map uses a larger scale (e.g., $ 1 : 25,000 $) to show streets and landmarks in detail.
Architectural blueprints and engineering drawings use scales to represent buildings, bridges, and machines. A scale of $ 1 : 100 $ or $ 1 : 50 $ is common for floor plans, allowing builders to take precise measurements directly from the paper.
Models, such as model airplanes, cars, or DNA molecules, are three-dimensional scale drawings. The scale tells you how much smaller the model is compared to the real object. For instance, a $ 1 : 72 $ scale model airplane means the real plane is 72 times longer, wider, and taller than the model.
Common Mistakes and Important Questions
Q: I often mix up which number in the ratio is for the drawing and which is for reality. Is there an easy way to remember?
Q: Why is it so important to keep units the same when calculating?
Q: Does the scale factor apply to area and volume as well?
Scale drawing is a powerful and practical mathematical tool that bridges the gap between the immense, the minuscule, and the manageable. By mastering the concept of a constant scale factor and the simple mathematics of ratios and proportions, we can accurately interpret the world presented on a map, bring architectural visions to life through blueprints, and create detailed models of everything from atoms to galaxies. Remembering to handle units with care and understanding how scale affects area and volume are the final, crucial steps in becoming proficient with this essential skill.
Footnote
1 RF (Representative Fraction): The ratio between a distance on a map or drawing and the corresponding distance on the ground or actual object, expressed as a fraction. It is dimensionless.
2 Blueprint: A type of technical drawing, typically an architectural or engineering plan, printed as a white-on-blue photographic print, now often used to refer to any detailed plan.
3 Scale Factor: The constant number by which all dimensions of an original figure are multiplied to create a scaled copy.
