Cylinder: The Shape of Our World
Defining the Cylinder and Its Key Properties

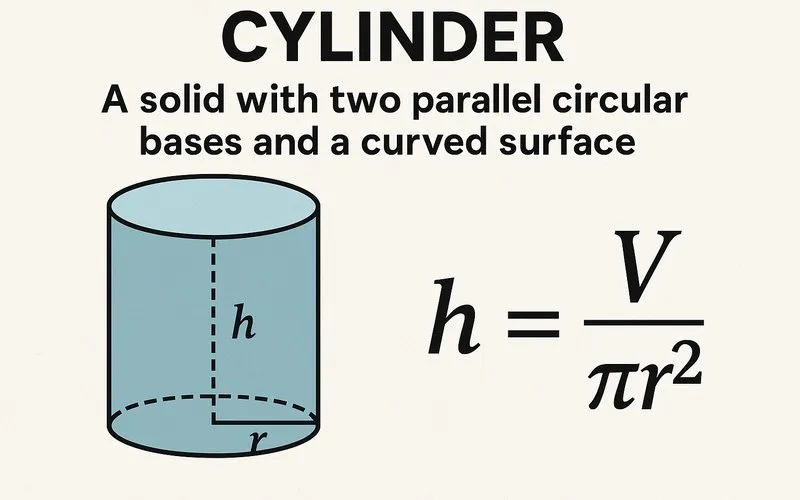

A cylinder is a solid figure with two parallel circular bases of the same size. The axis of the cylinder is the line segment joining the centers of the two circular bases. If the axis is perpendicular to the bases, it is called a right circular cylinder[1]; if it is slanted, it is an oblique cylinder. For the purpose of this article, we will focus primarily on right circular cylinders, as they are the most common type studied in school.
The main components of a right circular cylinder are:
- Bases: The two parallel, congruent circular faces.
- Radius (r): The distance from the center of a base to its edge.
- Height (h): The perpendicular distance between the two bases.
- Axis: The line joining the centers of the two bases.
- Lateral Surface: The curved surface that connects the two bases.
Calculating Volume and Surface Area
The volume of a cylinder tells us how much space it occupies, while the surface area is the total area of all its faces. These are the two most important calculations related to cylinders.
Volume of a Cylinder
The volume of a cylinder is found by multiplying the area of its circular base by its height. The area of a circle is given by $A = \pi r^2$. Therefore, the formula for the volume (V) of a cylinder is:
Where:
$V$ = Volume
$r$ = Radius of the base
$h$ = Height of the cylinder
$\pi$ is approximately 3.14159
Example: A cylindrical water tank has a radius of 2 meters and a height of 5 meters. What is its volume?
Solution:
$r = 2 m$, $h = 5 m$
$V = \pi r^2 h = \pi \times (2)^2 \times 5 = \pi \times 4 \times 5 = 20\pi$
$V \approx 20 \times 3.14159 = 62.83 m^3$ (cubic meters)
Surface Area of a Cylinder
The total surface area of a cylinder is the sum of the areas of its two circular bases and its lateral surface. The lateral surface, when unrolled, forms a rectangle. The width of this rectangle is the height of the cylinder, and its length is the circumference of the base ($2\pi r$).
Where:
$A_{total}$ = Total Surface Area
$2\pi r^2$ = Area of the two circular bases
$2\pi r h$ = Area of the lateral surface (the rectangle)
Example: Let's find the surface area of the same water tank (radius = 2 m, height = 5 m).
Solution:
$A_{total} = 2\pi r^2 + 2\pi r h = (2 \times \pi \times (2)^2) + (2 \times \pi \times 2 \times 5)$
$A_{total} = (2 \times \pi \times 4) + (2 \times \pi \times 2 \times 5) = 8\pi + 20\pi = 28\pi$
$A_{total} \approx 28 \times 3.14159 = 87.96 m^2$ (square meters)
Types of Cylinders
While the right circular cylinder is the most familiar, cylinders can be categorized based on the shape of their base and the alignment of their axis. The table below summarizes the main types.
| Type of Cylinder | Description | Visual Example |
|---|---|---|
| Right Circular Cylinder | The axis is perpendicular to the circular bases. This is the standard cylinder. | A soda can, a coin roll. |
| Oblique Circular Cylinder | The axis is not perpendicular to the circular bases. The bases are still parallel and congruent, but the sides are slanted. | A slanted tower, a tilted glass. |
| Elliptical Cylinder | The bases are ellipses[2] instead of circles. It can also be right or oblique. | A racetrack, an oval pipe. |
Cylinders in Action: Real-World Applications
Cylinders are not just mathematical concepts; they are everywhere in our daily lives and in various industries. Their shape provides a unique combination of strength, efficiency, and ease of manufacturing.
| Application Field | How Cylinders Are Used | Example |
|---|---|---|
| Packaging & Containers | The cylindrical shape is strong, easy to hold, and efficient to stack and ship. It minimizes material used for a given volume. | Cans for food and drinks, jars, water bottles, oxygen tanks. |
| Engineering & Machinery | Hydraulic and pneumatic cylinders use the principle of a piston moving inside a cylindrical chamber to create linear motion and force. | Car engines, construction equipment (e.g., excavators), factory machines. |
| Architecture & Structures | Cylindrical pillars and columns provide excellent support and distribute weight evenly. They are also aesthetically pleasing. | Columns in buildings, water towers, silos for storing grain, chimneys. |
| Transportation | The shape is aerodynamic and strong, making it ideal for various parts of vehicles. | Rockets, airplane fuselages, train carriages, car axles. |
Practical Problem: A company needs to design a cylindrical container to hold 500 mL of juice. If the height of the container is fixed at 15 cm, what should the radius of the base be? (Note: 1 mL = 1 cm^3)
Solution:
Volume $V = 500 cm^3$, Height $h = 15 cm$.
Using the volume formula: $V = \pi r^2 h$
$500 = \pi \times r^2 \times 15$
$r^2 = 500 / (15\pi)$
$r^2 \approx 500 / (15 \times 3.1416) \approx 500 / 47.124 \approx 10.61$
$r \approx \sqrt{10.61} \approx 3.26 cm$
So, the radius of the container should be approximately 3.26 cm.
Common Mistakes and Important Questions
A: No. A prism has polygonal bases (like a triangle, rectangle, etc.) and flat rectangular faces. A cylinder has circular bases and a curved surface. However, a cylinder is sometimes considered a "circular prism" in an informal sense because it has a constant cross-section.
A: The most common mistake is forgetting one of the components. Students often calculate the lateral area ($2\pi r h$) but forget to add the areas of the two circular bases ($2\pi r^2$). Always remember that total surface area includes all surfaces.
A: The volume changes with the square of the radius. If you double the radius, the volume increases by a factor of four ($2^2 = 4$). For example, if you double the radius of a can, it can hold four times as much liquid, even if the height stays the same.
The cylinder is a simple yet profoundly important three-dimensional shape. From its clear geometric definition to its practical formulas for volume and surface area, it serves as a cornerstone of spatial understanding. Its presence in our everyday world—from the containers we use to the engines that power our vehicles—highlights the perfect marriage of mathematical theory and real-world utility. Mastering the concepts related to cylinders not only builds a strong foundation in geometry but also fosters an appreciation for the design and efficiency of the objects that surround us.
Footnote
[1] Right Circular Cylinder: A cylinder whose axis is perpendicular (at a right angle) to its circular bases.
[2] Ellipse: A closed curve on a plane that surrounds two focal points, such that the sum of the distances to the two focal points is constant for every point on the curve. It is an oval shape.
