Back-to-Back Stem-and-Leaf Diagrams: A Visual Comparison Tool
Understanding the Core Components

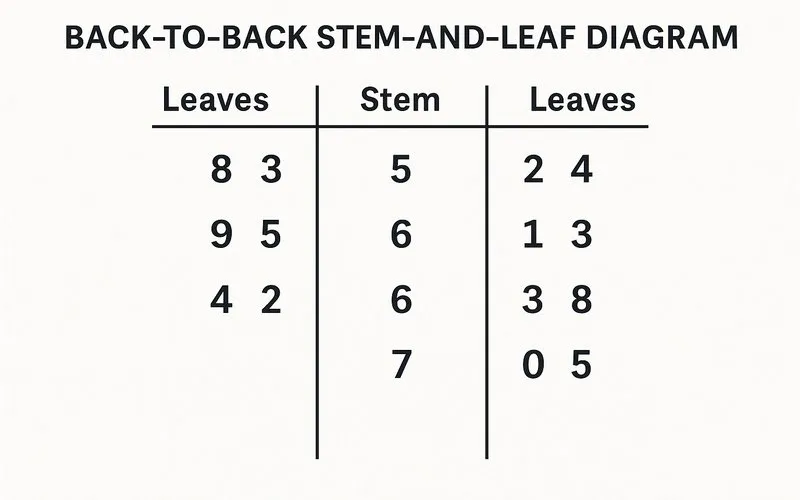

Before building a back-to-back diagram, it's crucial to understand its parts. A standard stem-and-leaf plot, also called a stemplot, displays data by splitting each number into a stem and a leaf. The stem consists of all but the last digit of the number, and the leaf is the final digit. For example, the number 78 would have a stem of 7 and a leaf of 8. In a back-to-back version, two data sets share the same central stem column. The leaves for one data set are listed to the right of the stem, and the leaves for the other data set are listed to the left, creating a mirror image that is easy to compare.
Step-by-Step Construction Guide
Creating a back-to-back stem-and-leaf diagram is a systematic process. Let's say we have test scores out of 100 for two science classes, Class A and Class B.
Step 1: Gather and Order the Data
First, collect the two data sets. It is helpful to sort each set in ascending order.
Step 2: Identify the Stems
Determine the range of the data to decide on the stems. The stems must cover the full range of both data sets. If our scores range from 55 to 98, our stems will be 5, 6, 7, 8, 9. Write these stems in a vertical column in the center of your page.
Step 3: Plot the Leaves
For each number in the first data set (e.g., Class A), write its leaf to the left of the stem, ordered from the stem outward. For each number in the second data set (e.g., Class B), write its leaf to the right of the stem, also ordered from the stem outward.
Step 4: Add Titles and a Key
Clearly label which side represents which data set. Always include a key so anyone reading the diagram knows how to reconstruct the original data.
A Concrete Example: Comparing Test Scores
Let's apply the steps to real data. Imagine we have the following final exam scores for two sections of a biology class:
- Class A Scores: 78, 85, 92, 65, 72, 89, 55, 91, 84, 77, 69, 95, 88
- Class B Scores: 82, 90, 76, 68, 74, 87, 98, 81, 63, 79, 85, 72, 90
After sorting both lists, we can construct our diagram. The central stem will represent the "tens" digit, and the leaves will be the "ones" digit.
| Biology Exam Scores: Class A vs. Class B | ||
|---|---|---|
| Class A (Leaves) | Stem | Class B (Leaves) |
| 5 | 5 | |
| 9 5 | 6 | 3 8 |
| 9 8 7 2 | 7 | 2 4 6 9 |
| 9 8 5 4 | 8 | 1 2 5 7 |
| 5 2 1 | 9 | 0 0 8 |
Key: 8 | 2 = 82 points.
From this diagram, we can instantly make several observations. Class B has more scores in the 90s, while Class A has a score in the 50s, which is the lowest in either class. The bulk of Class A's scores are in the 70s and 80s, whereas Class B's scores are more evenly distributed from the 60s through the 90s. This visual analysis would be much harder to do by just looking at the raw lists of numbers.
Interpreting the Story the Data Tells
A back-to-back stem-and-leaf diagram is more than just a data organizer; it's a storytelling tool. By looking at the shape and spread of the leaves on each side, you can compare the central tendency (where the data clusters), the spread (how varied the data is), and the presence of any outliers (values that are far from the rest).
In our test score example, we can see that Class B's performance was slightly higher on average, with two scores of 90 and one of 98. Class A, while having several high scores, also had the single lowest score, pulling its overall average down. The diagram also allows us to see the mode, or the most frequent score range. For Class A, the 70s stem has four leaves, making it a dense cluster. For Class B, the 70s and 80s stems are equally dense.
Common Mistakes and Important Questions
Q: What is the most common mistake when making a back-to-back stem-and-leaf diagram?
The most common error is forgetting to order the leaves. The leaves on each side of the stem must be arranged in ascending order from the stem outward. If the leaves are out of order, the diagram loses its ability to quickly show the distribution and shape of the data. Another frequent mistake is omitting the key, which makes the diagram impossible to interpret correctly.
Q: How do you handle data with more than two digits, like 145 or 1205?
For larger numbers, you adjust what constitutes the stem and the leaf. For numbers like 142, 145, and 138, you could define the stem as the "hundreds and tens" digits (14) and the leaf as the "ones" digit. So, 142 would be 14 | 2. The key must clearly state this, for example: 14 | 2 = 142. The same logic applies to even larger numbers.
Q: What are the main advantages of using this type of diagram?
The main advantages are that it preserves the original data, provides a visual representation for easy comparison, and shows the distribution, shape, and range of two data sets simultaneously. It is a simple yet powerful tool that does not require complex software or calculations to create, making it highly accessible for students.
Footnote
1 Stemplot: Another name for a stem-and-leaf diagram or plot. It is a data display that splits each data value into a "stem" and a "leaf" to show the frequency and distribution of values.
2 Central Tendency: A descriptive summary of a dataset through a single value that reflects the center of the data distribution. The most common measures are the mean (average), median (middle value), and mode (most frequent value).
3 Outliers: Data points that differ significantly from other observations. They may be due to variability in the measurement or may indicate experimental error.
