Motion Sensor: A Comprehensive Guide
How Motion Sensors See the World
At its core, a motion sensor is a device that measures the distance between itself and an object. It does this by sending out a signal and then listening for its return. The two most common types of signals used in educational settings are ultrasound and infrared light.
Ultrasound vs. Infrared: A Technical Comparison
While both types of sensors detect motion and position, they operate on completely different physical principles. The table below provides a clear comparison.
| Feature | Ultrasonic Sensor | Passive Infrared (PIR) Sensor |
|---|---|---|
| What it Detects | Distance to any solid object | Heat radiation (infrared) from warm objects |
| How it Works | Emits high-frequency sound waves (>20 kHz) and measures the echo time. | Detects changes in infrared radiation levels in its field of view. |
| Primary Use in Motion Sensing | Measuring precise distance and plotting graphs. | Detecting presence or movement of people/animals (e.g., security lights). |
| Key Formula | $d = (v \times t) / 2$ where $v$ is the speed of sound (~343 m/s). | No direct distance calculation; triggers on a significant change in heat signature. |
| Example | A bat navigating in the dark. | A motion-activated security camera. |
The Mathematics of Motion: From Data to Graphs

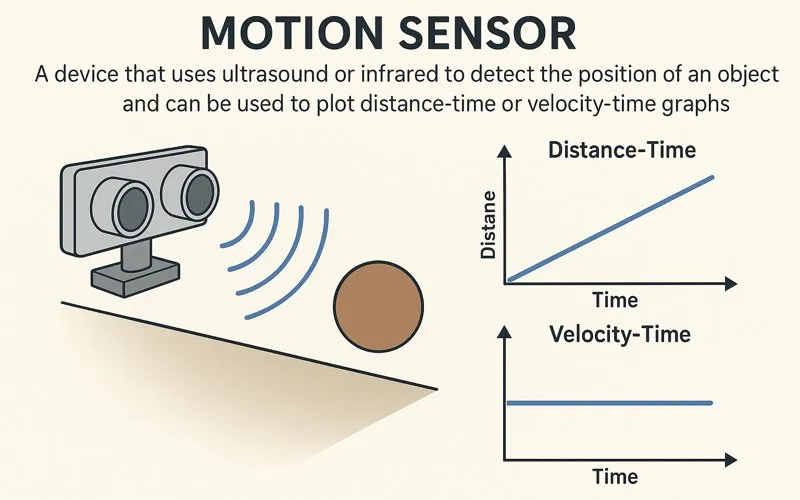

Ultrasonic motion sensors are particularly useful for plotting graphs because they provide continuous, numerical distance data. Let's break down the process.
Step 1: Measuring Distance
The sensor emits an ultrasonic pulse and starts a timer. When the pulse hits an object and returns as an echo, the sensor stops the timer. This gives us the time ($t$) it took for the sound to make a round trip. Since we know the speed of sound ($v$), we can calculate the distance ($d$) to the object. The formula is $d = (v \times t) / 2$. We divide by 2 because the time measured is for the sound to go to the object and come back.
Step 2: Plotting a Distance-Time Graph
A distance-time graph shows how an object's position changes over time. The sensor takes a distance measurement at regular intervals (e.g., every 0.1 s) and plots each data point on a graph where the x-axis is Time and the y-axis is Distance.
- A horizontal line means the object is stationary (distance isn't changing).
- A straight, sloping line means the object is moving at a constant speed. A steeper slope means a higher speed.
- A curved line indicates that the speed is changing (acceleration or deceleration).
Step 3: Deriving a Velocity-Time Graph
Velocity is the rate of change of distance. It can be calculated from the distance-time graph. The slope of the distance-time graph at any point gives the velocity at that moment.
- For a straight-line distance-time graph, the slope is constant, so the velocity-time graph will be a horizontal line.
- If the distance-time graph is a curve, the velocity is changing. The velocity-time graph will show a slope. The slope of the velocity-time graph gives the acceleration.
Visualizing Motion: A Practical Lab Session
Imagine you are in a physics lab using an ultrasonic motion sensor connected to a computer. You are going to perform three different motions in front of the sensor and observe the graphs generated in real-time.
Experiment 1: The Stationary Object
You place a cardboard box 1.5 m from the sensor and leave it there. The sensor records a distance of 1.5 m for the entire 10 s of the experiment. The distance-time graph is a flat, horizontal line. Since the distance isn't changing, the velocity is zero. The velocity-time graph is also a horizontal line, but it lies along the time axis at $v = 0$.
Experiment 2: Constant Speed Walk
You now walk away from the sensor at a steady, constant pace. The distance-time graph will be a straight line with a positive, constant slope. Let's say you move from 1 m to 4 m in 3 s. The slope (velocity) is $(4 - 1) / (3 - 0) = 3 / 3 = 1$ m/s. The velocity-time graph will be a horizontal line at $v = 1$ m/s.
Experiment 3: The Rolling Ball
You let a ball roll down a ramp in front of the sensor. As the ball accelerates, it covers more distance each second. The distance-time graph will be a curve that gets steeper over time. The velocity-time graph, derived from this curve, will be a straight line with a positive slope, indicating constant acceleration.
Common Mistakes and Important Questions
Q: Why does my distance-time graph have a negative slope when I walk towards the sensor?
Q: Can a motion sensor detect motion through a glass window?
Q: What is the difference between speed and velocity on these graphs?
Motion sensors are powerful tools that bridge the gap between abstract physical concepts and tangible, real-world data. By harnessing ultrasound and infrared technology, they allow us to "see" motion in the form of numerical data. This data, when plotted on distance-time and velocity-time graphs, provides a visual story of an object's journey, making it easier to understand fundamental principles like constant speed, acceleration, and direction. From a simple walk across a room to the complex roll of a ball down a ramp, motion sensors turn physical movement into a learning experience, demystifying the laws of motion for students of all levels.
Footnote
1 Ultrasound: Sound waves with a frequency higher than the upper limit of human hearing, typically above 20,000 Hertz (20 kHz).
2 Infrared (IR): A type of electromagnetic radiation with wavelengths longer than visible light, but shorter than radio waves. It is often perceived as heat.
3 PIR (Passive Infrared): A common type of motion sensor that detects changes in infrared radiation emitted by objects in its field of view, without emitting any energy itself.
4 Kinematics: The branch of mechanics that describes the motion of points, objects, and systems of bodies without considering the forces that cause the motion.
5 Acceleration: The rate of change of velocity with respect to time. It is a vector quantity.
