Vector Quantity: The Language of Direction

Scalars vs. Vectors: The Fundamental Difference

In physics, we measure many different things. These measurements are called physical quantities. We can sort all physical quantities into two big families: scalars and vectors.

A scalar quantity is completely described by its magnitude alone. Magnitude means the size or the number value. For example, if you have a temperature of 37 degrees Celsius, that number tells you everything. There is no direction associated with temperature. Other examples of scalar quantities include mass, time, speed, and volume.

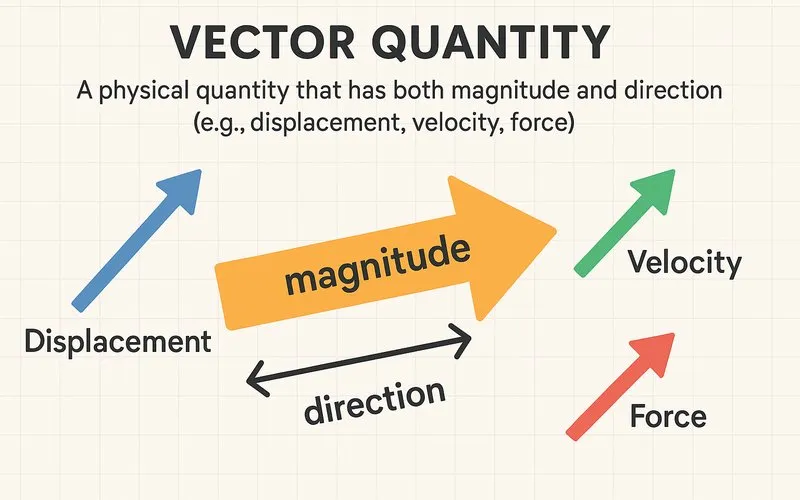

A vector quantity, however, is a physical quantity that is fully described by both its magnitude and its direction. Think about wind. Saying "the wind is blowing at 30 km/h" (which is speed, a scalar) is incomplete information for a sailor. They need to know the direction it's coming from, like "the wind is blowing from the north at 30 km/h." This complete description—magnitude and direction—is velocity, a vector.

Representing Vectors: Arrows and Notation

Since vectors have direction, we can't just represent them with a number. We use visual and symbolic methods.

Graphical Representation: A vector is drawn as an arrow. The length of the arrow represents the magnitude of the vector (drawn to scale). The direction of the arrow shows the direction of the vector, indicated by the arrowhead. For example, a force of 20 Newtons to the right would be a longer arrow than a force of 10 Newtons to the right.

Symbolic Representation: In textbooks, vectors are often written in boldface (e.g., v for velocity) or with a small arrow on top (e.g., $\vec{v}$). The magnitude of a vector is written as the absolute value of the symbol, like $|\vec{v}|$ or simply v, and it is always a positive number or zero.

Key Vector Operations: Addition and Subtraction

Adding and subtracting vectors is different from adding and subtracting regular numbers because you must account for direction. The result of adding two or more vectors is called the resultant vector.

Vector Addition: The most common method is the head-to-tail method. To add vectors $\vec{A}$ and $\vec{B}$:

1. Draw vector $\vec{A}$ to scale.
2. Place the tail of vector $\vec{B}$ at the head of vector $\vec{A}$.
3. The resultant vector $\vec{R} = \vec{A} + \vec{B}$ is the vector drawn from the tail of $\vec{A}$ to the head of $\vec{B}$.

Example: If you walk 4 meters East ($\vec{A}$) and then 3 meters North ($\vec{B}$), your resultant displacement ($\vec{R}$) is 5 meters Northeast. The magnitude is found using the Pythagorean theorem: $|\vec{R}| = \sqrt{(4)^2 + (3)^2} = \sqrt{25} = 5$ m.

Vector Subtraction: Subtracting a vector is the same as adding its negative. The negative of a vector is a vector with the same magnitude but opposite direction. So, $\vec{A} - \vec{B} = \vec{A} + (-\vec{B})$.

Everyday Vector and Scalar Pairs

It's helpful to look at common pairs of quantities where one is a vector and the other is a scalar. This highlights the critical role of direction.

Vectors in Action: Real-World Applications

Vectors are not just abstract ideas; they are used every day in science, engineering, and technology.

Navigation and GPS: When you use a map or a GPS^[1] device, it uses vectors to guide you. Your position, your destination, and every turn are all vectors (displacements). The GPS calculates the resultant vector from your current location to your desired endpoint.

Engineering and Architecture: Engineers use vectors to analyze forces acting on structures like bridges and buildings. They must ensure that all the force vectors (from weight, wind, etc.) add up in a way that the structure remains stable. If the resultant force vector is not zero, the structure could move or collapse.

Sports: In sports like baseball or football, the path of a ball is determined by its velocity vector. The initial velocity and the angle at which it is thrown or hit (its direction) are both vector components that decide the ball's trajectory. Air resistance provides another force vector that changes the ball's path.

Aviation: Pilots must constantly deal with vectors. An airplane's velocity vector is combined with the wind's velocity vector to determine the plane's actual path over the ground, a concept known as "course made good."

Common Mistakes and Important Questions

Footnote

^[1] GPS: Global Positioning System. A satellite-based navigation system that provides location and time information anywhere on Earth.
