Graphical Analysis: Unlocking the Secrets of the Gradient
What is a Gradient?
In everyday language, a gradient is just a slope. Think about a hill. A steep hill has a large gradient, while a gentle slope has a small gradient. In mathematics, and especially when looking at graphs, the gradient (often called the slope) is a number that tells us two things:
- Steepness: How steep the line is.
- Direction: Whether the line is going uphill or downhill.
When we look at a graph, the gradient describes how quickly the value on the vertical axis (the $y$-axis) changes as the value on the horizontal axis (the $x$-axis) changes. This is also known as the rate of change.
The Gradient Formula:

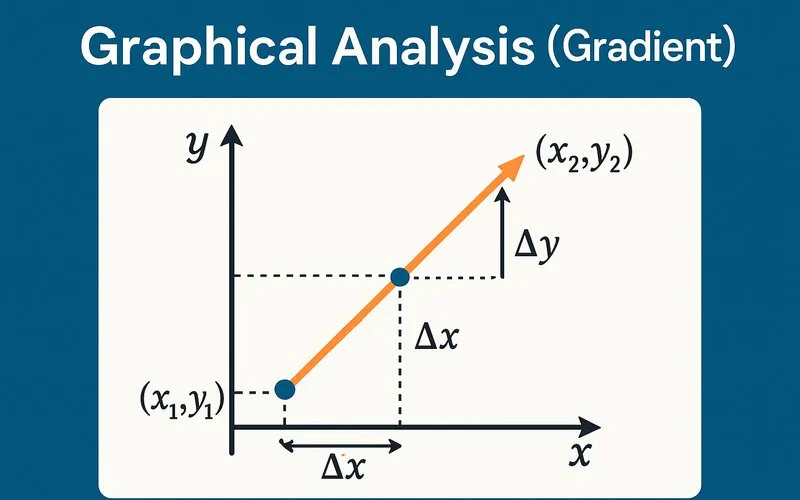

For any two points on a straight line, $(x_1, y_1)$ and $(x_2, y_2)$, the gradient $m$ is calculated as:
Calculating the Gradient Step-by-Step
Let's break down the formula with a simple example. Imagine a line that goes through the points $(1, 2)$ and $(4, 5)$.
- Identify the points: Let $(x_1, y_1) = (1, 2)$ and $(x_2, y_2) = (4, 5)$.
- Calculate the change in $y$ (the rise): $y_2 - y_1 = 5 - 2 = 3$.
- Calculate the change in $x$ (the run): $x_2 - x_1 = 4 - 1 = 3$.
- Divide the rise by the run: $m = \frac{3}{3} = 1$.
The gradient of this line is $1$. This means for every $1$ unit we move to the right (along the $x$-axis), the line goes up by $1$ unit (along the $y$-axis). It's a gentle, upward slope.
Interpreting Different Types of Gradients
The value and sign (positive or negative) of the gradient tell a story about the relationship between the two variables on the graph.
| Gradient Value | Description | What it Looks Like |
|---|---|---|
| $m > 0$ (Positive) | The line slopes upwards from left to right. As $x$ increases, $y$ also increases. | Uphill |
| $m < 0$ (Negative) | The line slopes downwards from left to right. As $x$ increases, $y$ decreases. | Downhill |
| $m = 0$ (Zero) | The line is perfectly horizontal. There is no change in $y$ as $x$ changes. | Flat |
| $m$ is undefined | The line is perfectly vertical. There is no change in $x$, so you cannot divide by zero in the formula. | A cliff face |
Gradients in Motion: The Speed Example
One of the best ways to understand the gradient is through the concept of speed. Imagine a graph where the horizontal axis represents Time (in hours) and the vertical axis represents Distance Traveled (in miles).
The gradient of a line on this graph is $\frac{\text{Change in Distance}}{\text{Change in Time}}$. But that's exactly the formula for speed!
- A steep positive gradient means a high speed (covering a lot of distance in a short time).
- A shallow positive gradient means a low speed (covering a little distance over a long time).
- A zero gradient ($m=0$) means the object is stationary (no change in distance over time).
- A negative gradient would mean moving backwards towards the starting point.
Example: A car travels 60 miles in the first hour and 120 miles in the second hour. The points on our distance-time graph would be $(1, 60)$ and $(2, 120)$.
Gradient (Speed) = $\frac{120 - 60}{2 - 1} = \frac{60}{1} = 60$ miles per hour.
The gradient of $60$ tells us the car's speed.
Beyond Straight Lines: Curves and Steepness
What if the graph is a curve? A curve doesn't have a single gradient; its steepness changes at every point. To find the gradient at a specific point on a curve, we can draw a straight line that just touches the curve at that point. This line is called a tangent[1].
The gradient of this tangent line is equal to the gradient of the curve at that exact point of contact. This is a more advanced concept, but it's incredibly powerful. For example, on a graph of a ball's height over time, the gradient of the curve at any moment tells you the ball's instantaneous speed at that moment.
Common Mistakes and Important Questions
Q: I always mix up which point to use first in the formula. Does it matter?
• Option 1: $(4, 5)$ first: $\frac{5 - 2}{4 - 1} = \frac{3}{3} = 1$.
• Option 2: $(1, 2)$ first: $\frac{2 - 5}{1 - 4} = \frac{-3}{-3} = 1$.
Both give the same correct answer.
Q: What's the difference between a large negative gradient and a small negative gradient?
Q: How is the gradient used in real-life jobs?
• Engineers use it to design safe and efficient roads and ramps.
• Economists use it on supply and demand graphs to understand how quickly prices change.
• Meteorologists use it on weather maps (like pressure gradients) to predict wind speed and storms.
• Doctors use it on charts tracking a patient's health over time to see the rate of improvement or decline.
The gradient is a simple yet powerful idea that connects algebra to the visual world of graphs. It translates the abstract concept of "rate of change" into a clear, measurable number that describes steepness and direction. From calculating the speed of a car to understanding trends in science and business, mastering graphical analysis and the gradient provides a fundamental tool for interpreting the world around us. Remember the core formula, practice with different points and lines, and you'll be able to unlock the stories that graphs are trying to tell.
Footnote
[1] Tangent: A straight line that touches a curve at a single point without crossing it at that immediate region. The gradient of the tangent line equals the gradient of the curve at that point.
