Component of a Vector: The Effect in a Particular Direction
What is a Vector and Why Break It Down?
In the world of physics and mathematics, some quantities are described by just a number. For example, the mass of an object is 5 kg and its temperature is 20 °C. These are called scalars. However, other quantities need more information. To describe the movement of a car, it's not enough to say it's moving at 60 km/h; you need to know its direction, for instance, 60 km/h north. Quantities that have both magnitude (size) and direction are called vectors. Common examples include force, velocity, and displacement.
But why do we need to break vectors down? Imagine you are pushing a shopping cart diagonally forward and to the right. Your push has two main effects: it moves the cart forward, and it also moves it to the right. The single diagonal push is equivalent to two separate, simultaneous pushes—one purely forward and one purely to the right. These two imaginary pushes are the components of the original vector. By breaking a vector into its components, we can analyze its effect in each independent direction, which often makes complex problems much simpler to solve.
Finding Components Using a Coordinate System
The most common way to break down a vector is by using a coordinate system, like the familiar x-y plane. The process of finding these components is called resolving the vector.

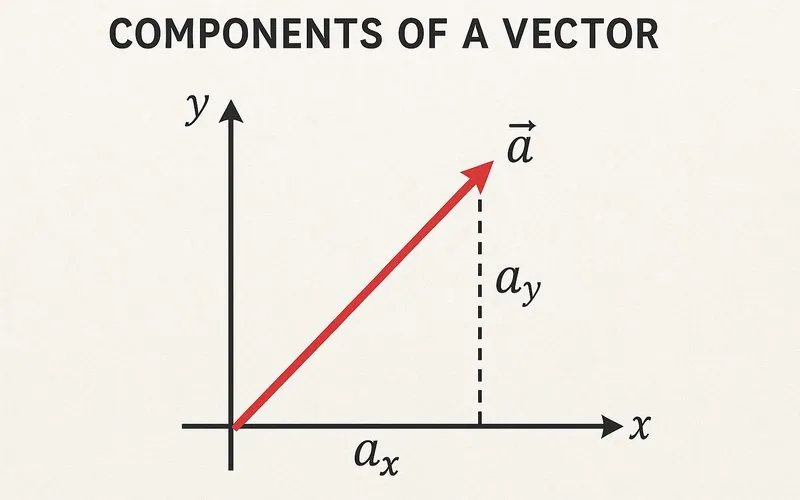

Consider a vector A with a magnitude A and making an angle $\theta$ (theta) with the positive x-axis. The components of this vector are found using trigonometry.
The x-component ($A_x$) tells us the effect of the vector along the x-axis:
$A_x = A \cos(\theta)$
The y-component ($A_y$) tells us the effect of the vector along the y-axis:
$A_y = A \sin(\theta)$
A helpful way to remember this is with the word "SOH-CAH-TOA" from trigonometry. In the right triangle formed by the vector and its components:
- Cosine = Adjacent / Hypotenuse → $\cos(\theta) = A_x / A$
- Sine = Opposite / Hypotenuse → $\sin(\theta) = A_y / A$
Rearranging these equations gives us the component formulas above.
A Practical Example: The Plane in the Wind
Let's apply this to a real-world scenario. Suppose an airplane is flying with a velocity of 200 m/s at an angle of 30° above the horizontal (east). We want to know how fast it is moving eastward (its x-component) and how fast it is climbing (its y-component).
- Magnitude, A = 200 m/s
- Angle, $\theta = 30°$
Using our formulas:
- Eastward (x) component: $A_x = 200 \times \cos(30°) = 200 \times 0.866 = 173.2$ m/s
- Upward (y) component: $A_y = 200 \times \sin(30°) = 200 \times 0.5 = 100$ m/s
This tells us the plane is moving east at 173.2 m/s and simultaneously climbing at 100 m/s. Air traffic controllers might use the x-component to calculate arrival times, while pilots monitor the y-component during ascent.
Working Backwards: Finding the Whole from its Parts
What if you know the components of a vector and need to find its overall magnitude and direction? This is the reverse process. If you have the x and y components, $A_x$ and $A_y$, you can find the magnitude A using the Pythagorean theorem because the components are perpendicular.
Magnitude: $A = \sqrt{A_x^2 + A_y^2}$
Direction (angle $\theta$ with the x-axis): $\theta = \tan^{-1}(A_y / A_x)$
For example, suppose a robot pushes an object with a force that has an x-component of 6 N and a y-component of 8 N. The total force applied is:
- Magnitude: $F = \sqrt{6^2 + 8^2} = \sqrt{36 + 64} = \sqrt{100} = 10$ N
- Direction: $\theta = \tan^{-1}(8 / 6) = \tan^{-1}(1.333) \approx 53.1°$ above the positive x-axis.
Component Analysis in Force and Motion
The true power of vector components is revealed when analyzing forces and motion. Newton's Second Law, $\vec{F} = m\vec{a}$, is a vector equation. This means it holds true for each independent direction.
Imagine a block sliding down a frictionless inclined plane. The force of gravity pulls straight down, but its effect parallel to the ramp causes the block to accelerate, while its effect perpendicular to the ramp is balanced by the normal force from the surface. By resolving the weight vector into components parallel and perpendicular to the ramp, we can easily calculate the block's acceleration and the force the ramp exerts on it.
| Scenario | Useful Component Directions | Application |
|---|---|---|
| Projectile Motion (e.g., a cannonball) | Horizontal (x) and Vertical (y) | The horizontal velocity remains constant (ignoring air resistance), while the vertical velocity changes due to gravity. Analyzing these components separately allows us to calculate range and time of flight. |
| Tug-of-War | Left-Right (x-axis) | The net force is the sum of the components from all participants. The team with the larger total force component in their direction wins. |
| Sailing a Boat | Into the Wind and Perpendicular to it | Sailors adjust their sails to maximize the component of the wind's force that propels the boat forward, even if the wind isn't directly from behind. |
Common Mistakes and Important Questions
Q: Can a vector component be larger than the vector itself?
No. The components are the legs of a right triangle, and the vector itself is the hypotenuse. The hypotenuse is always the longest side of a right triangle. For example, if a vector has a magnitude of 10, neither its x-component nor its y-component can be greater than 10.
Q: What does a negative component mean?
A negative component simply indicates direction. In a standard coordinate system, a negative x-component means the vector's effect is in the negative x-direction (e.g., left or west). A negative y-component means the effect is in the negative y-direction (e.g., down or south). It does not mean the component is "bad" or smaller than zero in a magnitude sense; it's purely directional.
Q: I always mix up when to use sine and when to use cosine. Any tips?
This is a very common issue. Always relate the angle to the positive x-axis. The component adjacent to the angle is the one with cosine. The component opposite to the angle is the one with sine. If the angle is given with respect to the y-axis, the roles of sine and cosine swap. Drawing a clear diagram is the best way to avoid confusion.
Understanding vector components is like having a superpower for solving physics and engineering problems. By breaking down a single, complex vector into its directional parts, we can analyze situations one direction at a time, applying simpler rules like the Pythagorean theorem and trigonometry. From calculating the precise path of a projectile to determining the net force on an object, the concept of components is a fundamental and indispensable tool. Mastering this skill opens the door to a deeper understanding of how things move and interact in our multi-directional world.
Footnote
1 Scalar: A physical quantity that is completely described by its magnitude (a single numerical value and unit). Examples include mass, temperature, and time.
2 Vector: A physical quantity that possesses both magnitude and direction. Examples include displacement, velocity, and force.
3 Vector Resolution: The process of breaking down a single vector into two or more components, usually along the perpendicular axes of a coordinate system.
4 Normal Force: The force exerted by a surface that supports the weight of an object resting on it. It acts perpendicular (normal) to the surface.
