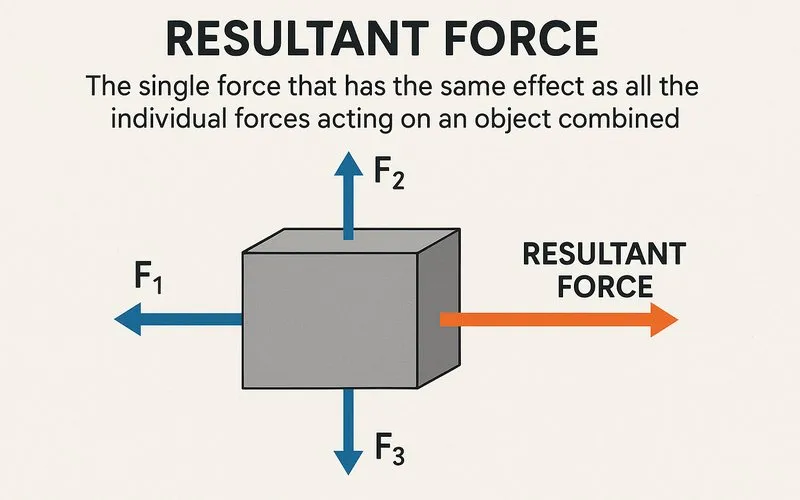

Resultant Force: The Single Mover of Objects
Forces as Vectors: Direction Matters
To understand resultant force, you must first understand that forces are vectors. This means they have both a magnitude (size or strength) and a direction. For example, a 5 N force to the right is different from a 5 N force to the left. Because of this directional property, we cannot simply add force magnitudes like regular numbers. We have to consider their directions.
The resultant force ($ F_{resultant} $) is the vector sum of all individual forces ($ F_1, F_2, F_3, ... $).
$ F_{resultant} = F_1 + F_2 + F_3 + ... $
Remember, this is vector addition, not simple arithmetic.
Calculating the Resultant Force
The method for finding the resultant force depends on the directions in which the forces are acting. The main scenarios are when forces act along the same line and when they act at an angle to each other.
Forces Acting in a Straight Line
This is the simplest case. When all forces act along the same line (e.g., left-right or up-down), you can assign positive and negative signs to opposite directions.
Example: Imagine a tug-of-war. Team A pulls to the right with a force of 500 N. Team B pulls to the left with a force of 450 N. To find the resultant force, we assign positive to the right and negative to the left.
- Force from Team A (right): $ +500 N $
- Force from Team B (left): $ -450 N $
- Resultant Force: $ (+500 N) + (-450 N) = +50 N $
A resultant force of +50 N means the rope experiences a net force of 50 N to the right, so it will accelerate in that direction.
| Scenario | Forces | Calculation | Resultant Force |
|---|---|---|---|
| Balanced Forces | $ 10 N $ (right) and $ 10 N $ (left) | $ (+10) + (-10) $ | $ 0 N $ (Object remains at rest or constant velocity) |
| Unbalanced Forces (Same Direction) | $ 7 N $ (right) and $ 5 N $ (right) | $ (+7) + (+5) $ | $ +12 N $ (right) |
| Unbalanced Forces (Opposite Directions) | $ 15 N $ (right) and $ 9 N $ (left) | $ (+15) + (-9) $ | $ +6 N $ (right) |
Forces Acting at an Angle: The Parallelogram Method
When two forces act at a point but are not in the same straight line, they act at an angle. To find the resultant, we use the parallelogram method. Imagine the two forces as the adjacent sides of a parallelogram. The resultant force is the diagonal of the parallelogram that starts from the point where the forces are applied.
Example: Suppose a boat is being pulled by two ropes. One rope pulls with a force $ F_1 = 40 N $ due East. The other pulls with a force $ F_2 = 30 N $ due North. These forces are at a 90° angle.
To find the magnitude of the resultant force ($ F_r $), we use the Pythagorean theorem because the forces are perpendicular.
$ F_r = \sqrt{F_1^2 + F_2^2} = \sqrt{(40)^2 + (30)^2} = \sqrt{1600 + 900} = \sqrt{2500} = 50 N $
To find the direction (angle $ \theta $ from the East direction), we use trigonometry.
$ \tan(\theta) = \frac{opposite}{adjacent} = \frac{F_2}{F_1} = \frac{30}{40} = 0.75 $
$ \theta = \tan^{-1}(0.75) \approx 37^{\circ} $
So, the resultant force on the boat is 50 N at 37° North of East. This is the single force that would have the same effect on the boat's motion as the two individual ropes pulling together.
Resultant Force in Action: From Playgrounds to Orbits
The concept of resultant force is not just for solving physics problems; it explains motion all around us.
Playing Soccer: When you kick a soccer ball, your foot applies a force. The magnitude and direction of that force determine the ball's initial speed and trajectory—this is the resultant force from your kick. As the ball flies, other forces like gravity and air resistance act on it, constantly changing the resultant force and thus the ball's path.
An Airplane in Flight: An airplane's motion is governed by four main forces: thrust, drag, lift, and weight (gravity). The resultant force determines whether the plane will accelerate, climb, descend, or fly at a constant speed and altitude.
- If thrust is greater than drag, the resultant force is forward, and the plane accelerates.
- If lift is greater than weight, the resultant force is upward, and the plane climbs.
Spacecraft Docking: When a spacecraft needs to dock with the International Space Station (ISS)[1], its thrusters fire in precise bursts. Each thruster provides a force in a specific direction. The flight computers constantly calculate the resultant force from all active thrusters to ensure the spacecraft moves on the correct path for a safe, gentle docking.
Common Mistakes and Important Questions
Q: If the resultant force is zero, does that mean no forces are acting on the object?
No, not at all! A resultant force of zero simply means that all the forces acting on the object are balanced. For example, a book lying on a table has two forces acting on it: gravity (pulling it down) and the normal force[2] from the table (pushing it up). These two forces are equal in magnitude and opposite in direction, so they cancel each other out. The resultant force is zero, and the book remains at rest.
Q: Is the resultant force always in the direction of the largest individual force?
While this is often true when forces act in a straight line, it is not always the case when forces act at an angle. The resultant force's direction is a compromise between the directions of all the individual forces. In the boat example above, the largest force was 40 N East, but the resultant was not due East; it was 37° North of East because of the influence of the 30 N North force.
Q: What is the difference between resultant force and net force?
There is no difference! The terms "resultant force" and "net force" are used interchangeably in physics. They both refer to the single, overall force that results from combining all forces acting on an object.
The concept of resultant force is a powerful tool that simplifies the complex world of forces. By reducing multiple pushes and pulls to a single net force, we can easily predict and explain an object's motion. Whether you are playing a sport, riding in a car, or watching a rocket launch, the principles of vector addition and the resultant force are silently at work, governing the motion of everything in the universe. Mastering this foundational idea is your first step toward understanding the elegant laws of physics.
Footnote
[1] ISS: International Space Station. A large spacecraft in orbit around Earth, serving as a space environment research laboratory.
[2] Normal Force: The support force exerted upon an object that is in contact with another stable object. It is always perpendicular (normal) to the surface of contact.
