Terminal Velocity
The Forces at Play in a Fall
When you drop an object, it doesn't just fall; it interacts with the air around it. Two main forces dictate its motion:
- Gravity (Weight): This is the force that pulls the object downward towards the Earth. It is calculated as the object's mass ($ m $) multiplied by the acceleration due to gravity ($ g $), which is approximately $ 9.8 m/s^2 $ near the Earth's surface. The force is $ F_g = m \times g $.
- Air Resistance (Drag): This is the upward force exerted by the air (or any fluid) the object is moving through. It pushes against the object, slowing it down. Unlike gravity, air resistance is not constant; it increases as the object's speed increases.

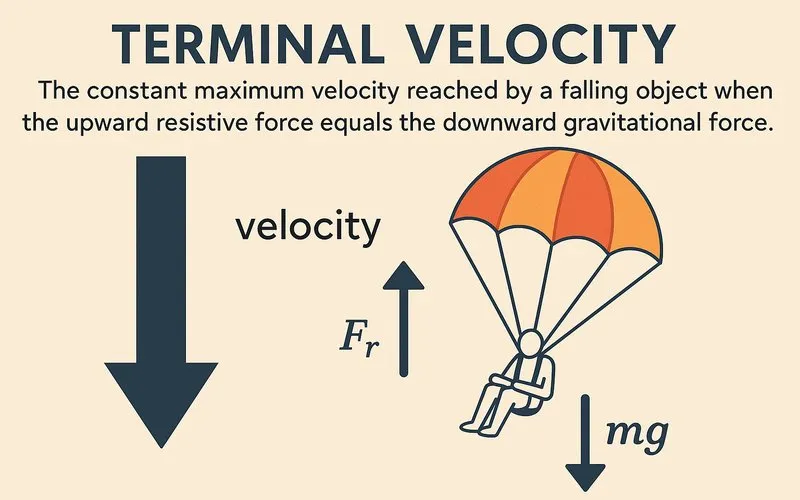

Imagine a skydiver just jumping out of a plane. Initially, their speed is low, so air resistance is very small. Gravity is much stronger, so the skydiver accelerates downward, picking up speed rapidly. As their speed increases, the upward push of air resistance gets stronger and stronger. Eventually, a point is reached where the air resistance force is exactly equal to the downward force of gravity. At this exact moment, the net force on the skydiver becomes zero.
The Mathematics Behind the Maximum Speed
To understand terminal velocity quantitatively, we need to look at the formula for air resistance. A common model for the drag force ($ F_d $) is:
$ F_d = \frac{1}{2} \times C \times \rho \times A \times v^2 $
Where:
- $ C $ is the drag coefficient, a number that depends on the object's shape (a streamlined car has a lower $ C $ than a flat parachute).
- $ \rho $ (the Greek letter "rho") is the density of the fluid (e.g., air is less dense than water).
- $ A $ is the cross-sectional area of the object facing the direction of motion.
- $ v $ is the velocity of the object.
Notice that velocity ($ v $) is squared. This means if you double your speed, the air resistance becomes four times stronger!
At terminal velocity ($ v_t $), the drag force equals the weight:
$ F_d = F_g $
$ \frac{1}{2} C \rho A v_t^2 = m g $
We can solve this equation for the terminal velocity:
$ v_t = \sqrt{\frac{2 m g}{C \rho A}} $
This formula shows us exactly what factors influence how fast an object can fall.
How Shape and Size Influence the Fall
Not all objects have the same terminal velocity. The formula $ v_t = \sqrt{\frac{2 m g}{C \rho A}} $ reveals the key players:
| Factor | Effect on Terminal Velocity | Real-World Example |
|---|---|---|
| Mass ($ m $) | A heavier object has a higher terminal velocity. Mass is in the numerator, so more mass means a higher value under the square root. | A bowling ball and a basketball dropped from the same height. The heavier bowling ball will hit the ground first because it has a higher terminal velocity. |
| Cross-sectional Area ($ A $) | A larger area facing the direction of fall creates more drag, leading to a lower terminal velocity. Area is in the denominator. | A piece of paper falls slowly if flat, but crumpled into a tight ball (smaller $ A $), it falls much faster. |
| Drag Coefficient ($ C $) | A streamlined object (low $ C $) has a higher terminal velocity than a blunt object (high $ C $). | A raindrop is shaped like a teardrop (low drag) and falls quickly. A parachute is designed to have high drag to create a very low, safe terminal velocity. |
| Fluid Density ($ \rho $) | Falling through a denser fluid (like water vs. air) results in a lower terminal velocity. | You can run much faster on land than you can swim through water because water's higher density creates immense drag at much lower speeds. |
Terminal Velocity in Action: From Skydiving to Raindrops
This concept isn't just theoretical; it's at work all around us, and even inside us!
Skydiving: This is the classic example. A skydiver jumping from a plane accelerates for about 10-15 seconds, reaching a terminal velocity of about 200 km/h (125 mph) in a "belly-to-earth" position. This position maximizes area ($ A $) and drag. When the parachute opens, the cross-sectional area ($ A $) and drag coefficient ($ C $) increase dramatically. This instantly lowers the terminal velocity to a safe 15-25 km/h (9-15 mph) for landing.
Raindrops: Not all raindrops hit the ground at the same speed. A tiny mist droplet has a very low terminal velocity and floats down slowly. A large raindrop, about 5 mm in diameter, can have a terminal velocity of around 30 km/h (20 mph). This is why heavy rain feels more forceful than a light drizzle.
Vehicle Design: Car engineers work hard to reduce the drag coefficient ($ C $) of their vehicles. A lower drag coefficient means the car encounters less air resistance at high speeds, which improves fuel efficiency. While cars don't reach terminal velocity on a road (the engine provides continuous force), the same principles of aerodynamic drag apply.
Biology: Small animals like squirrels and mice can survive falls from great heights that would be fatal to humans. This is because their terminal velocity is much lower due to their high surface area-to-mass ratio. Their small mass ($ m $) and relatively large area ($ A $) combine to create a slow, survivable falling speed.
Common Mistakes and Important Questions
Q: Does a heavier object always fall faster than a lighter one?
In a vacuum, where there is no air resistance, all objects fall at the same rate regardless of their mass. A feather and a hammer dropped together will hit the ground simultaneously. However, in the presence of air, the answer is "it depends." If two objects have the same shape and size, the heavier one will have a higher terminal velocity and hit the ground first. But if a heavy object has a very large, parachute-like shape and a light object is small and dense, the light object could easily reach a higher terminal velocity.
Q: Can terminal velocity change during a fall?
Yes, absolutely. Terminal velocity is not a fixed property of the object itself, but of the object-fluid system. If any factor in the formula $ v_t = \sqrt{\frac{2 m g}{C \rho A}} $ changes, the terminal velocity changes. A skydiver changes their terminal velocity by changing their body position (which alters $ A $ and $ C $). Furthermore, air density ($ \rho $) decreases with altitude, so an object falling from very high will experience an increasing terminal velocity as it descends into denser air.
Q: Is there terminal velocity in other fluids besides air?
Yes, the concept applies to any fluid. For example, a marble dropped into a tall column of oil will accelerate until the upward drag force from the oil equals its weight, and then it will fall at a constant speed. Because oil is denser than air, the terminal velocity in oil is much, much lower than in air.
Terminal velocity is a beautiful demonstration of equilibrium in physics, where competing forces balance out to produce a steady state of motion. It explains the real-world falling behavior of objects, moving beyond the idealized concept of free fall in a vacuum. From the thrilling sport of skydiving to the gentle fall of a leaf and the efficient design of modern vehicles, the principles of terminal velocity are deeply woven into our everyday experiences. Understanding it helps us appreciate the invisible force of air resistance and its profound effect on everything that moves through our atmosphere.
Footnote
Definitions of key terms and abbreviations used in this article:
1. Drag Coefficient ($ C $): A dimensionless number that quantifies the drag or resistance of an object in a fluid environment. It depends on the object's shape, with streamlined shapes having lower values.
2. Cross-sectional Area ($ A $): The area of a two-dimensional shape that is presented to the oncoming fluid flow. For a falling sphere, it is the area of a circle with the sphere's diameter, $ A = \pi r^2 $.
3. Fluid Density ($ \rho $): The mass per unit volume of a substance (liquid or gas). Its SI unit is kilograms per cubic meter ($ kg/m^3 $).
