Centre of Gravity: The Balancing Point of Everything
What Exactly is the Centre of Gravity?

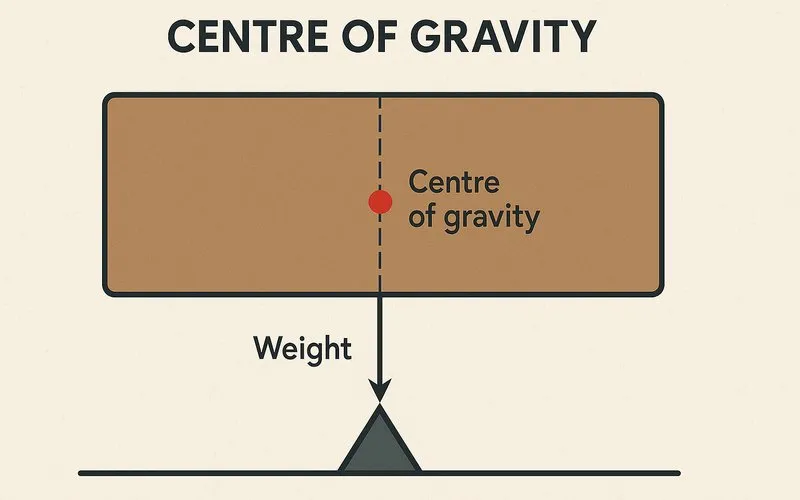

Imagine trying to balance a pencil on the tip of your finger. There is one specific spot where it will sit perfectly without tipping over. That spot is its centre of gravity. Scientifically, it is defined as the single point through which the entire weight of an object can be considered to act. For simple, symmetrical objects with uniform density, like a perfect sphere or a rectangular book, the centre of gravity is located at their geometric centre. However, for irregularly shaped objects, its location can be elsewhere.
Every object is made up of a vast number of tiny particles, each with its own small weight due to gravity. The centre of gravity is the average position of all these individual weights. When we calculate the forces acting on an object, we can simplify things by pretending that the entire weight is pulling down from this one point. This concept is vital for understanding why things don't fall over and how forces cause objects to rotate.
Finding the Centre of Gravity in Different Objects
The method for finding the centre of gravity depends on the object's shape and composition. Let's look at a few common scenarios.
For Regular Shapes: The centre of gravity is at the geometric centre. For a rectangle, it's where the two diagonals cross. For a sphere, it's the very center. For a uniform rod, it's the midpoint.
For Irregular Shapes (Plumb Line Method): You can find the centre of gravity of a flat, irregular object, like a cardboard cutout, by suspending it from two different points.
- Suspend the object from a single point and let it come to rest. Hang a plumb line (a string with a weight) from the same point. Draw a line on the object along the plumb line.
- Now, suspend the object from a different point and repeat the process. Draw another line along the new plumb line position.
- The point where these two lines intersect is the object's centre of gravity.
For Composite Objects: When an object is made of several parts, you can find the overall centre of gravity by considering the weight and centre of gravity of each individual part.
The Mathematics Behind the Balance
For students ready for a more mathematical approach, the centre of gravity can be calculated. This involves the concept of a moment or torque, which is the turning effect of a force. The moment is calculated as the force multiplied by the perpendicular distance from the pivot point.
For a system to be in balance, the total clockwise moment about any point must equal the total anticlockwise moment about that same point. This principle is known as the Principle of Moments.
To find the centre of gravity of a set of particles along a line, you can use the following formula, which is a weighted average of their positions:
$ x_{cg} = \frac{(w_1 \times x_1) + (w_2 \times x_2) + (w_3 \times x_3) + ...}{w_1 + w_2 + w_3 + ...} $
Where:
- $ x_{cg} $ is the position of the centre of gravity.
- $ w_1 $, $ w_2 $, etc., are the weights of the individual particles.
- $ x_1 $, $ x_2 $, etc., are the positions of the individual particles.
For a 2D object, you would need to calculate this for both the x and y coordinates separately.
Stability: How the Centre of Gravity Keeps Things Upright
The position of the centre of gravity is directly linked to an object's stability. Stability refers to an object's ability to return to its original position after being tilted.
An object is stable if, when tilted, its centre of gravity rises. This creates a "restoring moment" that pulls the object back to its original position. Think of a cone sitting on its base – if you tilt it slightly, its centre of gravity rises, and it falls back.
An object is unstable if, when tilted, its centre of gravity falls. The tilt increases, and the object topples over. A cone balanced on its point is a perfect example – the slightest tilt causes its centre of gravity to lower, making it fall.
There are three types of equilibrium:
| Type of Equilibrium | Description | Example |
|---|---|---|
| Stable | If displaced, the centre of gravity rises and the object returns to its original position. | A book lying flat on a table. |
| Unstable | If displaced, the centre of gravity falls and the object moves away from its original position. | A pencil balanced on its tip. |
| Neutral | If displaced, the centre of gravity remains at the same height and the object stays in its new position. | A ball bearing on a flat surface. |
To increase the stability of an object, you can:
- Widen the base: A racing car has a very wide wheelbase to prevent it from rolling over during sharp turns.
- Lower the centre of gravity: SUVs are designed with a lower centre of gravity to reduce the risk of tipping. A "Weebles" toy doesn't fall over because its centre of gravity is very low and its base is rounded, causing the centre of gravity to rise when tilted.
Centre of Gravity in Action: From Playgrounds to Engineering
The centre of gravity is not just a theoretical idea; it's at work all around us.
The Seesaw: A seesaw is a perfect demonstration of the principle of moments. For two people to balance, the product of the weight and distance from the pivot for one person must equal the product for the other. If a heavier person wants to balance with a lighter one, the heavier person must sit closer to the pivot. This adjusts the moments so they are equal: $ F_1 \times d_1 = F_2 \times d_2 $.
Human Posture: When you stand up straight, your centre of gravity is typically located in your lower abdomen. When you lean forward, your centre of gravity moves forward. To avoid falling over, you instinctively stick a foot out behind you. This shifts your "base of support" to encompass the new position of your centre of gravity.
Transportation and Design: The design of double-decker buses requires a very low centre of gravity to prevent them from tipping over when going around corners. Similarly, cranes have counterweights at the back to ensure that the centre of gravity of the entire system stays within the wide, stable base of the crane, preventing it from toppling forward when lifting heavy loads.
Sports: In high jumping, the "Fosbury Flop" technique allows athletes to clear the bar by arching their body in such a way that their centre of gravity actually passes under the bar, even though their body goes over it. This is a clever manipulation of the body's centre of gravity to achieve a higher jump.
Common Mistakes and Important Questions
Is the centre of gravity always inside the object?
No, this is a common misconception. For objects with a regular shape and uniform density, it is. But for irregular shapes, it can be located outside the physical material. A classic example is a boomerang or a donut (torus). The centre of gravity of a donut is at its geometric center, in the middle of the hole, where there is no actual dough.
What is the difference between centre of gravity and centre of mass?
In most everyday situations on Earth, they are the same point. The centre of mass is the average position of all the mass in an object. The centre of gravity is the average position of the weight. Since weight is mass multiplied by gravity ($ W = m \times g $), and if gravity is the same everywhere in the object, the two points coincide. However, for objects large enough that gravity varies across them (like a planet), the centre of gravity and centre of mass can be slightly different.
Why does a leaning tower like the Tower of Pisa not fall over?
The Tower of Pisa does not fall because its centre of gravity is still positioned directly above its base of support. The base is wide and the foundation has been engineered to keep the centre of gravity within this base. If the tower leaned so far that a vertical line drawn downward from its centre of gravity fell outside the base, it would topple.
Conclusion
The centre of gravity is a powerful unifying concept that simplifies the complex distribution of weight in an object to a single point. From the simple act of balancing a ruler on your finger to the complex engineering of a stable spacecraft, understanding this point is crucial. It governs stability, explains the principle of the lever, and is fundamental to the fields of physics and engineering. By grasping how to locate it and how it influences balance, we can better understand and interact with the physical world around us.
Footnote
1 Torque: Also known as moment of a force, it is a measure of the force that can cause an object to rotate about an axis. It is calculated as force multiplied by the perpendicular distance from the pivot point. SI unit is Newton-metre (Nm).
2 Equilibrium: A state where the net force and net torque on an object are zero, resulting in no acceleration or rotation. An object in equilibrium can be at rest or moving with constant velocity.
3 Principle of Moments: For an object to be in rotational equilibrium, the sum of the clockwise moments about a pivot must equal the sum of the anticlockwise moments about the same pivot.
