The Principle of Moments
What is a Moment?
Before diving into the principle itself, we need to understand what a moment is. In simple terms, a moment is the turning effect of a force. Think about opening a heavy door. Pushing near the handle is easy, but pushing near the hinges is very difficult. The force is the same, but the turning effect is different. This turning effect is the moment of the force.
The size of a moment depends on two factors:
- The size of the force applied.
- The perpendicular distance from the pivot (the point around which the object turns) to the line of action of the force.
The moment (M) of a force is calculated using the equation:
$ M = F \times d $
Where:
• M is the moment in newton-metres (Nm).
• F is the force in newtons (N).
• d is the perpendicular distance from the pivot to the force in metres (m).
For example, if you apply a force of 10 N at a perpendicular distance of 0.5 m from a pivot, the moment is 10 N × 0.5 m = 5 Nm.
The Principle of Moments Explained
Now, let's combine this idea of a moment with the concept of equilibrium. An object is in equilibrium when it is either at rest or moving with a constant velocity. For this article, we will focus on objects that are stationary, meaning there is no net force and no net turning effect acting on them.

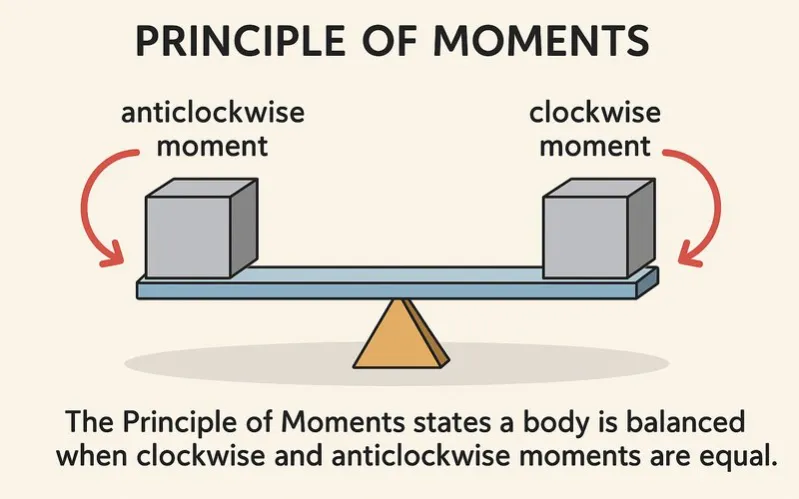

The Principle of Moments formally states:
For an object in equilibrium, the sum of the clockwise moments about any point is equal to the sum of the anticlockwise moments about the same point.
This can be written as a simple formula:
$ \sum \text{Clockwise Moments} = \sum \text{Anticlockwise Moments} $
Or, using the moment formula:
$ \sum (F_{cw} \times d_{cw}) = \sum (F_{acw} \times d_{acw}) $
The powerful part of this principle is that it holds true about any point you choose as your pivot. While we often choose the actual pivot point of the object for simplicity, the principle will give a correct result no matter which point you select to take moments about.
Conditions for Equilibrium
For an object to be completely stationary and balanced, two separate conditions must be met simultaneously. The Principle of Moments is one of them.
| Condition | Description | What it Ensures |
|---|---|---|
| 1. Principle of Moments | Sum of clockwise moments = Sum of anticlockwise moments | The object does not rotate. |
| 2. Net Force is Zero | Sum of upward forces = Sum of downward forces Sum of forces to the left = Sum of forces to the right | The object does not move linearly (up/down, left/right). |
If only the first condition is met, the object might not spin, but it could still slide or accelerate. If only the second condition is met, the object might not slide, but it could still start to rotate. True equilibrium requires both.
A Practical Example: The Seesaw
The seesaw (or teeter-totter) is a perfect real-world example of the Principle of Moments in action. The pivot is the central support. Two children sit on either end, applying forces (their weights) downwards at different distances from the pivot.
For the seesaw to be balanced (in equilibrium):
Clockwise Moment = Anticlockwise Moment
Let's say Child A has a weight (force) of 400 N and sits 1.5 m to the left of the pivot. Child B has a weight of 300 N. How far must Child B sit on the right side to balance the seesaw?
We set the moments equal to each other:
$ F_A \times d_A = F_B \times d_B $
$ 400 \times 1.5 = 300 \times d_B $
$ 600 = 300 \times d_B $
$ d_B = 600 / 300 $
$ d_B = 2 \text{ m} $
So, Child B must sit 2 m from the pivot. Notice that the lighter child must sit farther away to create the same turning effect as the heavier child who is closer. This demonstrates the trade-off between force and distance.
Applying the Principle to a Balanced Beam
Let's look at a more complex example with multiple forces. Imagine a light, rigid beam supported by a pivot at its center. We will ignore the weight of the beam itself for now. Several forces act on the beam at different points, as shown in the description below.
Scenario: A beam is pivoted at its center, point P.
- On the left side: A force of 10 N acts downwards 2 m from P. Another force of 5 N acts upwards 1 m from P.
- On the right side: A force of 8 N acts downwards 3 m from P.
Is the beam in equilibrium? We need to check if the Principle of Moments holds.
Step 1: Identify clockwise and anticlockwise moments.
- Anticlockwise Moments (left of pivot):
- The 10 N force acts downwards, which would try to turn the beam anticlockwise. Moment = 10 N × 2 m = 20 Nm (acw).
- The 5 N force acts upwards, which would try to turn the beam clockwise. Moment = 5 N × 1 m = 5 Nm (cw).
- Clockwise Moments (right of pivot):
- The 8 N force acts downwards, which would try to turn the beam clockwise. Moment = 8 N × 3 m = 24 Nm (cw).
Step 2: Calculate the total moments.
Total Anticlockwise Moment = 20 Nm
Total Clockwise Moment = Moment from right side + Clockwise moment from left side = 24 Nm + 5 Nm = 29 Nm
Step 3: Compare.
Total Clockwise Moment (29 Nm) ≠ Total Anticlockwise Moment (20 Nm).
Since they are not equal, the beam is not in equilibrium. It will rotate clockwise.
Common Mistakes and Important Questions
Q: I often confuse clockwise and anticlockwise moments. Is there an easy way to remember which is which?
A: Yes! A good trick is to physically imagine yourself at the pivot point. Look along the beam towards the point where the force is applied. Now, imagine which way the force would push that point. If it would push it to the right and down (like the hands of a clock moving), it's a clockwise moment. If it would push it to the left and up (against the clock's movement), it's an anticlockwise moment.
Q: Why is the "perpendicular distance" so important? What happens if the force is not at a 90-degree angle?
A: The perpendicular distance is crucial because it represents the most effective distance for creating a turning effect. If you push a door at an angle, only the part of the force that is perpendicular to the door contributes to turning it. The component of the force parallel to the door (pushing towards the hinges) does not cause rotation. The moment is always calculated as $ M = F \times d_{\perp} $, where $ d_{\perp} $ is the shortest distance from the pivot to the line of action of the force.
Q: Does the principle still work if the object isn't pivoted? For example, a book sitting on a table?
A: Absolutely! The Principle of Moments holds for any object in equilibrium, whether it has a fixed pivot or not. You can choose any point in space to take moments about. For the book on the table, if you calculate the moments of all the forces (weight downwards, reaction forces upwards from the table) about any point you like, you will find that the total clockwise moment always equals the total anticlockwise moment. This is a powerful check for stability in structures and objects.
The Principle of Moments is a elegant and powerful tool for understanding balance and rotation. From the simple joy of a seesaw to the complex engineering of a crane or bridge, this principle is at work. By remembering that a moment is a turning force ($ M = F \times d $) and that for balance the clockwise and anticlockwise moments must be equal, you can solve a vast array of practical problems. It is one of the fundamental pillars of physics that connects simple observations to profound scientific understanding.
Footnote
1 Equilibrium: A state where the net force and net moment acting on an object are both zero, resulting in no acceleration or rotation.
2 Moment (M): The turning effect of a force, calculated as the product of the force and the perpendicular distance from the pivot to the line of action of the force. Measured in Newton-metres (Nm).
3 Pivot (Fulcrum): The fixed point about which an object rotates or turns.
4 Nm: Newton-metre, the SI unit for a moment. 1 Nm is the moment created by a force of one newton acting perpendicularly at a distance of one metre from a pivot.
