The Triangle of Forces: A Visual Path to Equilibrium
The Core Principle: From Equilibrium to Geometry
Before diving into the triangle, we must understand equilibrium. An object is in equilibrium when the net force acting on it is zero. This means all the forces pushing and pulling on the object cancel each other out, resulting in no acceleration. The object is either at rest or moving with a constant velocity.

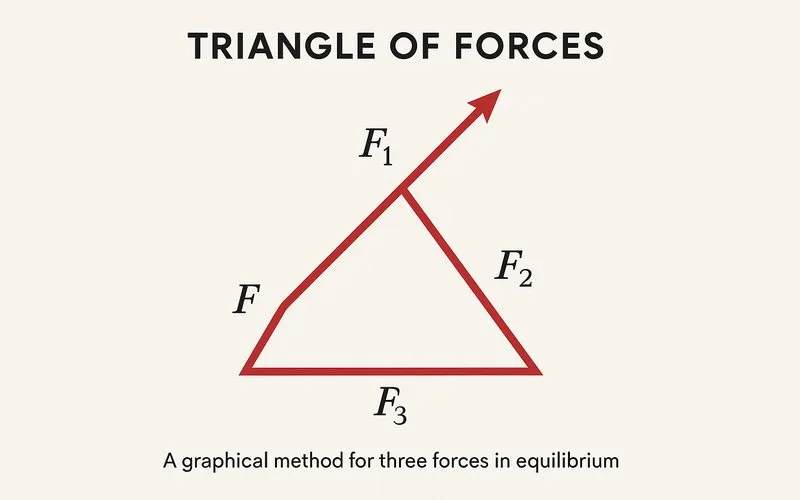

When only two forces are in equilibrium, they must be equal in magnitude and opposite in direction. But what about three forces? This is where the graphical method shines. The Triangle of Forces states:
A vector is a quantity that has both magnitude (size) and direction. Force is a vector. When we draw a force vector, the length of the arrow represents the magnitude of the force (e.g., 10 N), and the direction of the arrow shows the direction in which the force is acting.
The "head-to-tail" arrangement is key. You start by drawing one force vector. Then, you place the tail of the second vector at the head of the first. Finally, you place the tail of the third vector at the head of the second. If the three forces are in equilibrium, the head of the third vector will meet the tail of the first vector, perfectly closing the triangle. If the triangle doesn't close, the forces are not in equilibrium.
Step-by-Step: Constructing Your First Force Triangle
Let's learn how to build a triangle of forces with a practical approach. Imagine a simple scenario: a street lamp hanging from a post by a chain, making an angle. Three forces act on the lamp: its weight (gravity pulling down), the tension in the chain (pulling up and to the side), and the force from the post (pushing outwards). For the lamp to be still, these forces must be in equilibrium.
Here is the process to analyze this using the triangle of forces:
Step 2: Choose a Scale. Decide on a scale for your drawing. For example, 1 cm = 10 N. This converts force magnitudes into measurable lengths.
Step 3: Draw the First Vector. Pick one force and draw it as an arrow to scale. The direction must be accurate.
Step 4: Draw the Second Vector Head-to-Tail. From the head of the first arrow, draw the second force vector to scale and in its correct direction.
Step 5: Close the Triangle. The third force vector should now be drawn from the head of the second vector back to the tail of the first vector. This closing side represents the third force, both in direction and magnitude (using your scale).
Step 6: Take Measurements. Use a ruler and protractor to measure the length and angle of the unknown force vector from the triangle. Convert the length back to force units using your scale.
A Practical Example: The Hanging Flower Basket
Let's apply the method to a concrete problem. A 20 N flower basket is hung from a wall using two strings. String A is horizontal, and String B makes an angle of 30° with the ceiling. We need to find the tensions in String A ($T_A$) and String B ($T_B$).
The three forces acting on the basket are:
- Weight (W): 20 N, vertically downward.
- Tension in String A ($T_A$): horizontal, direction away from the wall.
- Tension in String B ($T_B$): at 30° above the horizontal.
We know the magnitude and direction of the weight, but only the directions of the two tensions. The triangle of forces will help us find the unknown magnitudes.
Construction:
- Scale: Let's use 1 cm = 5 N. So the 20 N weight is a 4 cm vertical arrow.
- First Vector: Draw the weight vector vertically downward, 4 cm long. Label its tail 'O' and head 'A'.
- Second Vector: From point A, draw a horizontal line to the right (this is the direction of $T_A$). We don't know its length yet.
- Third Vector (Closing the Triangle): The third force is $T_B$. We know it must connect from the end of the second vector back to point O. Its direction is 30° above the horizontal. So, from point O, draw a line at 30°. Where this line intersects the horizontal line from point A is the vertex that completes the triangle.
Now, measure the sides of the triangle. The horizontal side (from A to the intersection) represents $T_A$. The sloping side (from O to the intersection) represents $T_B$.
Let's say you measure the horizontal side to be 6.9 cm. Using the scale (1 cm = 5 N), $T_A = 6.9 \times 5 = 34.5 N$. The sloping side measures 8 cm, so $T_B = 8 \times 5 = 40 N$.
This graphical solution gives us a clear visual representation of how the forces balance. The relatively long $T_B$ arrow shows that the angled string bears more force than the basket's weight itself!
The Mathematical Connection: Trigonometry and the Force Triangle
The triangle of forces is not just a drawing; it's a geometric representation that allows us to use math. Instead of measuring with a ruler, we can use trigonometry to find unknown forces precisely. This is especially useful when high accuracy is required.
Let's return to the flower basket example. Once we have the concept of the triangle, we can sketch it and label the angles. The weight vector is vertical. The $T_A$ vector is horizontal. The $T_B$ vector is at 30°. This creates a right-angled triangle.
Using trigonometric ratios:
- We know the side opposite the 30° angle is the weight, W = 20 N.
- The hypotenuse of the triangle is $T_B$.
- The side adjacent to the 30° angle is $T_A$.
We can now write the equations:
$\sin(30^\circ) = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{W}{T_B}$
$\sin(30^\circ) = \frac{20}{T_B}$
Since $\sin(30^\circ) = 0.5$, we get $0.5 = \frac{20}{T_B}$, which means $T_B = 40 N$.
Similarly, for $T_A$:
$\tan(30^\circ) = \frac{\text{opposite}}{\text{adjacent}} = \frac{W}{T_A}$
$\tan(30^\circ) = \frac{20}{T_A}$
Since $\tan(30^\circ) \approx 0.577$, we get $T_A = \frac{20}{0.577} \approx 34.6 N$.
These calculated values match very closely with our graphical measurements, confirming the validity of the method. The table below summarizes the two approaches.
| Method | Tension in String A ($T_A$) | Tension in String B ($T_B$) | Key Features |
|---|---|---|---|
| Graphical (Triangle of Forces) | 34.5 N | 40.0 N | Visual, intuitive, good for estimation. |
| Mathematical (Trigonometry) | 34.6 N | 40.0 N | Precise, requires knowledge of angles and math. |
Common Mistakes and Important Questions
Q: Does the order of drawing the vectors matter?
A: No, the order does not matter. As long as you maintain the correct magnitude and direction for each force and draw them head-to-tail, you will always form a closed triangle. Trying different orders is a good way to check your work.
Q: What if the triangle doesn't close?
A: If the triangle does not close, it means the forces are not in equilibrium. There is a net force acting on the object, which would cause it to accelerate. This could be due to an error in measurement, an incorrect assumption about a force's direction, or simply because the system is not balanced.
Q: Can I use the triangle of forces for more than three forces?
A: The basic triangle of forces is specifically for three forces in equilibrium. For more than three forces, the method generalizes to the Polygon of Forces. If 'n' forces are in equilibrium, their vectors drawn head-to-tail will form a closed polygon with 'n' sides.
Footnote
1 Equilibrium: A state where the net force on an object is zero, resulting in no acceleration. The object is either at rest or moving with constant velocity.
2 Vector: A physical quantity that possesses both magnitude and direction, such as force, velocity, or displacement. It is typically represented by an arrow.
3 Statics: The branch of mechanics that deals with forces in equilibrium, focusing on systems that are at rest.
4 Tension: The pulling force transmitted through a string, rope, cable, or similar object when it is pulled tight by forces acting from opposite ends.
