Tensile Force: The Pull That Shapes Our World

Understanding the fundamental force that stretches, pulls, and holds things together.

Summary: Tensile force is a fundamental concept in physics and engineering, describing a pulling action that attempts to stretch a material. This article explores the core principles of tensile force, its relationship with stress and strain, and its critical role in everyday life, from the cables of a suspension bridge to the fibers in a spider's web. Key concepts like elastic limit, Hooke's Law, and tensile strength are explained with simple, relatable examples. Understanding tensile force is essential for grasping how structures are designed to be both strong and safe, preventing failures and inspiring innovations in material science.

What Exactly is a Tensile Force?

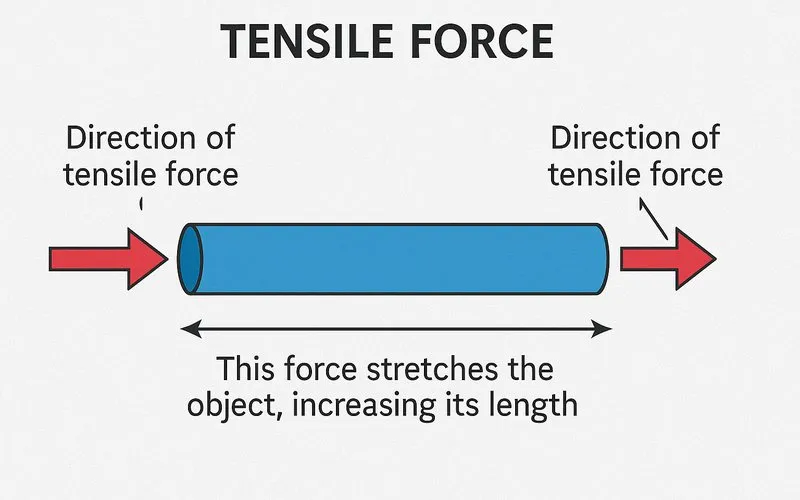

Imagine you and a friend are pulling on opposite ends of a rope in a game of tug-of-war. The force you both are applying, which is trying to pull the rope apart, is a perfect example of a tensile force. In scientific terms, a tensile force is a mechanical load that is applied perpendicularly to the cross-section of a material, tending to elongate or stretch it. It is the opposite of a compressive force, which squeezes or shortens an object.

When a tensile force is applied to an object, like a spring or a rubber band, the object resists this stretching. This internal resistance that the material generates is what we call stress. The actual amount of stretching or change in length that occurs is known as strain. Tensile forces are everywhere: the force in the cables holding up a elevator, the tension in guitar strings when they are tuned, and even the pull of gravity on a chandelier are all real-world demonstrations of tensile force at work.

The Science of Stretching: Stress and Strain

To truly understand tensile force, we need to look at two related concepts: stress and strain. These terms help scientists and engineers quantify how materials behave under force.

Stress ($\sigma$) is defined as the force applied per unit area. The formula is: $\sigma = \frac{F}{A}$, where $F$ is the force applied and $A$ is the cross-sectional area. It is measured in Pascals (Pa), which is Newtons per square meter ($N/m^2$).

Strain ($\epsilon$) is a measure of how much a material deforms under stress. It is the ratio of the change in length to the original length. The formula is: $\epsilon = \frac{\Delta L}{L_0}$, where $\Delta L$ is the change in length and $L_0$ is the original length. Strain is a dimensionless quantity; it has no units.

For example, if you have a rubber band that is 10 cm long and you stretch it to 12 cm, the change in length $\Delta L$ is 2 cm. The strain would be $\epsilon = \frac{2}{10} = 0.2$. This means the rubber band has been stretched to 120% of its original length.

Hooke's Law: The Rule of Elasticity

For many materials, when a small tensile force is applied, the stretching is proportional to the force. This is known as Hooke's Law, named after the 17th-century physicist Robert Hooke. The law states that the force needed to extend or compress a spring by some distance is proportional to that distance.

Hooke's Law Formula: $F = k \times \Delta L$
Where:
$F$ is the applied force,
$k$ is the spring constant (a measure of the spring's stiffness),
$\Delta L$ is the change in length (extension or compression).

A stiffer spring has a larger spring constant $k$, meaning it requires more force to stretch it the same amount as a less stiff spring. This relationship holds true up to a point called the proportional limit. If you stretch a material beyond this limit, it will not return to its original shape when the force is removed, resulting in permanent deformation.

Material Behavior Under Tension

Not all materials respond to tensile force in the same way. Engineers test materials to create a stress-strain curve, which tells a story about the material's strength and ductility.

Point on Curve	Description	Simple Analogy
Proportional Limit	The point up to which stress is directly proportional to strain (Hooke's Law is valid).	Stretching a new rubber band a little; it springs right back.
Elastic Limit	The maximum stress a material can withstand and still return to its original shape upon unloading.	Stretching a rubber band to its limit before it becomes permanently looser.
Yield Point	The point where the material begins to deform plastically (permanently) without a significant increase in load.	Bending a paperclip just enough so it doesn't spring back.
Ultimate Tensile Strength (UTS)	The maximum stress the material can withstand while being stretched before it breaks or fractures.	The absolute hardest you can pull on a rope before it snaps.
Fracture Point	The point at which the material physically separates into two or more pieces.	The rope finally snapping in two.

Tensile Force in Action: From Bridges to Biology

Tensile force is not just a laboratory concept; it is a critical player in the world around us. Engineers and designers must carefully calculate tensile forces to ensure structures are safe and functional.

Suspension Bridges: The majestic golden gate bridge is a classic example. The massive main cables are in a state of high tension, supporting the weight of the bridge deck and the traffic on it. The tensile strength of the steel cables is what keeps the bridge from collapsing.

Elevators: The cable of an elevator is constantly under tensile force due to the weight of the elevator car. The cable must be strong enough to not only hold the static weight but also the additional force when the elevator starts and stops moving.

Spider Webs: A spider's web is a marvel of natural engineering. The silk has an incredible tensile strength, comparable to high-grade steel. This allows the web to absorb the kinetic energy of flying insects without breaking, demonstrating optimal use of tensile force for trapping prey.

Sports Equipment: The strings of a tennis racket are tightened to a specific tension. This tensile force determines how the racket interacts with the ball, affecting power and control. Similarly, climbing ropes are designed to have high tensile strength and elasticity to safely catch a falling climber.

Common Mistakes and Important Questions

Is tension the same as tensile force?

In everyday language, they are often used interchangeably. However, in physics, tensile force typically refers to the external pulling force applied to an object. Tension is the internal state of the object—the stress within the material—that arises in response to the applied tensile force. When you pull on a rope, you apply a tensile force, and the rope experiences tension throughout its length.

Can a liquid or a gas experience tensile force?

Generally, liquids and gases (fluids) cannot support a steady tensile force because they flow. If you try to "pull" on water, the molecules simply move apart. However, under certain special conditions, like in a very pure water jet or through surface tension, liquids can exhibit brief resistance to being pulled apart. Solids are the primary materials that can reliably withstand tensile forces.

Why do objects eventually break under a large enough tensile force?

Everything is made of atoms held together by chemical bonds. When you apply a tensile force, you are essentially stretching these bonds. Up to the elastic limit, the bonds act like springs and can return to their original state. Beyond the ultimate tensile strength, the forces between the atoms are overcome, causing the bonds to break. This breakage starts at a microscopic flaw or crack in the material and rapidly propagates, leading to a macroscopic fracture.

Conclusion: Tensile force is a simple yet powerful idea that helps us understand and manipulate the physical world. From the games we play to the bridges we cross, the principles of stretching and pulling are fundamental. By learning about stress, strain, and Hooke's Law, we gain insight into why materials behave the way they do and how engineers can design amazing structures that are both incredibly strong and surprisingly graceful. The next time you stretch a rubber band or see a suspension bridge, you'll appreciate the invisible, pulling force that makes it all possible.

Footnote

¹ UTS (Ultimate Tensile Strength): The maximum stress that a material can withstand while being stretched or pulled before failing or breaking. It is a critical material property used in engineering design.

² Elastic Limit: The maximum stress a material can experience without undergoing permanent deformation. Below this limit, the material will return to its original shape when the stress is removed.

³ Strain: A dimensionless measure of deformation representing the displacement between particles in the material relative to a reference length.
