Direct Current (d.c.): The One-Way Flow of Electricity
What is Direct Current?

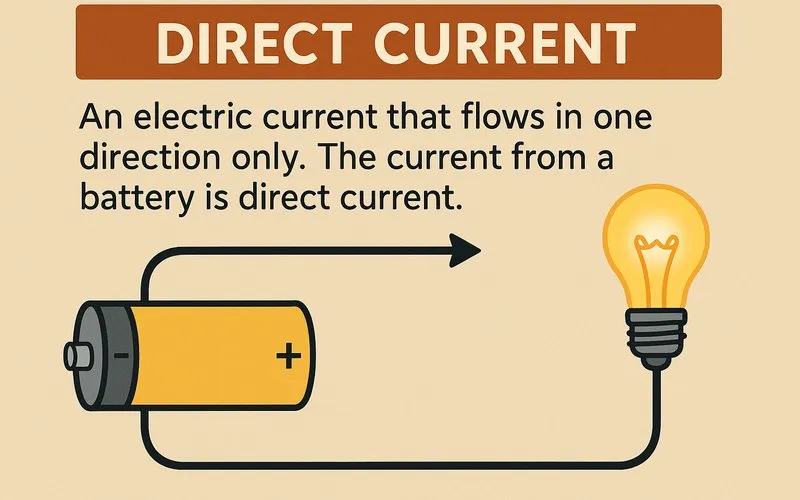

Imagine a stream of water flowing down a gentle, consistent slope. The water moves in one direction only, from a higher point to a lower point. Direct Current (d.c.) is very similar to this. It is an electric current that flows in one direction only, from a point of high electric potential (the positive terminal) to a point of low electric potential (the negative terminal). The most common source of d.c. is a battery. When you put batteries in a remote control, you are creating a closed path for electrons to flow in a single, steady direction, powering the device.
The key characteristic of d.c. is its constancy. The voltage, which is the electrical "push" that causes current to flow, remains stable over time. If we were to draw a graph of d.c. voltage versus time, it would look like a flat, straight line. This steady nature makes d.c. ideal for powering sensitive electronic components that could be damaged by a changing voltage.
How is Direct Current Produced?
Direct Current can be generated in several ways, each suitable for different scales of use, from small-scale electronics to large-scale power transmission.
| Source | How It Works | Common Examples |
|---|---|---|
| Batteries | Chemical reactions inside the battery create a constant potential difference between its positive and negative terminals. | Remote controls, toys, mobile phones, laptops. |
| Solar Cells (Photovoltaic Cells) | Sunlight (photons) strikes the cell, knocking electrons loose and creating a direct current. | Solar panels on rooftops, solar-powered garden lights, calculators. |
| d.c. Generators (Dynamos) | A coil of wire is rotated in a magnetic field. A commutator reverses the coil's connection to the external circuit at the right moment to maintain a one-way current. | Older bicycle dynamos, some power plants. |
| Rectifiers | Electronic circuits that convert Alternating Current (a.c.) from wall sockets into Direct Current (d.c.). | Power adapters for laptops, phone chargers, power supplies inside desktop computers. |
The Mathematics of a Simple d.c. Circuit
To understand how d.c. circuits work, we use a very important law called Ohm's Law1. It describes the relationship between voltage, current, and resistance in an electrical circuit.
Where:
$V$ = Voltage (in Volts, V)
$I$ = Current (in Amperes, A)
$R$ = Resistance (in Ohms, $\Omega$)
Example: Imagine a simple circuit with a 9 V battery connected to a small light bulb with a resistance of 30 \Omega. What is the current flowing through the bulb?
Using Ohm's Law: $V = I \times R$
We need to find $I$, so we rearrange the formula: $I = V / R$
Now, plug in the values: $I = 9 \text{ V} / 30 \Omega = 0.3 \text{ A}$
So, a current of 0.3 A (or 300 milliamps) is flowing through the light bulb, causing it to glow.
Direct Current in Action: From Simple to Complex
Direct Current is not just a theoretical concept; it is actively at work all around us. Let's trace its path in a few scenarios.
Scenario 1: The Flashlight. This is one of the simplest d.c. circuits. Two 1.5 V batteries are connected in series (end-to-end) inside the flashlight. When connected in series, their voltages add up, providing a total of 3 V to the circuit. When you flip the switch, you complete the circuit. The d.c. flows from the positive terminal of the battery, through the switch, through the light-emitting diode (LED)2 or bulb (which provides resistance), and back to the negative terminal of the battery. The LED converts the electrical energy into light and a small amount of heat.
Scenario 2: Charging a Smartphone. The power outlet in your wall provides Alternating Current (a.c.). Your phone's charger, which is technically a "power adapter," contains a small circuit board with a rectifier. This rectifier converts the a.c. from the wall into the d.c. that your phone's battery needs to charge. The d.c. then flows into the battery, driving a chemical reaction that stores energy for later use. All the internal components of your phone, from the processor to the screen, also run on carefully regulated d.c. power supplied by the battery.
Common Mistakes and Important Questions
Q: Is the current from a car battery AC or DC?
A car battery provides Direct Current (d.c.). It is a 12 V d.c. source used to start the engine, power the headlights, and run the radio and other electronics. The car's alternator produces a.c. while the engine is running, but it is immediately converted to d.c. by a built-in rectifier to recharge the battery and power the d.c. systems.
Q: Why can't we use AC for charging a phone battery directly?
Phone batteries are electrochemical devices that store energy through chemical reactions. These reactions are directional; they require a constant, one-way flow of electrons (d.c.) to charge properly. If Alternating Current, which changes direction 50-60 times per second, were applied directly, it would cause constant, rapid reversal of the chemical reactions, leading to inefficient charging, extreme heat, and potentially damaging the battery or causing a fire.
Q: A common mistake is to think current flows from positive to negative. What is actually flowing?
This is an excellent point of confusion. The convention of "current flow" from positive to negative is called conventional current and was established before the discovery of the electron. Physically, in a typical metallic wire, it is negatively charged electrons that flow. They flow from the negative terminal (where there is an excess of electrons) to the positive terminal (where there is a deficiency of electrons). So, the physical electron flow is opposite to the conventional current flow. For most circuit analysis, we use the conventional current model because the mathematical results are the same, but it's important to know the underlying physics.
Conclusion
Direct Current is the steady, reliable heartbeat of the modern electronic world. From the humble battery in a wall clock to the complex power distribution systems in electric vehicles and spacecraft, d.c. provides the stable and controllable power source that digital technology demands. Its simple, unidirectional nature makes it the foundation upon which all basic electronics are built. By understanding the principles of d.c., how it is generated through batteries, solar cells, and rectifiers, and how it behaves according to Ohm's Law, we gain a fundamental insight into the technology that powers our daily lives. The next time you turn on a flashlight or charge your phone, you'll know the silent, one-way journey of Direct Current that makes it all possible.
Footnote
1 Ohm's Law: A fundamental principle in electrical engineering stating that the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them.
2 LED (Light-Emitting Diode): A semiconductor light source that emits light when current flows through it. LEDs are polarized, meaning they only allow current to flow in one direction, making them natural components for d.c. circuits.
