Potential Difference: The Driving Force of Electric Circuits
What Exactly is Potential Difference?
Imagine you are holding a ball at the top of a hill. The ball has the potential to roll down and do something, like knock over a pin at the bottom. The steeper and higher the hill, the more potential energy the ball has. In electricity, potential difference works in a very similar way. It's the "electrical push" that makes electric charges move.

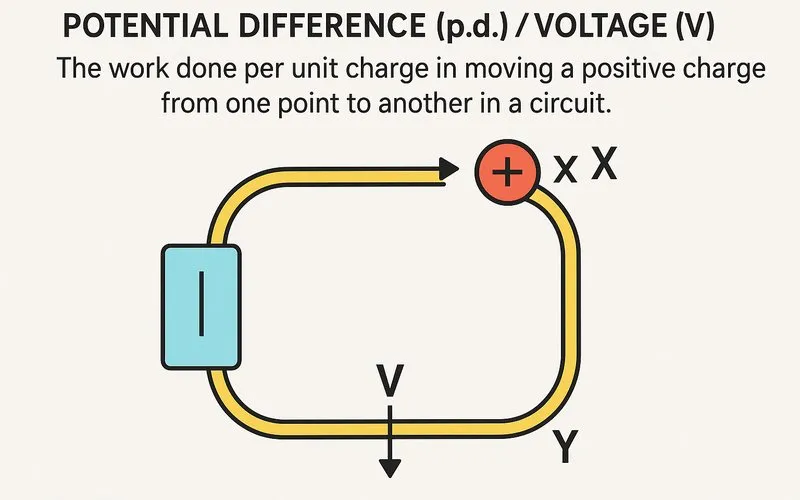

The formal definition is: Potential Difference is the work done per unit charge in moving a positive charge from one point to another. Let's break this down:
- Work Done: In science, work means transferring energy. So, moving a charge requires energy.
- Per Unit Charge: We measure this work for a single, standard amount of charge. The standard unit of charge is the Coulomb (C).
- Moving a Positive Charge: By convention, we think about the movement of positive charges, even though in most wires it's negative electrons that actually move.
This relationship gives us a very important formula:
$ V = \frac{W}{Q} $
Where:
$ V $ = Potential Difference (Voltage) in Volts (V)
$ W $ = Work Done in Joules (J)
$ Q $ = Charge in Coulombs (C)
This means that if 1 Joule of work is done to move a charge of 1 Coulomb between two points, the potential difference between those points is 1 Volt.
The Water Analogy: Making Sense of Voltage
One of the best ways to understand electrical concepts is by comparing them to something familiar, like water flowing in pipes.
| Electrical Concept | Water Analogy | Description |
|---|---|---|
| Electric Charge | Water | The substance that flows. |
| Electric Current (I) | Water Flow Rate | The amount of water (or charge) flowing per second. |
| Potential Difference / Voltage (V) | Water Pressure | The push or force that causes the water (or charge) to flow. |
| Resistance (R) | Narrowness of the Pipe | Something that opposes the flow of water (or charge). |
| Battery | Water Pump | Creates the pressure difference (voltage) to maintain the flow. |
So, a battery is like a water pump. It doesn't create the water (charges), but it creates a pressure difference (voltage) that pushes the water (current) through the pipes (wires). A higher voltage is like a more powerful pump, creating more pressure and a stronger flow.
Voltage, Current, and Resistance: Ohm's Law
Potential difference doesn't exist in isolation. It has a direct relationship with two other key players in a circuit: current and resistance. This relationship is described by one of the most important laws in electricity: Ohm's Law.
$ V = I \times R $
Where:
$ V $ = Potential Difference (Voltage) in Volts (V)
$ I $ = Electric Current in Amperes (A)
$ R $ = Electrical Resistance in Ohms (Ω)
This formula tells us that the voltage across a conductor is directly proportional to the current flowing through it, provided the resistance remains constant. In simpler terms:
- If you increase the voltage (push), the current (flow) will increase, assuming the resistance (narrowness) stays the same.
- If you increase the resistance, the current will decrease for the same voltage.
This is why a thin, long filament in a light bulb has high resistance. When current is pushed through it by the voltage, the high resistance causes the filament to heat up so much that it glows, producing light.
Measuring and Seeing Voltage in Action
Voltage is measured using a tool called a voltmeter. To measure the voltage across a component like a light bulb, a voltmeter must be connected in parallel with it. This means you connect the voltmeter's probes to the two points on either side of the component.
Let's look at some real-world examples of different voltage levels:
| Voltage Source | Typical Voltage | What It Powers |
|---|---|---|
| AA/AAA Battery | 1.5 V | Remote controls, toys, flashlights. |
| USB Port | 5 V | Charging phones, powering small devices. |
| Car Battery | 12 V | Starter motor, headlights, car stereo. |
| Household Outlets (USA) | 120 V | Refrigerators, TVs, lamps, computers. |
| High-Voltage Power Lines | 100,000 - 500,000 V | Long-distance transmission of electrical energy. |
Common Mistakes and Important Questions
Q: Is voltage the same as current?
No, this is a very common confusion. Using the water analogy, voltage is the water pressure, while current is the flow rate of the water. You can have high pressure (voltage) with very little flow (current), like a tightly closed high-pressure tap. Similarly, you can have a large flow (current) with low pressure (voltage), like a wide, slow-moving river.
Q: Does voltage get "used up" in a circuit?
Not exactly. Voltage is better thought of as being dropped or spent across components. In a simple circuit with multiple components, the total voltage from the battery is shared among them. For example, if two identical light bulbs are connected in series to a 6 V battery, each bulb might have a voltage drop of 3 V across it. The energy carried by the voltage is converted into other forms like light and heat.
Q: Why is high voltage dangerous?
High voltage is dangerous because it can "push" a very large current through your body. Your body has a certain resistance. According to Ohm's Law (V = I × R), a very high voltage (V) can force a large and potentially lethal current (I) to flow through you, even if your body's resistance (R) is relatively high. This current can disrupt the electrical signals that control your heart and muscles.
Conclusion
Footnote
1 p.d.: Abbreviation for Potential Difference.
2 Coulomb (C): The standard international (SI) unit of electric charge. One Coulomb is equivalent to the charge of approximately 6.242 × 10^18 electrons.
3 Joule (J): The standard international (SI) unit of work or energy.
4 Volt (V): The standard international (SI) unit of potential difference and electromotive force. Defined as 1 Joule per Coulomb.
5 Ohm's Law: A fundamental law in electrical engineering and physics, stating that the current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them.
