Electromotive Force: The Battery's Driving Power
What Exactly is Electromotive Force?

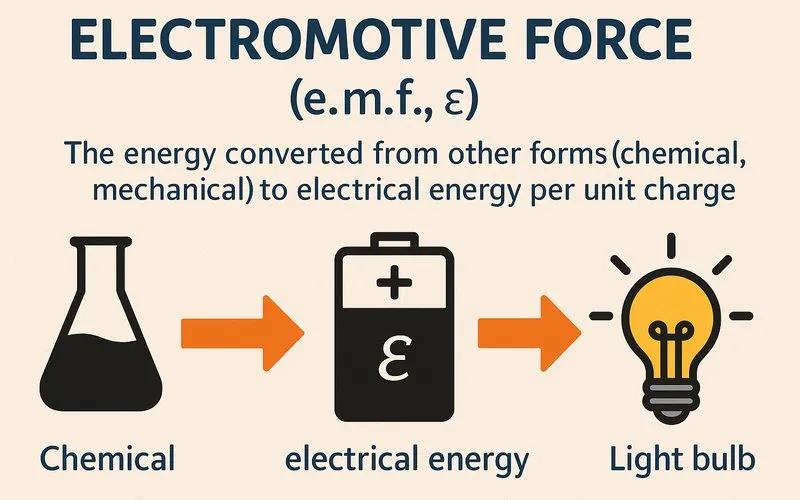

Imagine you are at the top of a water slide. The height of the slide gives you the potential to slide down. Electromotive force (e.m.f.) is like that initial push or the "electrical height" for electrons in a circuit. It's the energy provided by a source, such as a battery, that makes electrons move. Formally, it is defined as the energy converted from other forms (like chemical or mechanical) to electrical energy per unit charge. The unit for e.m.f., just like for voltage, is the volt (V). One volt means one joule (J) of energy is transferred per coulomb (C) of charge.
Where:
ε = Electromotive force (in volts, V)
E = Energy converted from non-electrical to electrical form (in joules, J)
Q = Electric charge (in coulombs, C)
For example, if a battery converts 18 J of chemical energy to move 3 C of charge through the entire circuit, the e.m.f. of the battery is ε = 18 J / 3 C = 6 V.
Sources of Electromotive Force
E.M.F. is generated by converting different types of energy into electrical energy. Here are the most common sources:
| Source Type | Energy Conversion | Common Examples |
|---|---|---|
| Chemical | Chemical Energy → Electrical Energy | Batteries (AA, AAA, car battery), Fuel Cells |
| Electromagnetic (Mechanical) | Mechanical Energy → Electrical Energy | Generators, Dynamos, Power Plants |
| Photovoltaic | Light Energy → Electrical Energy | Solar Panels, Solar Cells |
| Thermoelectric | Heat Energy → Electrical Energy | Thermocouples (used in thermometers) |
| Piezoelectric | Mechanical Stress → Electrical Energy | Piezoelectric lighters, Microphones |
E.M.F. vs. Terminal Voltage: A Critical Distinction
A common point of confusion is thinking that the e.m.f. of a battery is the same as the voltage you measure across its terminals. They are related but not identical. The e.m.f. (ε) is the maximum potential difference a source can provide when no current is flowing. However, all real-world power sources have an internal resistance (r).
When current (I) flows, some energy is lost as heat within the source due to this internal resistance. The voltage that is actually available to the external circuit is called the terminal voltage (V). It is always less than the e.m.f. when the circuit is on.
Where:
V = Terminal Voltage (in volts, V)
ε = Electromotive Force (in volts, V)
I = Current flowing in the circuit (in amperes, A)
r = Internal resistance of the source (in ohms, Ω)
Analogy: Think of a water pump (the battery) that has to push water through its own narrow, rusty pipes (internal resistance) before the water gets to the main, smooth pipes (the external circuit). The pump's maximum pressure is the e.m.f. The pressure that actually makes it to the main pipes is the terminal voltage, which is lower because some pressure is lost overcoming the rust in the pump's own pipes.
Measuring E.M.F. in a Simple Circuit
Let's see how e.m.f. and terminal voltage work in a real scenario. Suppose you have a circuit with a 6 V battery (its e.m.f.), which has an internal resistance of 0.5 Ω, connected to a light bulb with a resistance of 11.5 Ω.
- Calculate the Total Resistance: R_total = r + R = 0.5 Ω + 11.5 Ω = 12 Ω
- Calculate the Current: Using Ohm's Law (V = I * R), but with e.m.f.: ε = I * R_total. So, I = ε / R_total = 6 V / 12 Ω = 0.5 A.
- Calculate the Terminal Voltage: This is the voltage across the light bulb. V = ε - I * r = 6 V - (0.5 A * 0.5 Ω) = 6 V - 0.25 V = 5.75 V.
You could also calculate it using the bulb's resistance: V = I * R = 0.5 A * 11.5 Ω = 5.75 V.
This shows that while the battery's potential is 6 V, the bulb only receives 5.75 V to use. The remaining 0.25 V is "lost" inside the battery.
E.M.F. in Action: From Flashlights to Power Grids
Electromotive force is not just a textbook idea; it's the reason our electronic world works.
Simple Flashlight: A chemical reaction inside the battery creates an e.m.f., say 1.5 V. This e.m.f. pushes electrons through the circuit, which includes the switch, wires, and the bulb. The energy carried by these electrons is converted into light and heat in the bulb's filament. When the battery is "dead," the chemicals are depleted, and it can no longer maintain the e.m.f.
Electric Generator in a Power Plant: This is a large-scale application. A generator uses electromagnetic induction[1] to convert mechanical energy (from falling water in a dam, spinning wind turbines, or steam from burning coal) into electrical energy. The e.m.f. generated here can be thousands of volts. This high e.m.f. is then sent through power lines to our homes and schools. The national power grid is essentially a massive network of e.m.f. sources working together.
Solar-Powered Calculator: The solar cells on the calculator convert light energy from the sun or room lights directly into electrical energy, creating an e.m.f. This small e.m.f. is enough to power the calculator's low-energy display and circuitry.
Common Mistakes and Important Questions
Q: Is electromotive force actually a force?
No, this is a historical misnomer. E.M.F. is not a mechanical force measured in newtons (N). It is an energy per unit charge, which is a potential difference, measured in volts (V). Think of it as the "cause" of the current, while a force is what would "push" on an individual electron.
Q: Why does the voltage of a battery drop when you use it?
There are two main reasons. First, as current flows, the voltage drop due to internal resistance (I * r) means the terminal voltage is lower than the e.m.f. Second, as a battery is used, its chemicals get used up. This often increases the internal resistance (r) and can also slightly reduce the actual e.m.f. (ε) itself, leading to a further drop in the usable terminal voltage.
Q: Can e.m.f. be negative?
Yes, in the context of devices like batteries during charging. When you charge a battery, you are forcing current to flow in the opposite direction. In this case, the battery acts as a load, and the e.m.f. opposes the current flow from the charger. For circuit analysis, we would consider this a negative e.m.f.
Footnote
[1] Electromagnetic Induction: The process of generating an electromotive force (e.m.f.) across an electrical conductor by changing the magnetic field around it. Discovered by Michael Faraday, it is the basic principle behind generators, transformers, and many types of electrical motors.
