Sensors: The Digital Senses
The Fundamental Principles of Sensing
At its core, a sensor is a translator. It takes a physical phenomenon from the real world and translates it into a language that machines, primarily computers and microcontrollers, can understand. This process almost always involves a change in an electrical property. Think of it like your own senses: your eyes detect light and send electrical signals to your brain. Sensors do the same for machines.
The basic operation of most sensors follows a simple three-step process:
- Detection: The sensor's sensitive element is exposed to a physical property (e.g., heat, force, light).
- Transduction: This is the key step. The physical property is converted, or transduced, into an electrical signal. For example, a temperature sensor might change its electrical resistance as it gets hotter.
- Output: The resulting electrical signal (voltage, current, or resistance) is sent to a display, a computer, or another device for interpretation and action.
A World of Different Sensors

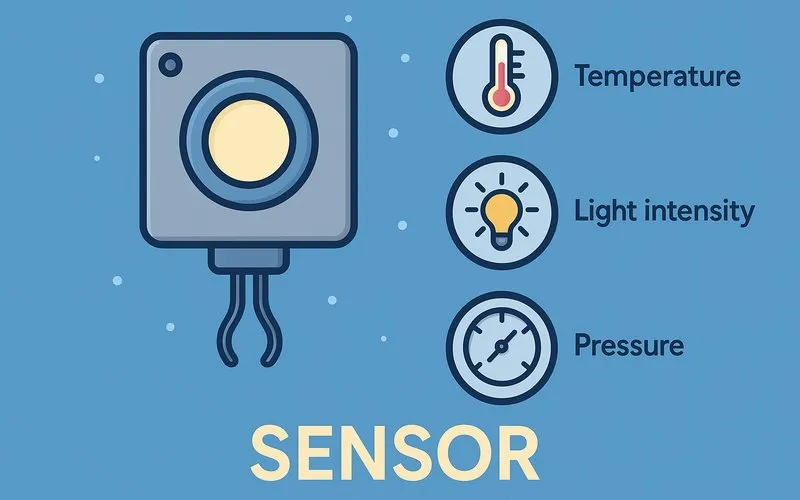

Sensors are categorized based on the physical property they measure. The variety is immense, but they can be grouped into several major families. Each type uses a different physical principle to achieve transduction.
| Sensor Type | Measures | How It Works (Simplified) | Common Example |
|---|---|---|---|
| Thermistor | Temperature | Its electrical resistance changes predictably with temperature. | Digital thermometer, car engine coolant sensor |
| Photoresistor (LDR) | Light Intensity | Its resistance decreases when light shines on it. | Street lights that turn on automatically at dusk |
| Strain Gauge | Force / Pressure | When stretched or compressed, its electrical resistance changes. | Digital weighing scale, pressure sensor in a water pipe |
| Accelerometer | Tilt, Vibration, Acceleration | Uses microscopic crystals that generate a voltage when stressed by accelerating forces. | Smartphone screen rotation, pedometer, car airbag trigger |
| Microphone | Sound | A diaphragm vibrates with sound waves, generating a changing electrical voltage. | Voice recording, noise-activated devices |
From Sensing to Action: A Smartphone's Journey
Let's follow a concrete example to see how multiple sensors work together in a device you use every day: a smartphone. Imagine you're going for a walk to listen to music.
You pick up your phone. The proximity sensor detects that something is near the screen, preventing accidental touches. The ambient light sensor measures the brightness of your surroundings and automatically adjusts the screen's brightness to save battery and be easy on your eyes. You unlock the phone using your fingerprint, which is read by a biometric sensor. As you start your music app, the accelerometer and gyroscope detect that you have begun walking. Your fitness app uses this data to count your steps. You rotate the phone to watch a video, and the accelerometer and gyroscope tell the software to switch the screen to landscape mode. During your walk, the GPS (Global Positioning System) [2] receiver is constantly communicating with satellites to track your exact location and map your route. All of these sensors are working in harmony, collecting data that allows the phone's software to provide a seamless and interactive experience.
Common Mistakes and Important Questions
Is a sensor the same as a transducer?
Almost, but not exactly. All sensors are transducers because they convert energy. However, not all transducers are sensors. A motor, for example, is a transducer that converts electrical energy into mechanical motion, but it is not measuring anything, so it is not a sensor. A sensor is specifically a transducer used for measurement.
What is the difference between analog and digital sensors?
An analog sensor produces a continuous output signal (like a smooth curve representing temperature change over time). A digital sensor produces a discrete, binary output (a series of 0s and 1s). Most modern systems use analog sensors but include an Analog-to-Digital Converter (ADC)[3] to translate the smooth analog signal into the digital numbers a computer can process.
Can sensors make mistakes?
Yes. Sensors can be affected by their environment in ways that lead to inaccurate readings, a concept known as error. For instance, a temperature sensor might be affected by heat from a nearby component instead of the air it's supposed to be measuring. This is why high-precision systems often use multiple sensors and complex software to correct for these errors.
Conclusion
Footnote
[1] IoT (Internet of Things): A network of physical objects ("things") that are embedded with sensors, software, and other technologies for the purpose of connecting and exchanging data with other devices and systems over the internet.
[2] GPS (Global Positioning System): A satellite-based navigation system that provides location and time information anywhere on or near the Earth.
[3] ADC (Analog-to-Digital Converter): An electronic circuit that converts a continuous analog signal (like voltage) into a discrete digital number that represents the signal's magnitude.
