Understanding Amplitude: The Power of a Wave
What is Amplitude in Simple Terms?
Imagine you are gently pushing a friend on a swing. When you give a small push, they swing back and forth a little. When you give a big, strong push, they swing much higher. In this scenario, how high your friend swings from the resting, middle position is very similar to the idea of amplitude.
In scientific terms, amplitude is defined as the maximum distance a particle moves from its central, or equilibrium, position. This central position is the spot where the particle would naturally rest if it weren't moving. Think of it as the "calm center" of the motion. When we talk about waves, like sound waves or waves on a string, we are talking about many particles all oscillating around their own equilibrium positions. The amplitude tells us the "size" or "strength" of that back-and-forth motion.
Visualizing Amplitude in Different Waves
Waves can be represented graphically to help us understand their properties. A very common way is to use a graph that shows how the displacement of a particle changes over time, or how the displacement varies from one particle to the next along the wave's path.
| Wave Property | Symbol | Description | Relation to Amplitude |
|---|---|---|---|
| Amplitude | $A$ | Maximum displacement from equilibrium. | The property itself. |
| Wavelength | $\lambda$ | Distance between two successive crests. | Independent of amplitude. |
| Frequency | $f$ | Number of oscillations per second. | Independent of amplitude. |
| Energy | $E$ | The capacity to do work or cause an effect. | Directly proportional to $A^2$. |

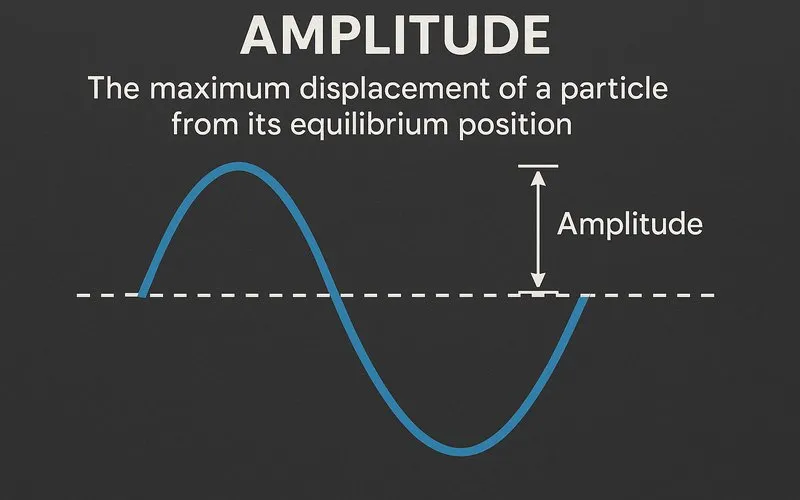

On a displacement-distance graph (a snapshot of the wave at one moment in time), the amplitude is the height from the center line (equilibrium) to the very top of a crest or the very bottom of a trough. A wave with a tall crest and a deep trough has a large amplitude. A wave with shallow crests and troughs has a small amplitude.
Amplitude in Action: Real-World Examples
The concept of amplitude is not just a theory in a physics book; it explains many things we experience every day. Let's look at some concrete examples.
Sound Waves: When you listen to music, the amplitude of the sound waves is what you perceive as loudness. A guitar string that is plucked gently vibrates with a small amplitude, producing a soft sound. When the same string is plucked forcefully, it vibrates with a large amplitude, creating a much louder sound. The energy carried by the sound wave is greater when the amplitude is larger, which is why a loud concert feels more powerful than a whispered secret. The unit for measuring sound amplitude or intensity is the decibel (dB)[1].
Light Waves: In the case of light, which is an electromagnetic wave, the amplitude is related to its brightness or intensity. A dim lightbulb emits light waves with a smaller amplitude than a bright, powerful spotlight. Your phone screen on its lowest brightness setting produces light waves with less amplitude than when it is on the highest setting.
Water Waves: If you drop a small pebble into a calm pond, it creates ripples with a small amplitude—the water level only moves up and down a little bit. If you throw a large rock into the same pond, the ripples will have a much larger amplitude, causing the water to splash higher and lower from the calm surface. In the ocean, the amplitude of a wave is essentially the wave height from the trough to the crest, which is a critical measurement for sailors and surfers.
Earthquakes: The seismic waves generated by an earthquake also have amplitude. The maximum amplitude of these waves, as measured by a seismograph, is a key factor in determining the magnitude of the earthquake on the Richter scale[2]. A small tremor has seismic waves with low amplitude, while a major quake has waves with very high amplitude, causing much greater ground shaking and destruction.
Common Mistakes and Important Questions
Q: Is amplitude the same as the total distance traveled by a particle?
A: No, this is a very common mistake. Amplitude is only the maximum displacement from the center. In one complete cycle, a particle in simple harmonic motion actually travels a total distance of 4 times the amplitude ($4A$). It goes from the center to one crest (distance $A$), back to the center ($A$ more), down to the trough ($A$ more), and finally back to the center ($A$ more), for a total of $4A$.
Q: Does a higher amplitude change the pitch of a sound or the color of light?
A: No. The amplitude affects the loudness of a sound and the brightness of light. The pitch of a sound is determined by the frequency ($f$) of the wave, and the color of light is also determined by its frequency (or wavelength, $\lambda$). You can have a high-pitched, quiet sound (high frequency, low amplitude) and a high-pitched, loud sound (high frequency, high amplitude). They are independent properties.
Q: Can amplitude be negative?
A: Amplitude itself is defined as a maximum distance, so it is always a positive quantity. However, when we describe the displacement of a particle at a specific moment, that displacement can be positive (above equilibrium) or negative (below equilibrium). The amplitude is the magnitude of that displacement at its extreme points, ignoring the direction.
Footnote
[1] dB (decibel): A logarithmic unit used to measure the intensity of sound. It is a relative measure, often comparing a sound's pressure level to a reference value.
[2] Richter scale: A logarithmic scale used to quantify the magnitude of an earthquake. Each whole number increase on the scale represents a tenfold increase in the amplitude of the seismic waves and approximately 31.6 times more energy release.
