Longitudinal Wave: The Push-Pull Energy Traveler
What Makes a Wave Longitudinal?
To understand a longitudinal wave, it's helpful to first think about what a wave is. A wave is a disturbance that travels through space and matter, transferring energy from one place to another without permanently moving the matter itself. Imagine a crowd doing "the wave" in a stadium; people stand up and sit down (they oscillate), and the pattern moves around the stadium, but no one actually changes seats. The energy moves, not the people.

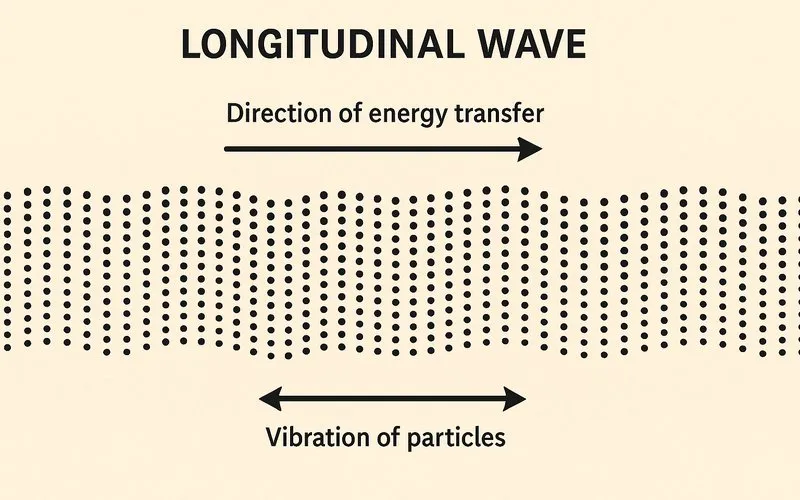

Longitudinal waves are a specific category where the particles of the medium (the material the wave travels through) vibrate parallel to the direction of energy transfer. This means if the wave is moving to the right, the particles are also jiggling back and forth to the right and left. This is different from a transverse wave, like a wave on a string, where the particles move up and down, perpendicular to the direction the wave travels.
Anatomy of a Longitudinal Wave: Compressions and Rarefactions
The parallel vibration of particles creates a very specific pattern in the medium. This pattern is not a crest and trough like in a transverse wave, but rather areas of high pressure and low pressure.
- Compression: This is a region where the particles are pushed close together. The medium is at its highest density and pressure in these zones. It's like squeezing a slinky's coils tightly.
- Rarefaction: This is a region where the particles are spread far apart. The medium is at its lowest density and pressure here. It's like stretching a section of the slinky so the coils are loose.
A single longitudinal wave is made up of one compression and one rarefaction. As the wave travels, it continuously creates these patterns, pushing and pulling the medium.
| Feature | Longitudinal Wave | Transverse Wave |
|---|---|---|
| Particle Vibration | Parallel to wave direction | Perpendicular to wave direction |
| Characteristic Regions | Compressions and Rarefactions | Crests and Troughs |
| Medium Required | Yes (Solid, Liquid, Gas) | Yes for mechanical waves (e.g., water, string), No for electromagnetic waves |
| Primary Example | Sound in air | Light, Ripples on water |
The Science of Sound: A Classic Longitudinal Wave
Sound is the most common example of a longitudinal wave. When you speak, your vocal cords vibrate. This vibration pushes and pulls on the air molecules next to them. When your vocal cords push forward, they squeeze air molecules together, creating a compression. When they pull back, they leave a space with fewer air molecules, creating a rarefaction.
This chain reaction continues through the air, from one molecule to the next, all the way to your friend's ear. The compressions and rarefactions hit their eardrum, causing it to vibrate, and their brain interprets these vibrations as sound. It's a domino effect of pushes and pulls! The speed of a sound wave depends on the medium: it travels faster in solids than in liquids, and faster in liquids than in gases, because the particles in solids are closer together and can transfer the push-pull energy more efficiently.
The properties of a sound wave are directly related to its longitudinal nature. The frequency (how many compressions pass a point per second) determines the pitch. A high frequency means a high pitch. The amplitude (how much the particles are compressed or rarefied) determines the loudness. A larger compression means a louder sound.
Seeing the Unseeable: Modeling a Longitudinal Wave
Since we can't see sound waves, we often use a slinky to model them. If you and a friend stretch a slinky along the floor and you give your end a sharp push and pull along its length, you will see a pulse travel to the other end.
- When you push, you create a compression—a region where the slinky's coils are squeezed together.
- When you pull back, you create a rarefaction—a region where the coils are stretched apart.
This compression-rarefaction pair travels the length of the slinky. If you continuously push and pull, you will create a continuous longitudinal wave. This model perfectly illustrates how the energy is transferred from your hand to your friend's hand via the slinky's coils vibrating parallel to the direction of travel.
Longitudinal Waves in Action: From Earthquakes to Medicine
Longitudinal waves are not just about sound; they have crucial applications in many fields.
- Seismology: During an earthquake, different types of seismic waves are produced. Primary waves, or P-waves, are longitudinal waves. They are the fastest seismic waves and are the first to be detected by seismographs. They can travel through the Earth's core, helping scientists understand our planet's internal structure.
- Medical Ultrasound: Ultrasound machines use high-frequency longitudinal sound waves to create images of the inside of the body. A transducer sends these waves into the body. When they hit a boundary between tissues (like between fluid and soft tissue, or soft tissue and bone), some of the waves are reflected back. The machine calculates the distance based on the time it takes for the echo to return, creating an image. This is a safe technology because it uses sound waves instead of radiation.
- Engineering: Non-destructive testing (NDT) uses ultrasonic longitudinal waves to check for cracks or flaws inside metal structures like airplane wings, railway tracks, and pipelines, ensuring they are safe without causing any damage.
Common Mistakes and Important Questions
Q: Do the particles in a longitudinal wave travel all the way from the source to my ear?
A: No, this is a very common misconception. The individual air molecules only vibrate back and forth around a fixed point. It is the energy and the wave pattern of compressions and rarefactions that travels forward. Think of the "stadium wave" again—the people don't leave their seats, but the wave pattern does.
Q: Can longitudinal waves travel in a vacuum?
A: No. Longitudinal waves are mechanical waves, which means they require a medium (solid, liquid, or gas) to travel through. There are no particles to compress and rarefy in a vacuum, so the wave cannot propagate. This is why sound cannot be heard in the emptiness of space.
Q: How do we graphically represent a longitudinal wave if it's a one-dimensional push-pull motion?
A: We use a simplified two-dimensional graph. The horizontal axis represents the direction and distance the wave travels. The vertical axis represents the density or pressure of the medium at that point. On this graph, compressions appear as peaks (high pressure) and rarefactions appear as troughs (low pressure). This looks like a transverse wave, but it's just a plot of the wave's pressure variation over distance, not the actual path of the particles.
Longitudinal waves are a fundamental mechanism of energy transfer in our world. Characterized by particle motion parallel to the direction of travel, they create the distinct patterns of compressions and rarefactions that define sound, seismic P-waves, and medical ultrasound. Understanding this "push-pull" motion helps explain everything from why we can hear each other talk to how scientists probe the depths of the Earth. They are a perfect example of how energy can travel vast distances while the particles carrying it barely move from their original positions.
Footnote
1 P-waves (Primary waves): The fastest type of seismic wave, which are longitudinal in nature and are the first to arrive at a seismograph from an earthquake.
2 Amplitude: The maximum extent of a vibration or oscillation, measured from the position of equilibrium. In a longitudinal wave, it corresponds to the maximum density change in a compression or rarefaction.
3 Frequency: The number of waves that pass a fixed point in unit time, measured in Hertz (Hz). For sound, it is perceived as pitch.
4 Medium: The substance or material that carries the wave, such as air, water, or a solid object.
5 Ultrasound: Sound waves with frequencies higher than the upper audible limit of human hearing (above 20,000 Hz), used in medical imaging and other applications.
